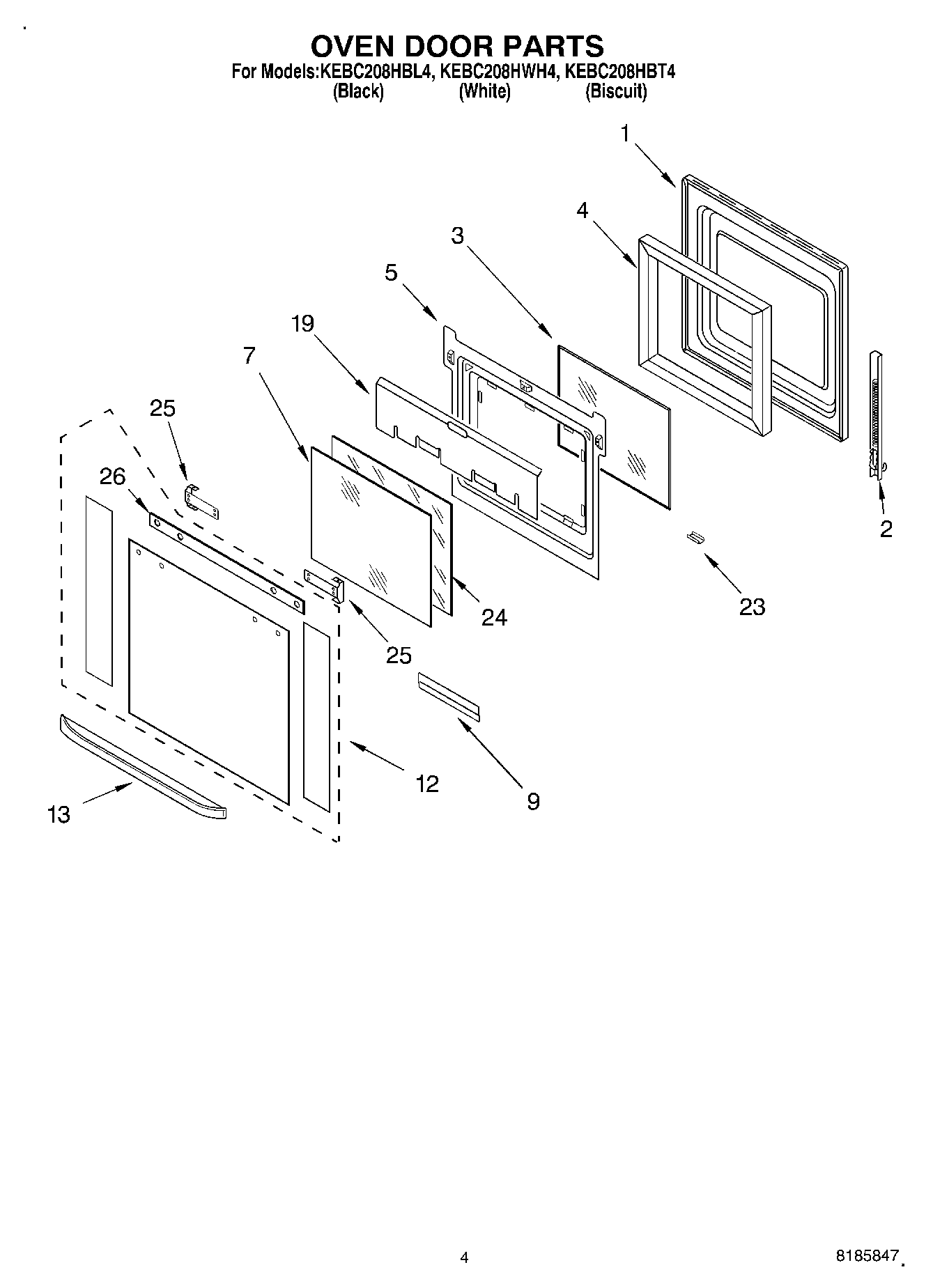

KEBC208HBL4 03 – OVEN DOOR

Products

Position	Product
1	WP9759413 Whirlpool Door Liner
2	HINGE-DOOR LH/SS DOOR SPRING
2	HINGE-DOOR
2	WP4449743 Whirlpool Screw
3	WP4449259 Whirlpool Glass Window
4	WP4451722 Whirlpool Door Insulation Assembly
5	Retainer, Glass
7	WP4449263 Whirlpool Inner Door Glass
9	Retainer, Glass
12	Door Glass, Assy (Black)
12	Door Glass, Assy (White)
12	Door Glass, Assy (Biscuit)
13	Handle, Door (Biscuit)
13	Handle, Door (White)
13	Handle, Door (Black)
19	WP4449809 Whirlpool Screw
19	Shield, Heat
23	Clip, Retainer (White Model)
23	Clip, Retainer (Black Model)
23	RETAINER,GLASS CLIP (BISCUIT)
24	Glass, Inner
25	Bracket, Handle Stainless Steel Model (Left Hand)
25	Screw
25	4455803 Whirlpool Oven Bracket
26	Seal, Door Top
