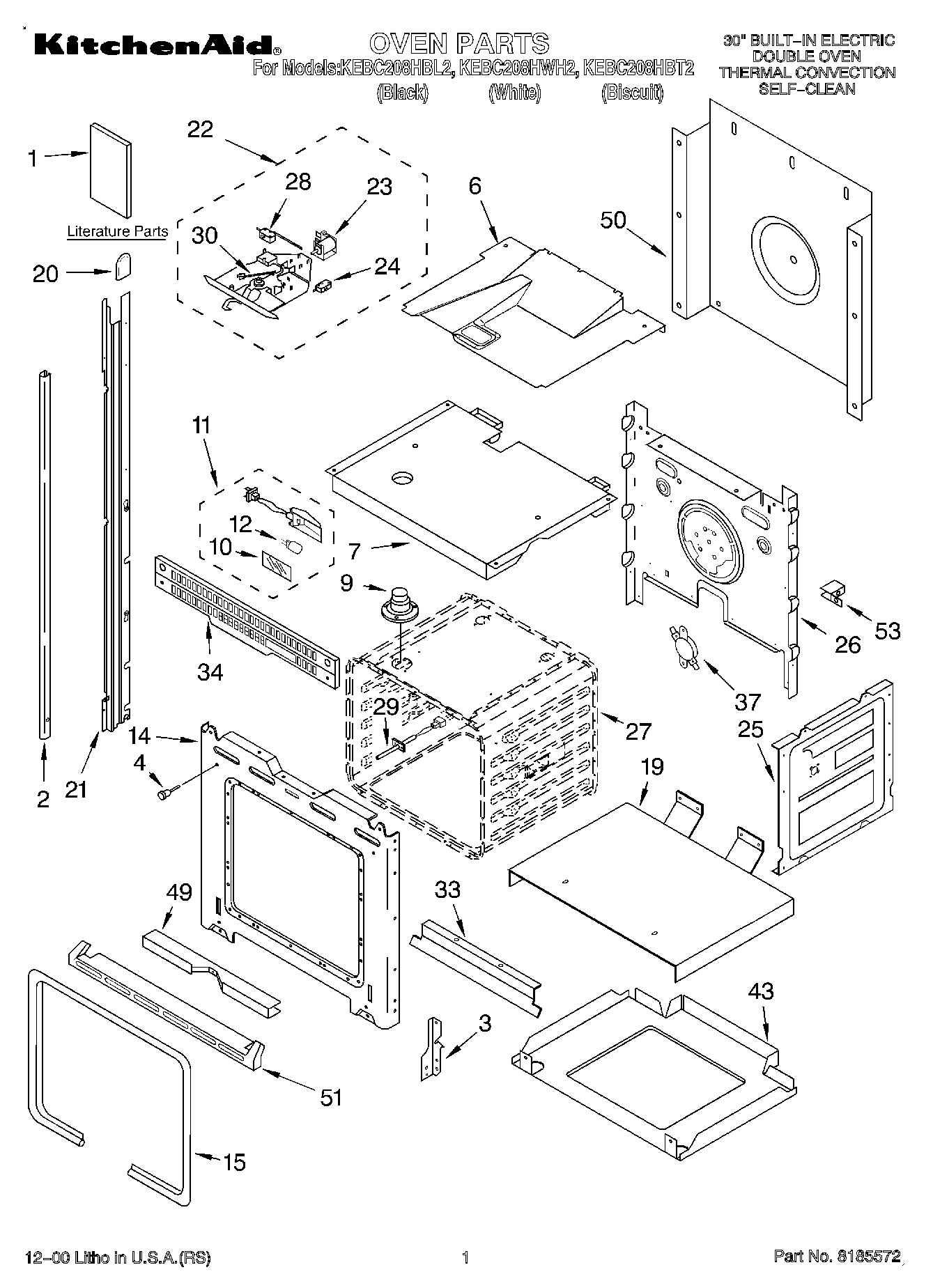

KEBC208HWH2 01 – OVEN, LITERATURE

Products

PositionProduct
1Safer Cooking Tips
1Literature Parts (Easy Set Guide)
1Literature Parts (Tech Sheet (Oven))
1Literature Parts (Installation Instructions)
1Literature Parts (Use & Care Guide)
2WP4455426 Whirlpool Trim
2Trim, Side Left (White)
2Trim, Side Right (White)
2Trim, Side (RH Biscuit)
2Trim, Side (White)
2WP8281236 Whirlpool Screw
2Trim, Side (LH Biscuit)
2Trim, Side (LH Black)
3Reciever, Hinge (Left Hand)
3Reciever, Hinge (Right Hand)
44448520 Whirlpool Oven Bumper
5WP4455509 Whirlpool Support Bracket
6Divider, Vent
7Top, Chassis
9W10861715 Whirlpool Vent Tube
10Lens, Light
11WP4448972 Whirlpool Oven Light
114449748 Whirlpool Oven Screw
12WP4452164 Whirlpool 12V 5W Halogen Light Bulb
14WP4450118 Whirlpool Nut
14Screw
14Frame, Front
15W11675844 Whirlpool Oven Gasket
19Support, Insulation
20Cap, Spacer
21814373 Whirlpool Oven Rail Mount
21WP4448444 Whirlpool Grommet
21814374 Whirlpool Oven Rail Mount
22Latch Assembly
23Solenoid
24Microswitch N.C.
25Side, Chassis (R.H. & L.H.)
26Back, Chassis
27Liner, Oven (Not a Serviceable Part)
28Microswitch
29WPW10131825 Whirlpool Oven Temperature Sensor
30Spring, Latch
339760677 Whirlpool Oven Vent Deflector
34Vent, Center
37WP9759242 Whirlpool Thermostat
43WPL 4455530
49WP4449154 Whirlpool Screw
49WP4448933 Whirlpool Retainer
50WP4451747 Whirlpool Rear Cover
514452152 Whirlpool Oven Mounting Bracket
51WPL 4455445
51WPL 4455443
51WPL 4455447
53WP4449809 Whirlpool Screw
53WPL 4450365
53WPL 4449845
53W11684730 Whirlpool Insulation
