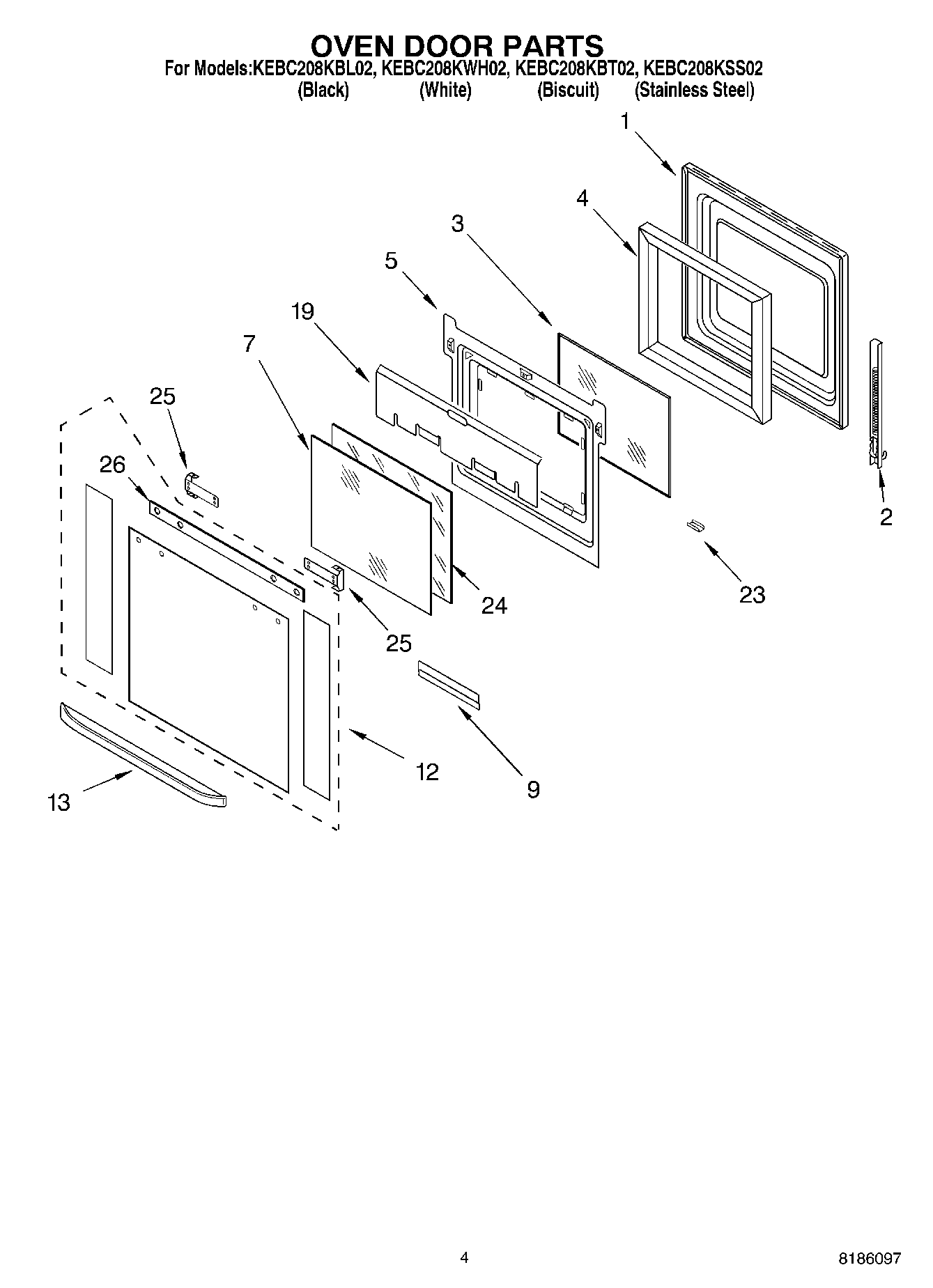

KEBC208KBL02 03 – OVEN DOOR PARTS

Products

Position	Product
	NOTE: The screws and nuts required to attach a part are listed immediately following that part.
1	WP9759413 Whirlpool Door Liner
2	HINGE-DOOR LH/SS DOOR SPRING
2	HINGE-DOOR
2	WP9760577 Whirlpool Oven Right Door Hinge
2	WP4449743 Whirlpool Screw
2	WP9760578 Whirlpool Oven Left Door Hinge
3	WP4449259 Whirlpool Glass Window
4	WP4451722 Whirlpool Door Insulation Assembly
5	Retainer, Glass
7	WP4449263 Whirlpool Inner Door Glass
9	Retainer, Glass
12	Door Glass, Assy (Black)
12	Door Glass, Assy (White)
12	W10401225 Whirlpool Oven Outer Door Glass
12	Door Glass, Assy (Biscuit)
13	Door Handle (Stainless Steel)
13	Handle, Door (Biscuit)
13	Handle, Door (White)
13	Handle, Door (Black)
19	WP4449809 Whirlpool Screw
19	Shield, Heat
23	Retainer, Glass-Clip (Stainless Steel)
23	Clip, Retainer (Black Model)
23	Clip, Retainer (White Model)
23	RETAINER,GLASS CLIP (BISCUIT)
24	Glass, Inner
25	4455803 Whirlpool Oven Bracket
25	Bracket, Handle (L.Hand)
25	WPW10132940 Whirlpool Dishwasher Screw
26	Seal, Door Top
