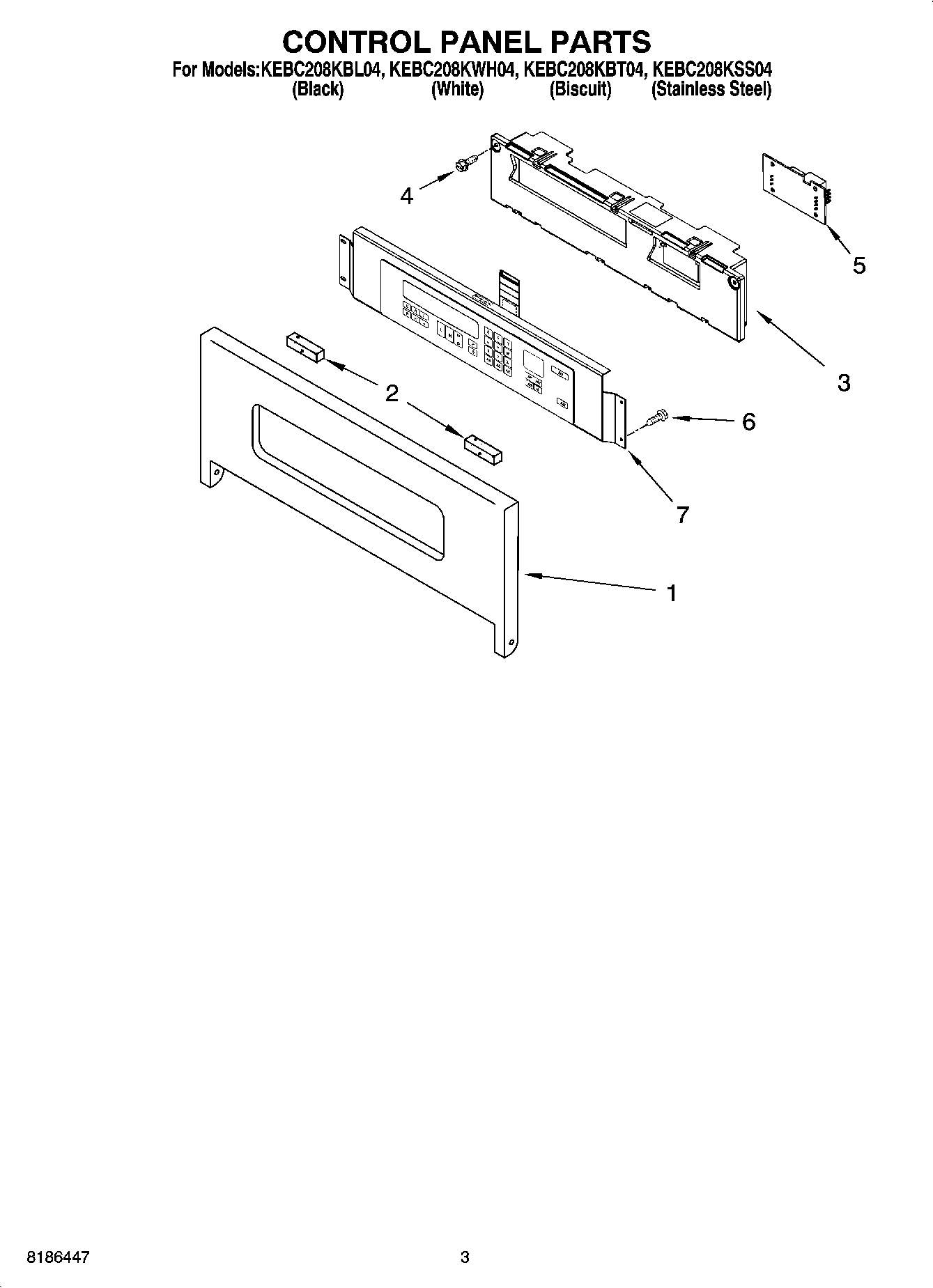

KEBC208KBL04 02 – CONTROL PANEL PARTS

KEBC208KBL04 02 – CONTROL PANEL PARTS

Written by

in

KEBC208KBL04 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Panel, Control (Biscuit)
1Panel, Control (White)
1Panel, Control (Stainless)
1Panel, Control (Black)
2Spacer, Foam
3Assy, Control
4WP4449745 Whirlpool Screw
5Latch, Sister Board
6WP3400832 Whirlpool Screw
7Switch, Membrane (Stainless Steel)
7Switch, Membrane (Biscuit)
7Switch, Membrane (White)
7Switch, Membrane (Black)
