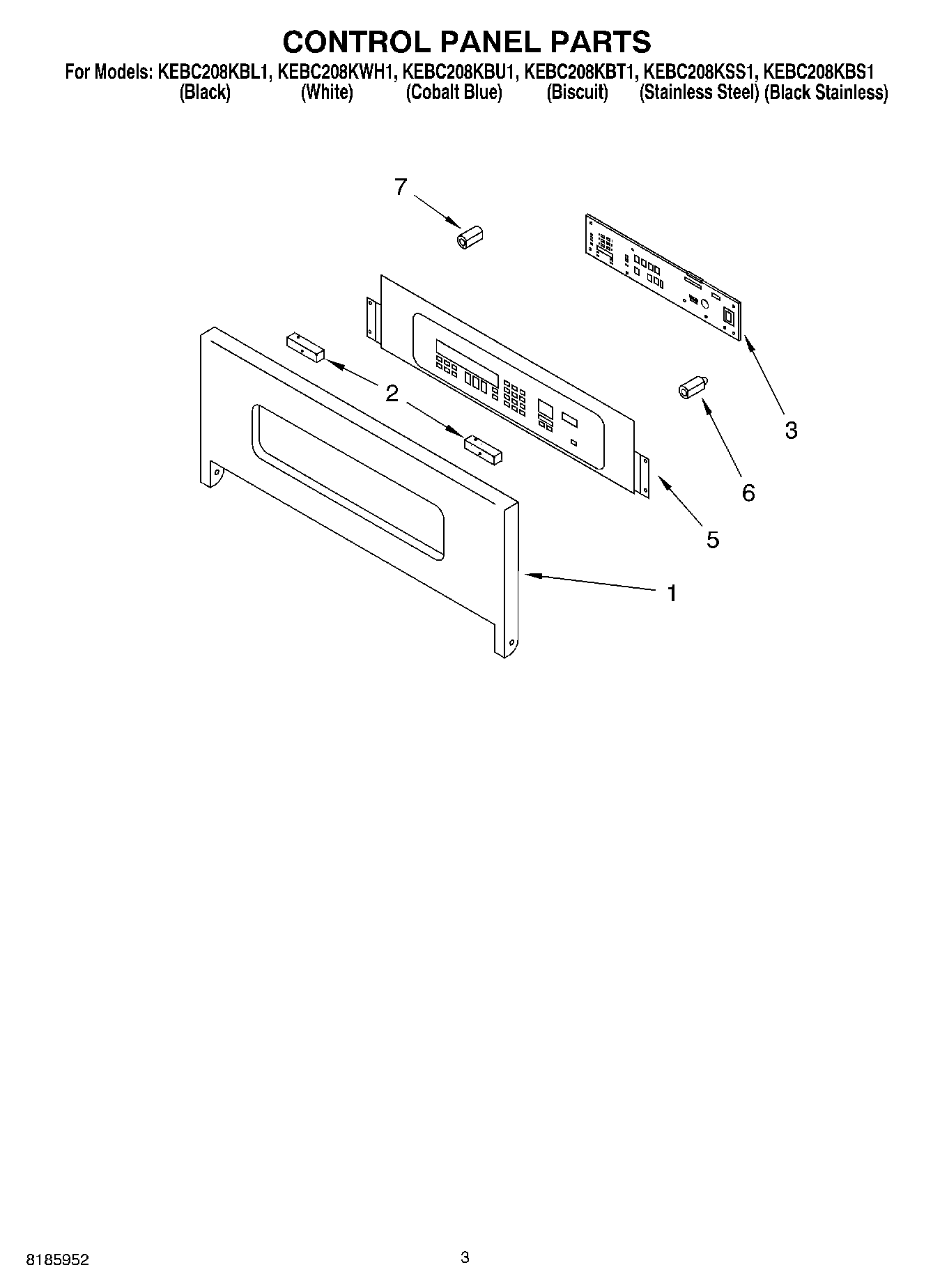

KEBC208KBL1 02 – CONTROL PANEL PARTS

KEBC208KBL1 02 – CONTROL PANEL PARTS

Written by

in

KEBC208KBL1 02 – CONTROL PANEL PARTS

Products

PositionProduct
NOTE: The screws and nuts required to attach a part are listed immediately following that part.
1Panel, Control (Biscuit)
1Panel, Control (White)
1Panel, Control (Stainless)
1Panel, Control (Black)
2Spacer, Foam
3Screw
3Microcomputer
5WP3400832 Whirlpool Screw
5Switch, Membrane (Black)
5Switch, Membrane (White)
5Switch, Membrane (Biscuit)
5Switch, Membrane (Stainless Steel)
6Insulation, Board
7Insulation, Board Support
