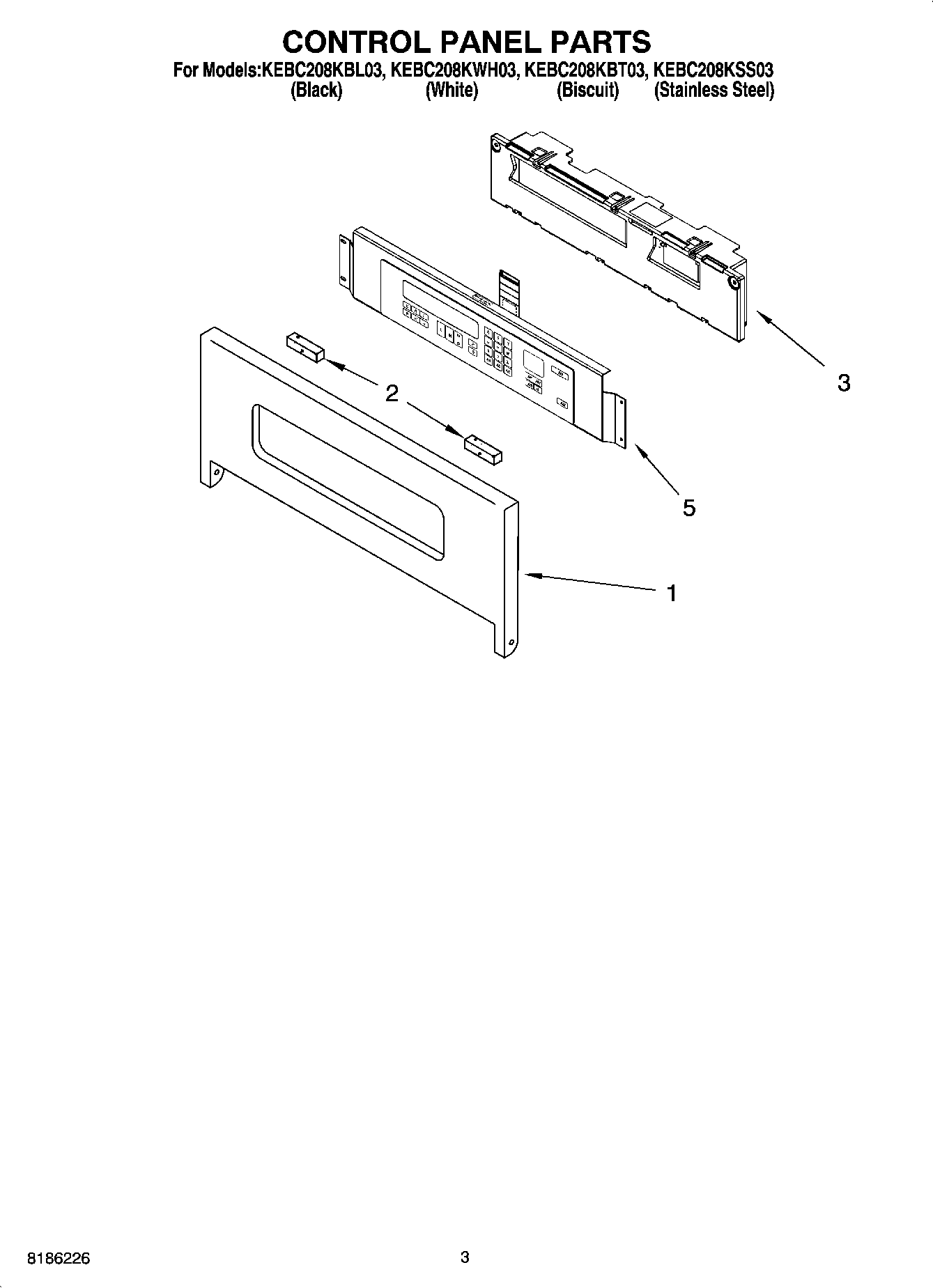

KEBC208KBT03 02 – CONTROL PANEL PARTS

KEBC208KBT03 02 – CONTROL PANEL PARTS

Written by

in

KEBC208KBT03 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Panel, Control (Biscuit)
1Panel, Control (White)
1Panel, Control (Stainless)
1Panel, Control (Black)
2Spacer, Foam
3WP4449745 Whirlpool Screw
3WP3400832 Whirlpool Screw
3Latch, Sister Board
3Assy, Control
5Switch, Membrane (Stainless Steel)
5Switch, Membrane (Biscuit)
5Switch, Membrane (White)
5Switch, Membrane (Black)
