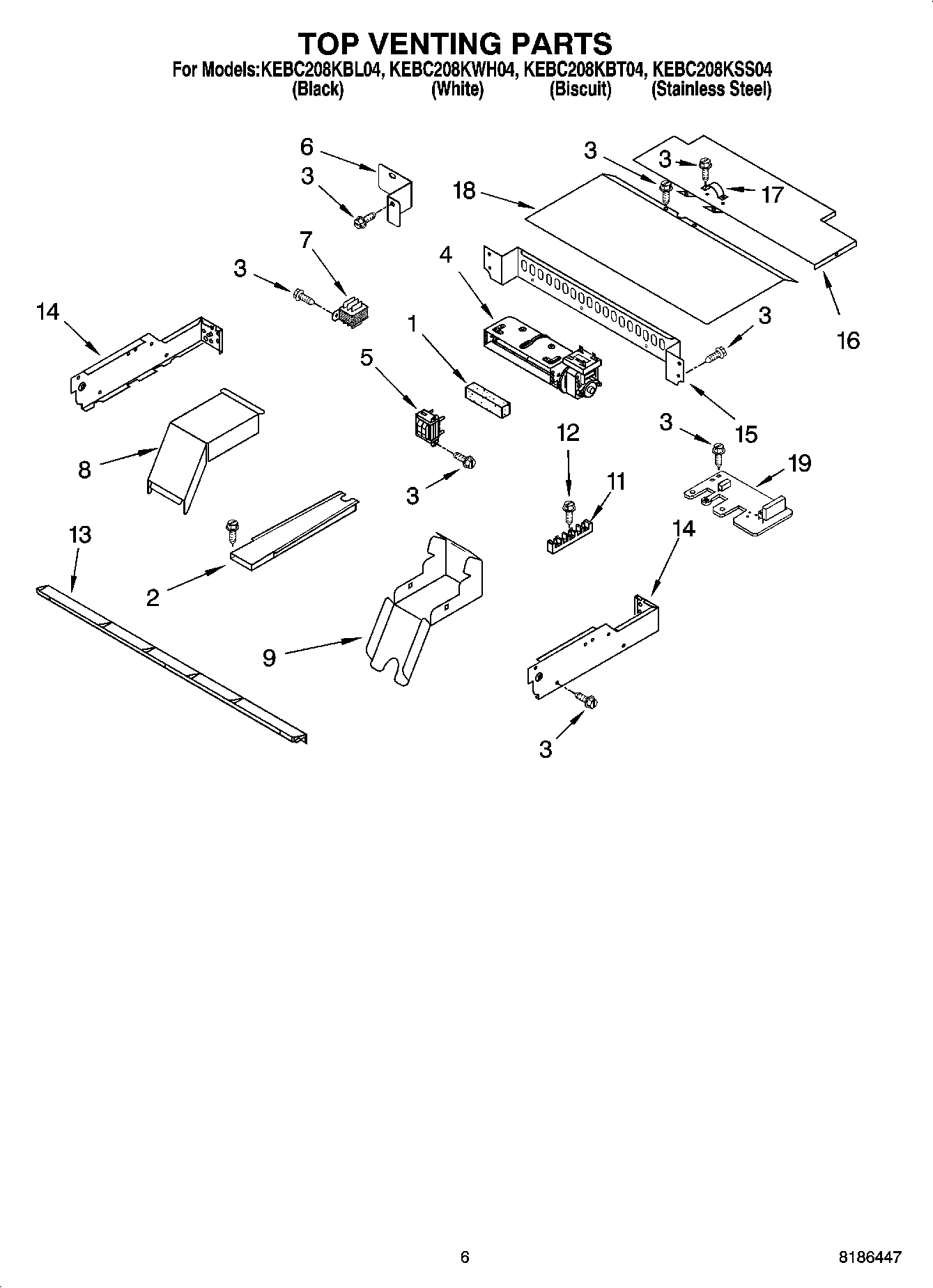

KEBC208KBT04 05 – TOP VENTING PARTS, OPTIONAL PARTS

KEBC208KBT04 05 – TOP VENTING PARTS, OPTIONAL PARTS

Written by

in

KEBC208KBT04 05 – TOP VENTING PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI82111A3
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
WP261869 Whirlpool Microwave Paint
242831 Whirlpool Oven Wire
Wire (14 Ga. 200 c Brown)
1
WPL ARI82110A2
WPL ARI82109A4
WPL 8301871
8301909 Whirlpool Oven Wire Harness
261900 Whirlpool Microwave Spray
WPL ARI82112A1
4451761 Whirlpool Oven Support Bracket
WPL 591014
Spacer, Harness
16515 Whirlpool Clip
WPW10339879 Whirlpool Wire Tie
350930 Whirlpool White Spray Paint
4450800 Whirlpool Oven Screw
72017 Whirlpool Appliance Touch-Up Paint White
WP4449809 Whirlpool Screw
4448664 Whirlpool Oven Mounting Bracket
WP112432 Whirlpool Nut Assembly
Wire, 25` Roll (Red 14 Ga.)
Wire, 25` Roll (Black 14 Ga.)
285006 Whirlpool Spray
72032 Whirlpool Touch Up Paint Black
4452400 Whirlpool Microwave Wire Harness
Conduit, Double
WP4448950 Whirlpool Screw
814381 Whirlpool Pin
WP482338 Whirlpool Refrigerator Adhesive
1W10491987 Whirlpool Foam Seal
24451759 Whirlpool Oven Exhaust Vent
4WPW10016550 Whirlpool Blower Cooling Fan
4WPW10176670 Whirlpool Blower
5WP9760588 Whirlpool Transformer
68302390 Whirlpool Support Bracket
7Transformer, Control
84455178 Whirlpool Oven Top Elbow
94455177 Whirlpool Oven Bottom Elbow
11WP8203546 Whirlpool Terminal Block
12Screw
13Vent, Control Panel
14W10790240 Whirlpool Side Assembly Complete
14W10755214 Whirlpool Side Complete
15Back, Control
16WP4450551 Whirlpool Top Cabinet
18WP4452367 Whirlpool Top Cover
19WP4451985 Whirlpool Noise Filter Board
