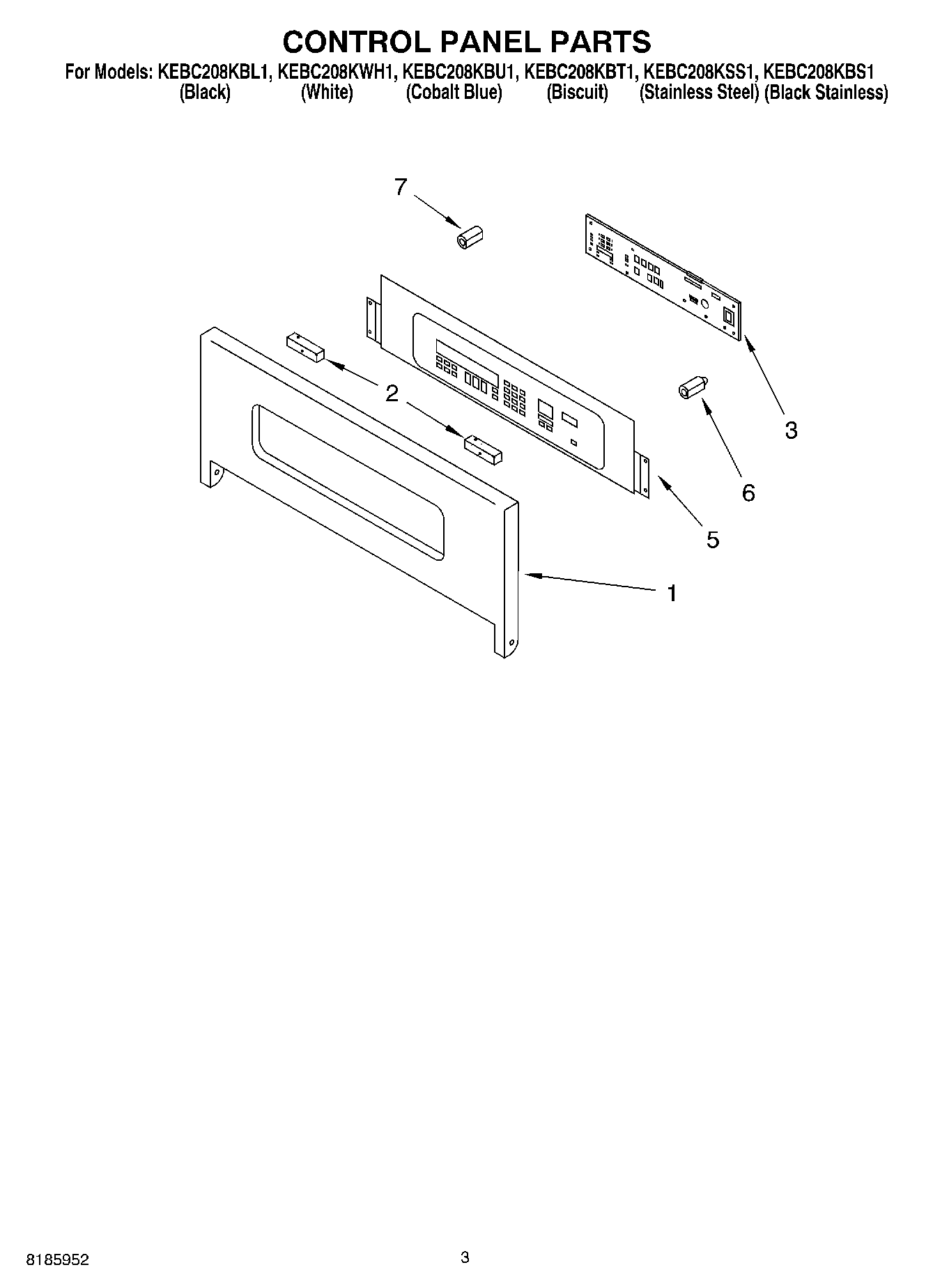

KEBC208KBU1 02 – CONTROL PANEL PARTSadmin2025-04-26T09:49:48+00:00KEBC208KBU1 02 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| NOTE: The screws and nuts required to attach a part are listed immediately following that part. |
| 1 | Panel, Control (Biscuit) |
| 1 | Panel, Control (White) |
| 1 | Panel, Control (Black) |
| 1 | Panel, Control (Stainless) |
| 2 | Spacer, Foam |
| 3 | Microcomputer |
| 3 | Screw |
| 5 | Switch, Membrane (Stainless Steel) |
| 5 | Switch, Membrane (Biscuit) |
| 5 | Switch, Membrane (White) |
| 5 | Switch, Membrane (Black) |
| 5 | WP3400832 Whirlpool Screw |
| 6 | Insulation, Board |
| 7 | Insulation, Board Support |
