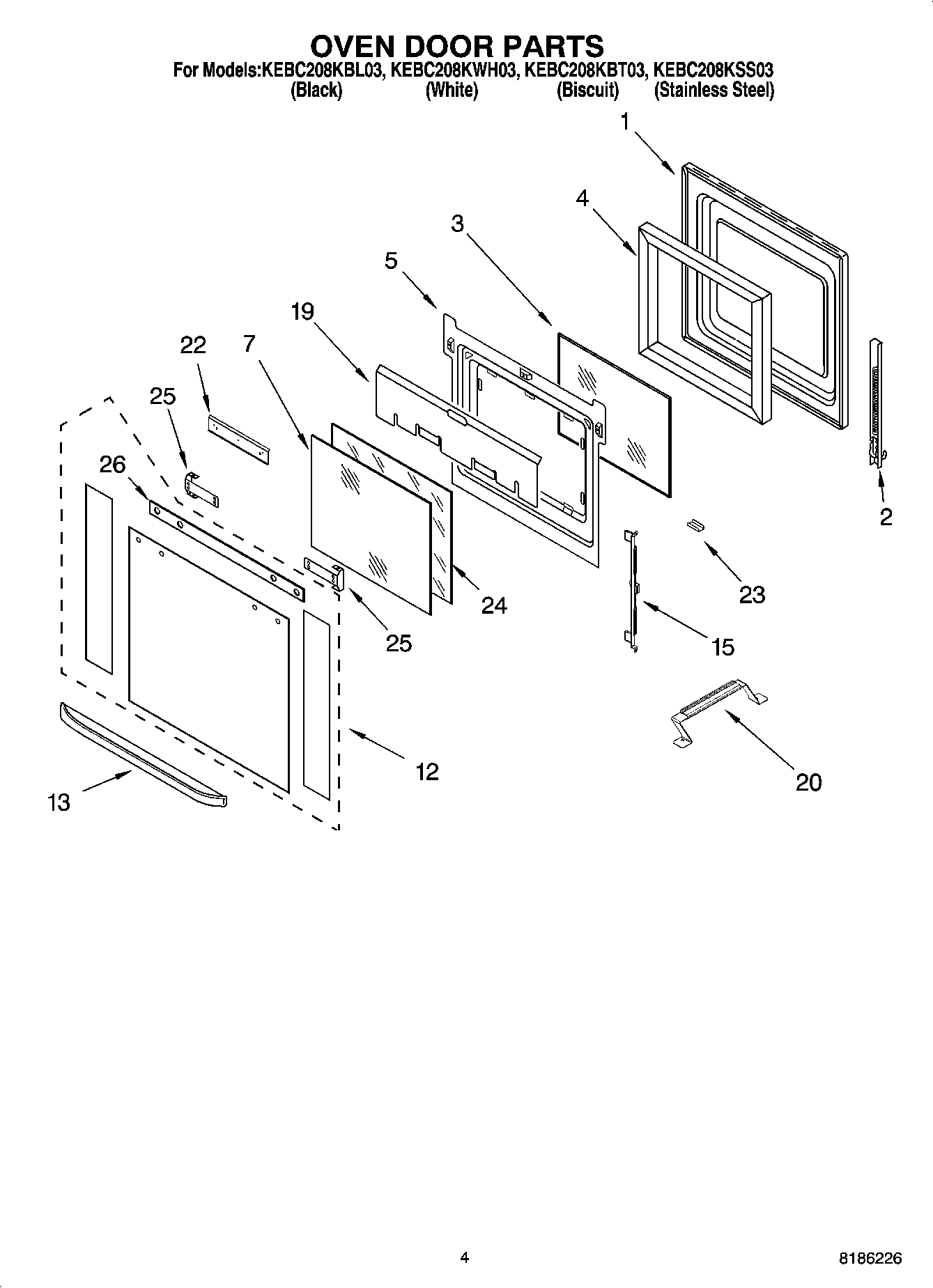

KEBC208KWH03 03 – OVEN DOOR PARTS

Products

Position	Product
1	WP9759413 Whirlpool Door Liner
2	WP9760578 Whirlpool Oven Left Door Hinge
2	HINGE-DOOR LH/SS DOOR SPRING
2	WP4449743 Whirlpool Screw
2	WP9760577 Whirlpool Oven Right Door Hinge
2	HINGE-DOOR
3	WP4449259 Whirlpool Glass Window
4	WP4451722 Whirlpool Door Insulation Assembly
5	WP4457132 Whirlpool Retainer
7	WP9759225 Whirlpool Inner Door Glass
12	Door Glass, Assy (White)
12	Door Glass, Assy (Black)
12	Door Glass, Assy (Biscuit)
12	W10401225 Whirlpool Oven Outer Door Glass
13	Handle, Door (Black)
13	Handle, Door (White)
13	Handle, Door (Biscuit)
13	Door Handle (Stainless Steel)
15	WP9759229 Whirlpool Mounting Bracket
19	Shield, Heat
19	WP4449809 Whirlpool Screw
20	Bracket (3rd Glsss)
22	4457114 Whirlpool Oven Heat Shield
23	Retainer, Glass-Clip (Stainless Steel)
23	RETAINER,GLASS CLIP (BISCUIT)
23	Clip, Retainer (Black Model)
23	Clip, Retainer (White Model)
24	Glass, Inner
25	4455803 Whirlpool Oven Bracket
25	WPW10132940 Whirlpool Dishwasher Screw
25	Bracket, Handle (L.Hand)
26	Seal, Door Top
