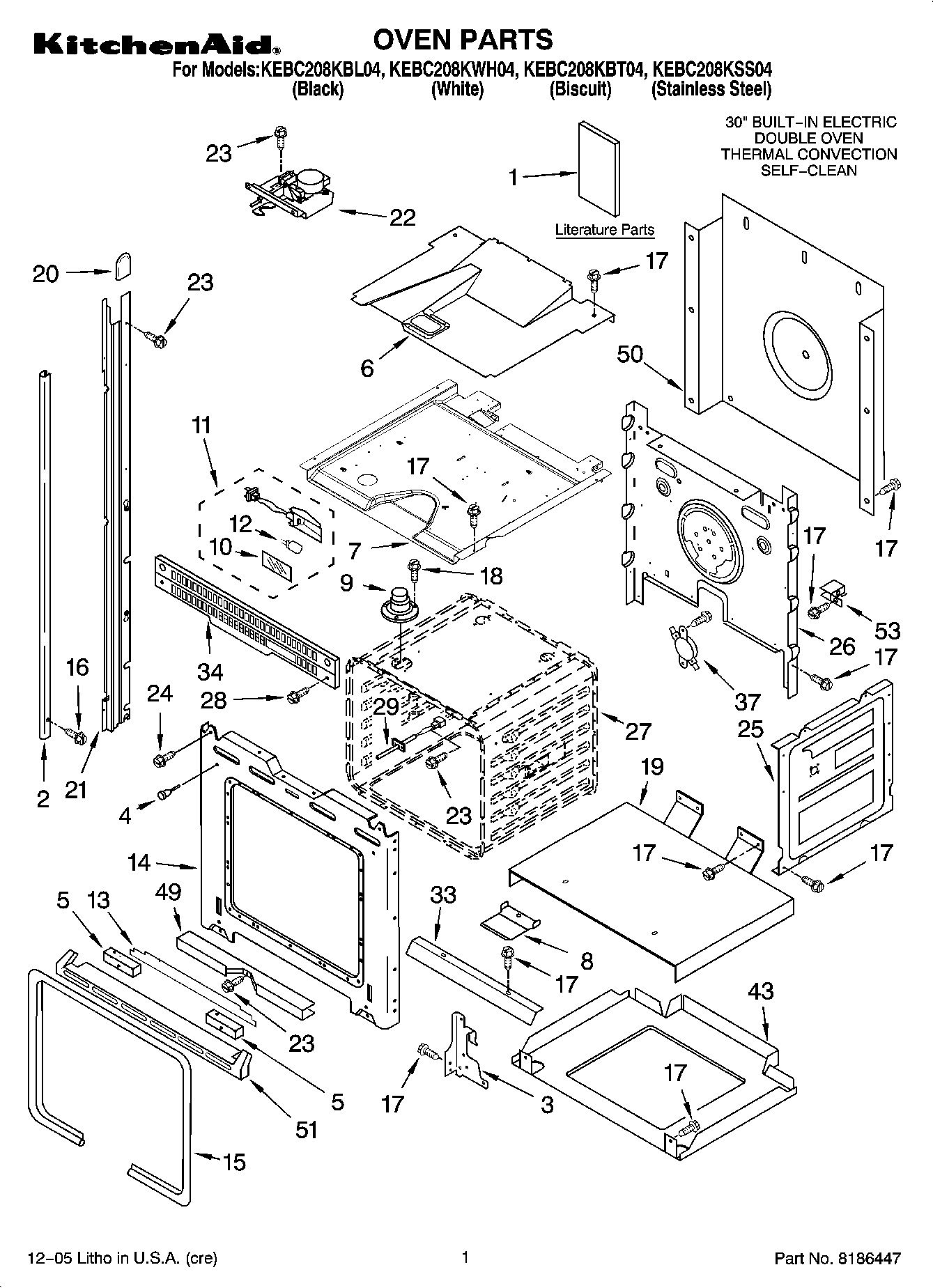

KEBC208KWH04 01 – OVEN PARTS

KEBC208KWH04 01 – OVEN PARTS

Written by

in

KEBC208KWH04 01 – OVEN PARTS

Products

PositionProduct
1Tech Sheet
1Easy Set Guide (French)
1Tech Sheet (French)
1French
1Installation Instructions
1Safe Cooking Tips
1Safe Cooking Tips (French)
1Easy Set Guide
1Owners Manual
2Trim, Side Right (White)
2Trim, Side (RH Biscuit)
2Trim, Side (LH Black)
2Trim, Side (Stainless Steel)
2Trim, Side (Stainless Steel)
2Trim, Side Left (White)
2Trim, Side (LH Biscuit)
2WP4455426 Whirlpool Trim
3WP4455605 Whirlpool Left Hand Hinge
3WP4455606 Whirlpool Right Hand Hinge
44448520 Whirlpool Oven Bumper
5Spacer, Foam
6Divider, Vent
7Top Chassis
84455807 Whirlpool Oven Vent Deflector
9W10861715 Whirlpool Vent Tube
10Lens, Light
11WP4448972 Whirlpool Oven Light
12WP4452164 Whirlpool 12V 5W Halogen Light Bulb
13Insulation Bottom Vent
14Frame, Front
15W11675844 Whirlpool Oven Gasket
16WP8281236 Whirlpool Screw
17WP4449809 Whirlpool Screw
18SCREW
19Support, Insulation
20Cap, Spacer
21814374 Whirlpool Oven Rail Mount
21814373 Whirlpool Oven Rail Mount
22WP9760889 Whirlpool Door Latch
23WP4449154 Whirlpool Screw
24Screw
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (Not serviceable)
28WP3400832 Whirlpool Screw
29WPW10131825 Whirlpool Oven Temperature Sensor
339760677 Whirlpool Oven Vent Deflector
34Vent, Center
37WP9759242 Whirlpool Thermostat
43Base, Chassis
49WP4448933 Whirlpool Retainer
50WP4451747 Whirlpool Rear Cover
514452152 Whirlpool Oven Mounting Bracket
51WPL 4455443
51WPL 4455445
51WPL 4455447
51WPL 4455147
53WPL 4450365
53WPL 4449845
53W11684730 Whirlpool Insulation
53WPL ARI82179A2
