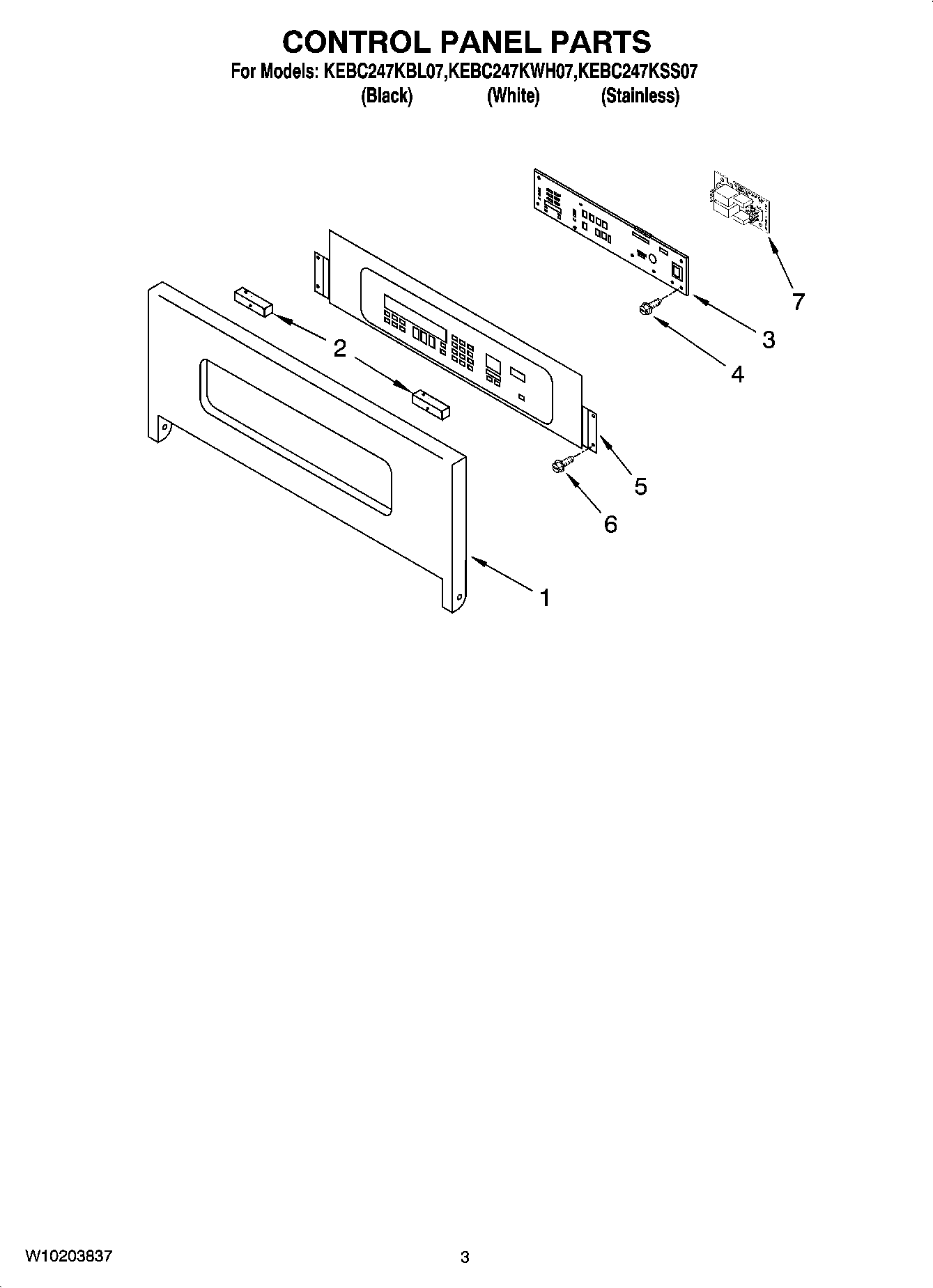

KEBC247KBL07 02 – CONTROL PANEL PARTS

Written by

Products

Position	Product
1	Panel, Control (White Model)
1	Panel, Control (Stainless)
1	WPW10358920 Whirlpool Control Panel Assembly
2	Spacer, Foam
3	Control, Electronic
4	WP4449745 Whirlpool Screw
5	Switch, Membrane (Black)
5	Assembly, Membrane (White)
5	Assembly, Membrane (Stainless)
6	WP3400832 Whirlpool Screw
7	Latch, Sister Board
