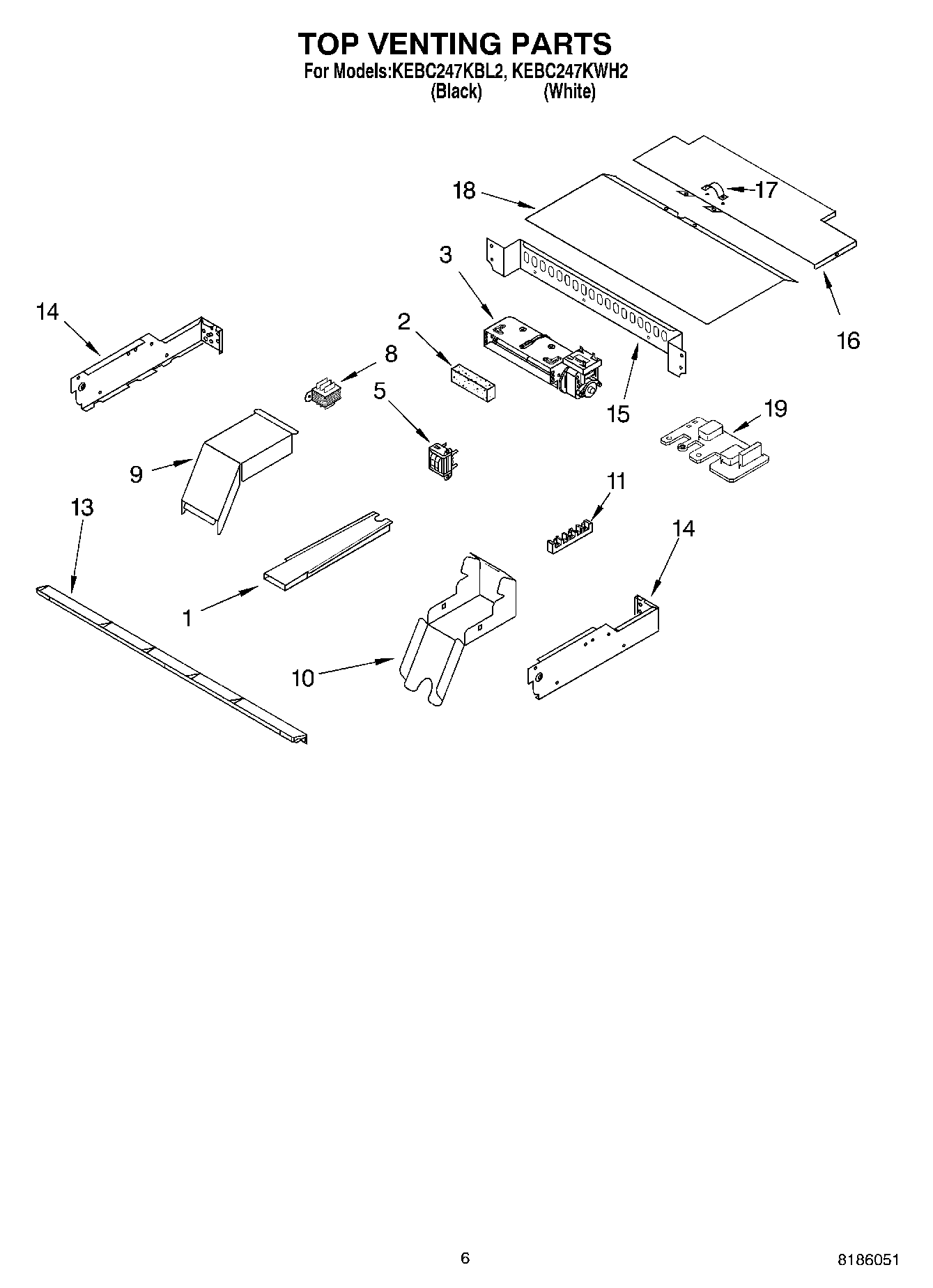

KEBC247KBL2 05 – TOP VENTING PARTS, MISCELLANEOUS PARTS

KEBC247KBL2 05 – TOP VENTING PARTS, MISCELLANEOUS PARTS

Written by

in

KEBC247KBL2 05 – TOP VENTING PARTS, MISCELLANEOUS PARTS

Products

PositionProduct
WPL ARI82243A4
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 200 c Brown)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
WP261869 Whirlpool Microwave Paint
242831 Whirlpool Oven Wire
Spacer, Harness
Wire (12 Ga. 150 c Black)
18 Ga. 80~c Rating (Red)
1
WPL ARI82242A3
WPL ARI82241A4
WPL ARI82240A7
WPL 8301872
8301909 Whirlpool Oven Wire Harness
261900 Whirlpool Microwave Spray
WPL ARI82244A3
4451761 Whirlpool Oven Support Bracket
WPL 591014
16515 Whirlpool Clip
Conduit, Double
285006 Whirlpool Spray
WPW10339879 Whirlpool Wire Tie
WP112432 Whirlpool Nut Assembly
4450800 Whirlpool Oven Screw
Wire, 25` Roll (Black 14 Ga.)
Wire, 25` Roll (Red 14 Ga.)
4448664 Whirlpool Oven Mounting Bracket
Wire, 25“ Roll (White 14 GA.)
72032 Whirlpool Touch Up Paint Black
WP482338 Whirlpool Refrigerator Adhesive
350930 Whirlpool White Spray Paint
72017 Whirlpool Appliance Touch-Up Paint White
WP4449809 Whirlpool Screw
WP4448950 Whirlpool Screw
814381 Whirlpool Pin
14451759 Whirlpool Oven Exhaust Vent
2W10491987 Whirlpool Foam Seal
3Blower
3WPW10016550 Whirlpool Blower Cooling Fan
3WP4455352 Whirlpool Mounting Bracket
5WP9760588 Whirlpool Transformer
8Transformer, Control
94455178 Whirlpool Oven Top Elbow
104455177 Whirlpool Oven Bottom Elbow
11WP8203546 Whirlpool Terminal Block
11Screw
13WP4450038 Whirlpool Screw
134448547 Whirlpool Oven Vent Control
14W10755214 Whirlpool Side Complete
14WP4449154 Whirlpool Screw
14W10790240 Whirlpool Side Assembly Complete
15Back, Control
164450549 Whirlpool Oven Top Cover
18Cover, Top Front
18Spacer, Foam
19WP4451985 Whirlpool Noise Filter Board
194455191 Whirlpool Oven Mounting Plate
