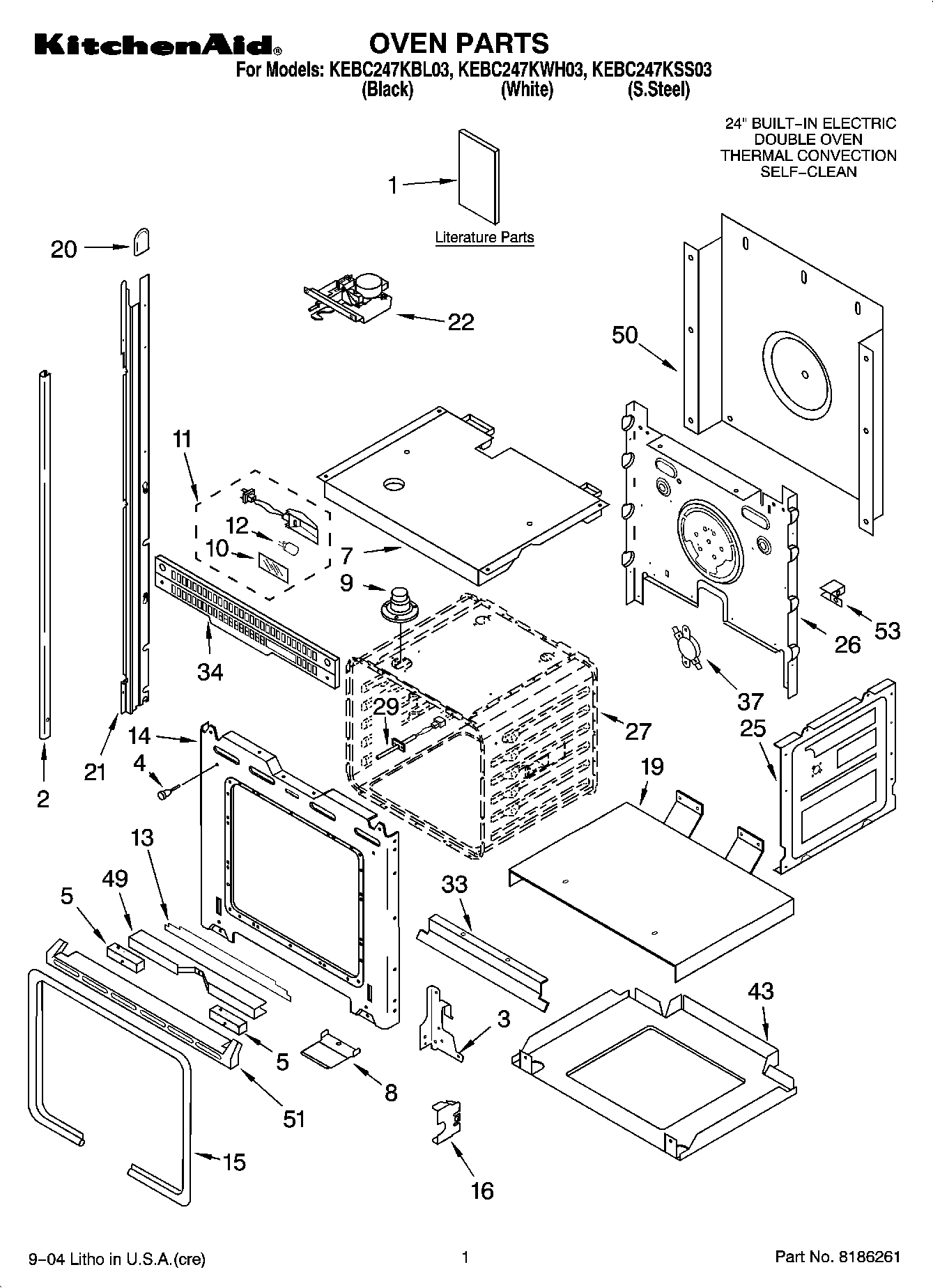

KEBC247KSS03 01 – OVEN PARTS

KEBC247KSS03 01 – OVEN PARTS

Written by

in

KEBC247KSS03 01 – OVEN PARTS

Products

PositionProduct
1Safe Cooking Tips
1Cookbook
1Easy Set Guide
1Use & Care Guide (Oven)
1Installation Instructions
1Tech Sheet
2Trim, Side (Stainless Steel)
2Trim, Side (Stainless Steel)
2WP4455426 Whirlpool Trim
2Trim, Side Left (White)
2Trim, Side Right (White)
2Trim, Side (LH Black)
2WP8281236 Whirlpool Screw
3WP4455605 Whirlpool Left Hand Hinge
3WP4455606 Whirlpool Right Hand Hinge
44448520 Whirlpool Oven Bumper
5Spacer, Foam
74455863 Whirlpool Oven Top Assembly
84455807 Whirlpool Oven Vent Deflector
8W10145009 Whirlpool Vent Deflector
9W10861715 Whirlpool Vent Tube
9SCREW
10Lens, Light
114449748 Whirlpool Oven Screw
11WP4448972 Whirlpool Oven Light
12WP4452164 Whirlpool 12V 5W Halogen Light Bulb
13Insulation, Bottom Vent
14WP4450118 Whirlpool Nut
14Screw
149760754 Whirlpool Oven Front Frame
15WP4455380 Whirlpool Door Gasket
164452152 Whirlpool Oven Mounting Bracket
194451476 Whirlpool Support
20Cap, Spacer
21814373 Whirlpool Oven Rail Mount
21814374 Whirlpool Oven Rail Mount
21WP4448444 Whirlpool Grommet
22WP9760889 Whirlpool Door Latch
25W10782197 Whirlpool Side Panel
264452232 Whirlpool Oven Rear Cover
27Liner, Oven (Not serviceable)
29WPW10131825 Whirlpool Oven Temperature Sensor
33Deflector, Vent
34W10358914 Whirlpool Oven Vent
37WP9759242 Whirlpool Thermostat
434450525 Whirlpool Oven Bottom Assembly
49WP4448933 Whirlpool Retainer
49WP4449154 Whirlpool Screw
50WP4451747 Whirlpool Rear Cover
51Trim, Bottom (White Model)
51Trim, Bottom (Black Model)
51WP3400832 Whirlpool Screw
51Trim, Bottom (S.Steel Model
53WP4449314 Whirlpool Insulation
53WP4449809 Whirlpool Screw
53WP4450363 Whirlpool Insulation
53WPL ARI82246A3
53WPL 4449845
