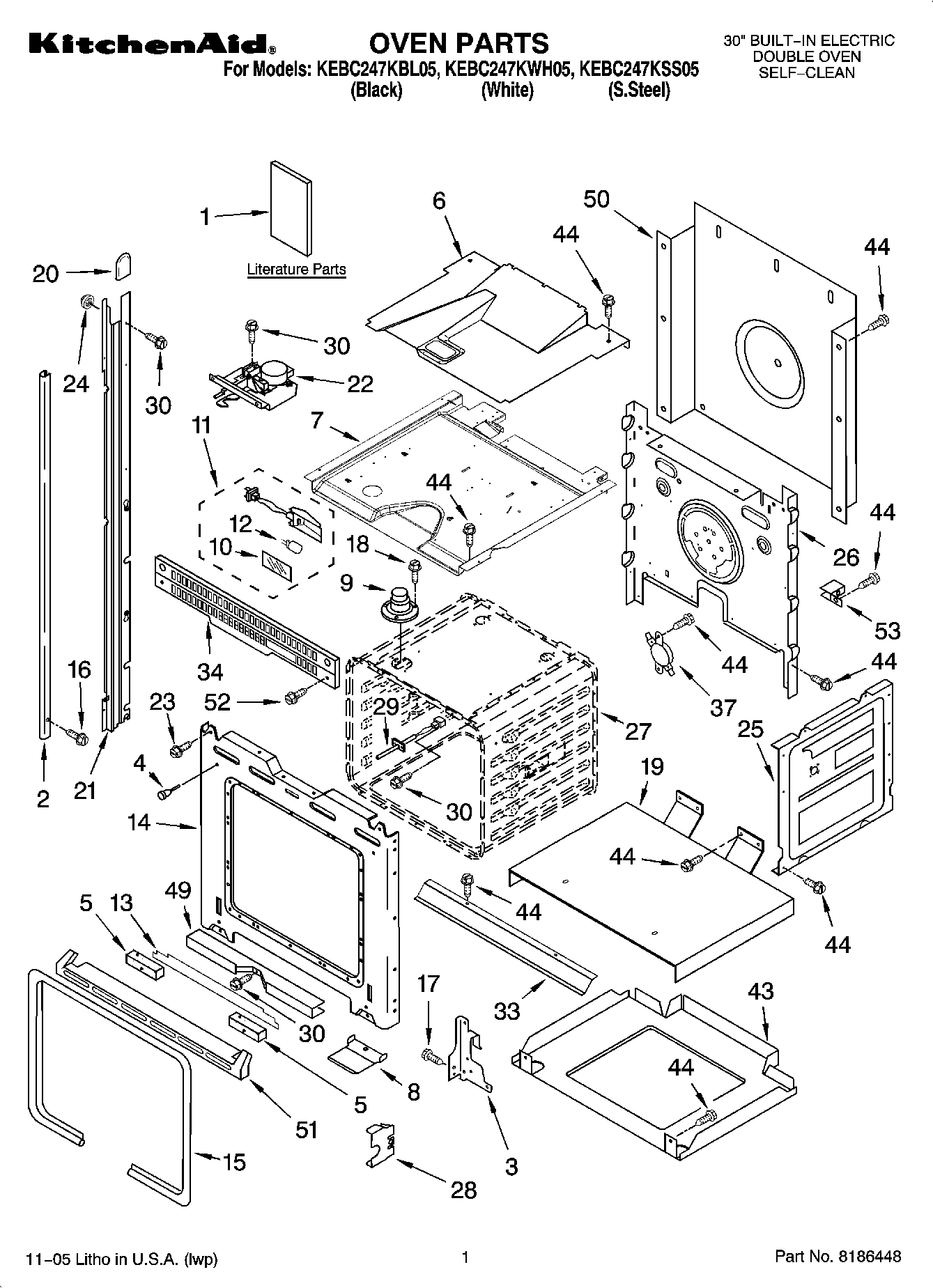

KEBC247KSS05 01 – OVEN PARTS

KEBC247KSS05 01 – OVEN PARTS

Written by

in

KEBC247KSS05 01 – OVEN PARTS

Products

PositionProduct
1Installation Instructions (Bottom Trim)
1Safe Cooking Tips
1Safe Cooking Tips (French)
1Installation Instructions
1Easy Set Guide
1Tech Sheet
1Owners Manual
2Trim, Side Left (White)
2WP4455426 Whirlpool Trim
2Trim, Side (Stainless Steel)
2Trim, Side (Stainless Steel)
2Trim, Side Right (White)
2Trim, Side (LH Black)
3WP4455605 Whirlpool Left Hand Hinge
3WP4455606 Whirlpool Right Hand Hinge
44448520 Whirlpool Oven Bumper
5Spacer, Foam
68302347 Whirlpool Vent Panel
74455863 Whirlpool Oven Top Assembly
84455807 Whirlpool Oven Vent Deflector
9W10861715 Whirlpool Vent Tube
10Lens, Light
11WP4448972 Whirlpool Oven Light
12WP4452164 Whirlpool 12V 5W Halogen Light Bulb
13Insulation, Bottom Vent
149760754 Whirlpool Oven Front Frame
15WP4455380 Whirlpool Door Gasket
16WP8281236 Whirlpool Screw
17WP4449743 Whirlpool Screw
18SCREW
194451476 Whirlpool Support
20Cap, Spacer
21814374 Whirlpool Oven Rail Mount
21814373 Whirlpool Oven Rail Mount
22WP9760889 Whirlpool Door Latch
23Screw
24WP4448444 Whirlpool Grommet
25W10782197 Whirlpool Side Panel
264452232 Whirlpool Oven Rear Cover
27Liner, Oven (Not serviceable)
284452152 Whirlpool Oven Mounting Bracket
29WPW10131825 Whirlpool Oven Temperature Sensor
30WP4449154 Whirlpool Screw
33Deflector, Vent
34W10358914 Whirlpool Oven Vent
37WP9759242 Whirlpool Thermostat
434450525 Whirlpool Oven Bottom Assembly
44WP4449809 Whirlpool Screw
49WP4448933 Whirlpool Retainer
50WP4451747 Whirlpool Rear Cover
51Trim, Bottom (S.Steel)
51Trim, Bottom (Black)
51Trim, Bottom (White)
52WP3400832 Whirlpool Screw
53WP4450363 Whirlpool Insulation
53WP4449314 Whirlpool Insulation
53WPL 4449845
53FOLLOWING PARTS NOT ILLUSTRATED INSULATION
