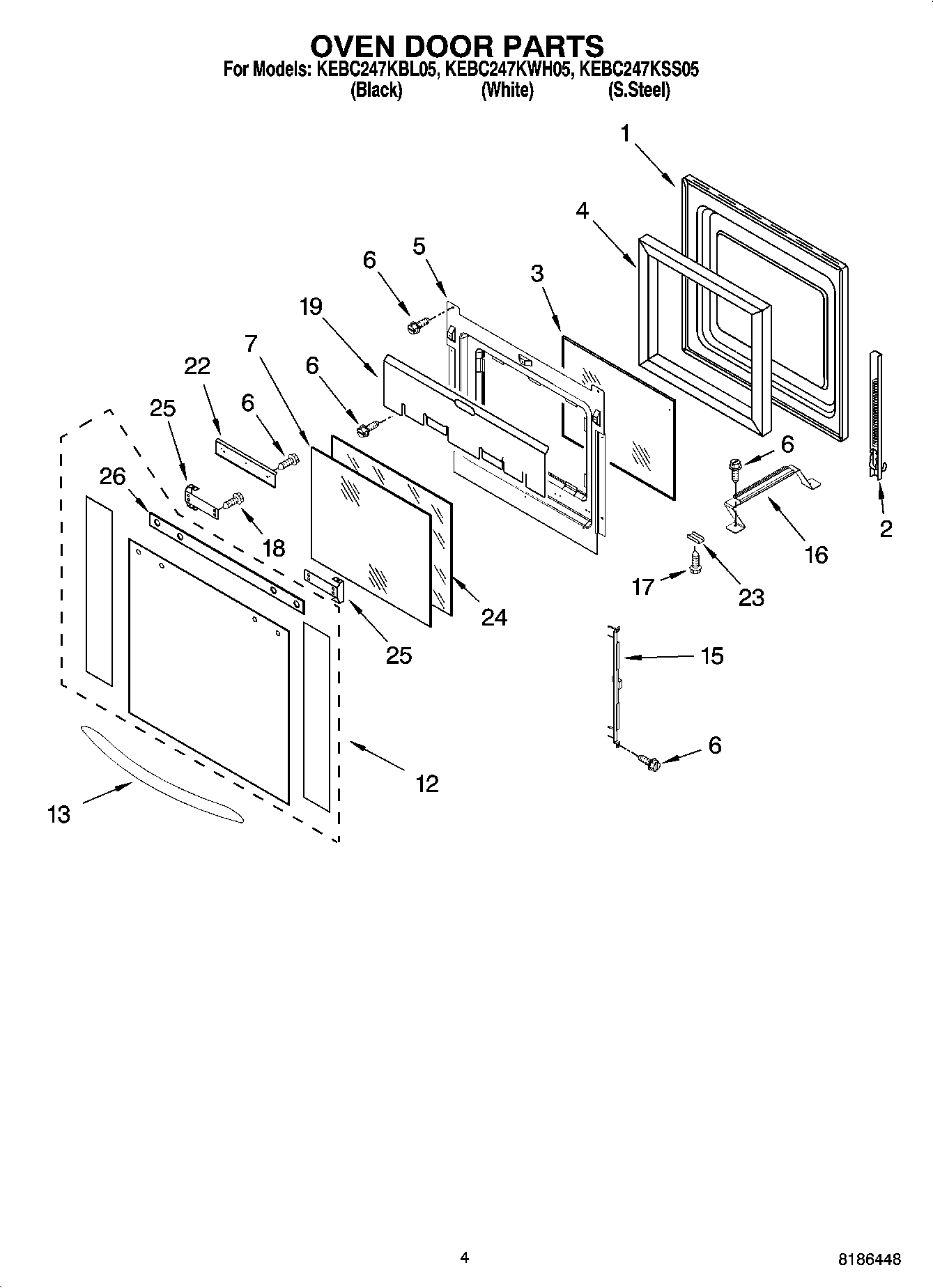

KEBC247KSS05 03 – OVEN DOOR PARTS

Products

Position	Product
1	WP8303698 Whirlpool Door Liner
2	WP9760571 Whirlpool Door Hinge
2	WP9760572 Whirlpool Door Hinge
2	9760569 Whirlpool Door Hinge
2	9760570 Whirlpool Door Hinge
3	WP4449247 Whirlpool Inner Door Glass
4	W11688413 Whirlpool Insulation
5	4457130 Whirlpool Oven Retainer
6	WP4449809 Whirlpool Screw
7	WP9759223 Whirlpool Door Glass
12	Door Glass, Assy (White Model)
12	Door Glass, Assy (S.Steel)
12	Door Glass, Assy (Black Model)
13	Door Handle (Black)
13	Door Handle (S.Steel)
13	Door Handle (White)
15	WP9759229 Whirlpool Mounting Bracket
16	Bracket (3rd Glsss)
17	WP3400832 Whirlpool Screw
18	WPW10132940 Whirlpool Dishwasher Screw
19	4457101 Whirlpool Oven Shield
22	4457112 Whirlpool Oven Heat Shield
23	Retainer, Glass-Clip (Stainless Steel)
23	Clip, Retainer (Black Model)
23	Clip, Retainer (White Model)
24	WP9759226 Whirlpool Door Glass
25	4455803 Whirlpool Oven Bracket
25	Bracket, Handle (L.Hand)
26	Seal, Door
