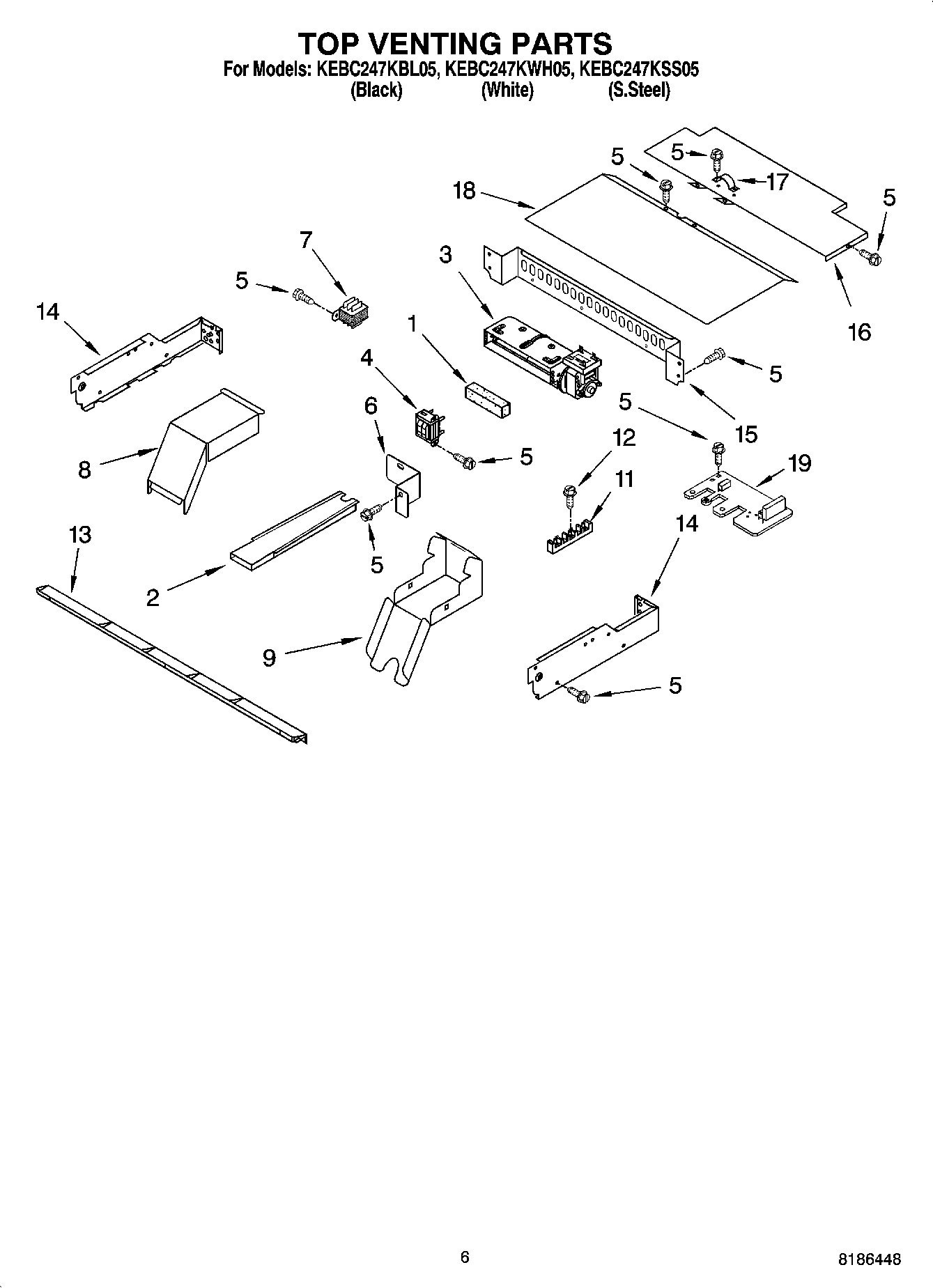

KEBC247KSS05 05 – TOP VENTING PARTS, OPTIONAL PARTS

KEBC247KSS05 05 – TOP VENTING PARTS, OPTIONAL PARTS

Written by

in

KEBC247KSS05 05 – TOP VENTING PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI82261A1
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
WP261869 Whirlpool Microwave Paint
242831 Whirlpool Oven Wire
WPL 591014
4451761 Whirlpool Oven Support Bracket
WPL ARI82260A8
WPL ARI82259A2
WPL 9759299
WPL 9759298
WPL 9759297
WPL ARI82262A9
WPL 8301872
8301909 Whirlpool Oven Wire Harness
261900 Whirlpool Microwave Spray
Spacer, Harness
16515 Whirlpool Clip
4452400 Whirlpool Microwave Wire Harness
285006 Whirlpool Spray
WPW10339879 Whirlpool Wire Tie
4450800 Whirlpool Oven Screw
4448664 Whirlpool Oven Mounting Bracket
Wire, 25` Roll (Red 14 Ga.)
Wire, 25` Roll (Black 14 Ga.)
WP112432 Whirlpool Nut Assembly
WP4449809 Whirlpool Screw
72017 Whirlpool Appliance Touch-Up Paint White
350930 Whirlpool White Spray Paint
72032 Whirlpool Touch Up Paint Black
WP482338 Whirlpool Refrigerator Adhesive
WP4448950 Whirlpool Screw
Conduit, Double
4455191 Whirlpool Oven Mounting Plate
814381 Whirlpool Pin
1W10491987 Whirlpool Foam Seal
24451759 Whirlpool Oven Exhaust Vent
3WPW10016550 Whirlpool Blower Cooling Fan
3WPW10176670 Whirlpool Blower
4WP9760588 Whirlpool Transformer
68302390 Whirlpool Support Bracket
7Transformer, Control
84455178 Whirlpool Oven Top Elbow
94455177 Whirlpool Oven Bottom Elbow
11WP8203546 Whirlpool Terminal Block
12Screw
134448547 Whirlpool Oven Vent Control
14W10755214 Whirlpool Side Complete
14W10790240 Whirlpool Side Assembly Complete
15Back, Control
164450549 Whirlpool Oven Top Cover
18Cover, Top Front
19WP4451985 Whirlpool Noise Filter Board
