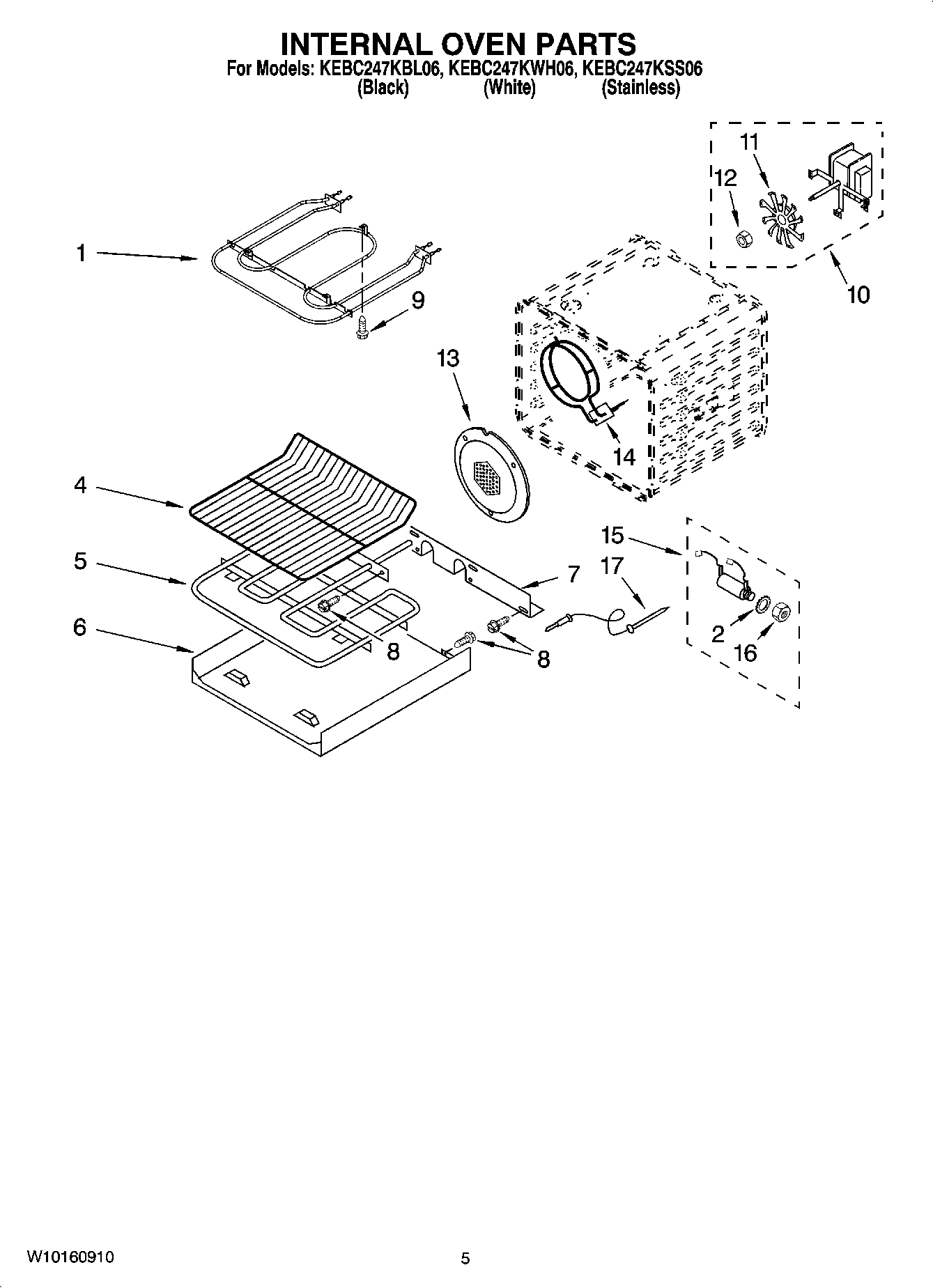

KEBC247KSS06 04 – INTERNAL OVEN PARTS

KEBC247KSS06 04 – INTERNAL OVEN PARTS

Written by

in

KEBC247KSS06 04 – INTERNAL OVEN PARTS

Products

PositionProduct
1WPW10207400 Whirlpool Broil Element
2WP9755547 Whirlpool Lockwasher
44448716 Whirlpool Oven Rack 24"
5ELMNT-BAKE
64455035 Whirlpool Bake Tray
74450039 Whirlpool Oven Access Cover
8WP4449809 Whirlpool Screw
9WP4449154 Whirlpool Screw
10Motor Convection
11WP4452226 Whirlpool Convection Fan
12Nut
13WPW10160821 Whirlpool Fan Cover
14WP9760769 Whirlpool Element Assembly
158186589 Whirlpool Jack Probe
16WP9755546 Whirlpool Locknut
17WP9755542 Whirlpool Oven Meat Probe
