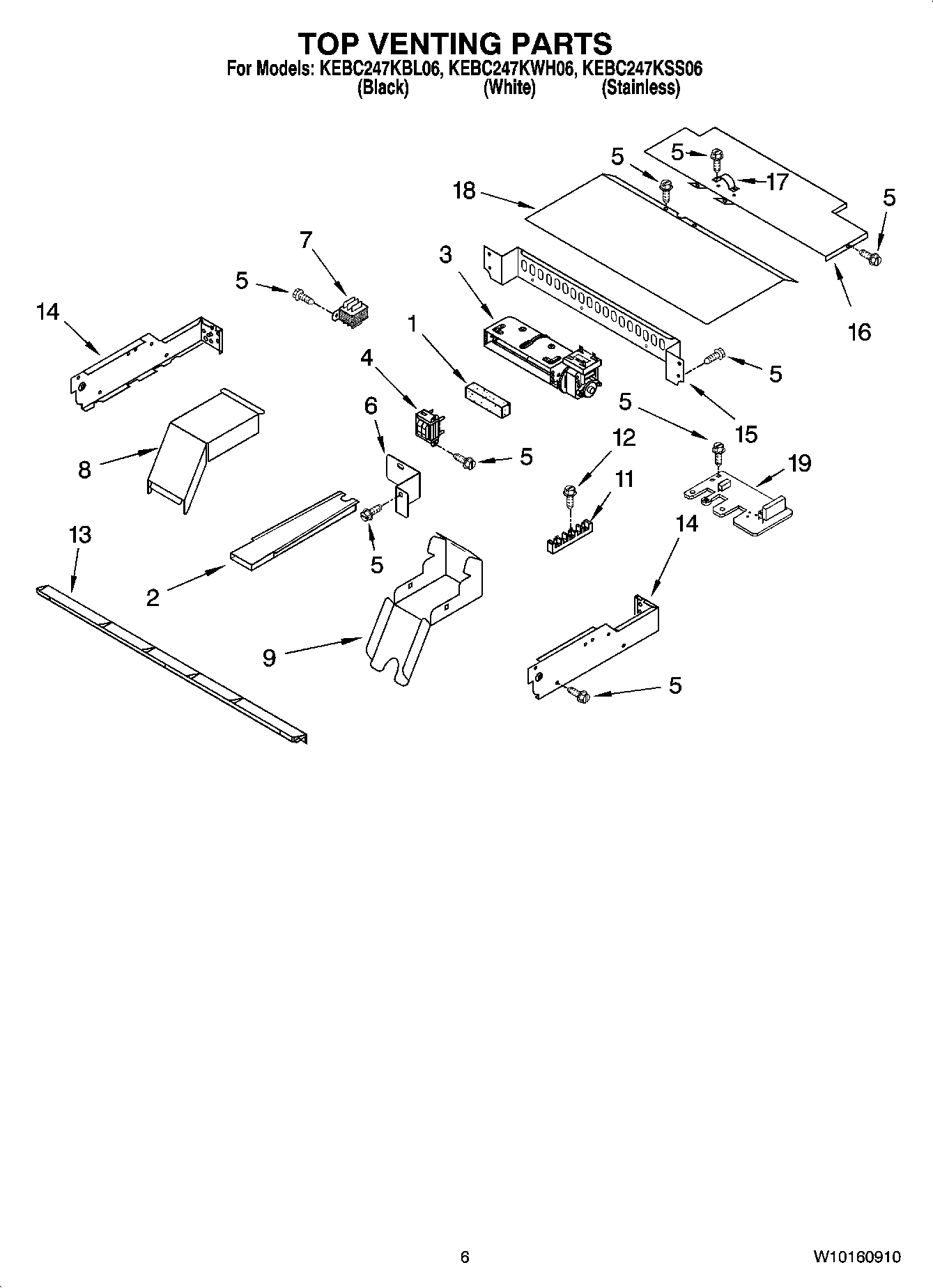

KEBC247KSS06 05 – TOP VENTING PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI82268A1
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
WP261869 Whirlpool Microwave Paint
242831 Whirlpool Oven Wire
Spacer, Harness
16515 Whirlpool Clip
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 200 c Brown)
WPL ARI82267A7
WPL ARI82266A5
WPL ARI82265A9
WPL 8301872
8301909 Whirlpool Oven Wire Harness
261900 Whirlpool Microwave Spray
4451761 Whirlpool Oven Support Bracket
WPL 591014
4452400 Whirlpool Microwave Wire Harness
Conduit, Double
350930 Whirlpool White Spray Paint
Wire, 25` Roll (Red 14 Ga.)
4450800 Whirlpool Oven Screw
Wire, 25` Roll (Black 14 Ga.)
WPW10339879 Whirlpool Wire Tie
285006 Whirlpool Spray
WP112432 Whirlpool Nut Assembly
72032 Whirlpool Touch Up Paint Black
WP482338 Whirlpool Refrigerator Adhesive
8528351 Whirlpool Clip
4455191 Whirlpool Oven Mounting Plate
72017 Whirlpool Appliance Touch-Up Paint White
WP4448950 Whirlpool Screw
WP4449809 Whirlpool Screw
814381 Whirlpool Pin
4448664 Whirlpool Oven Mounting Bracket
1W10491987 Whirlpool Foam Seal
24451759 Whirlpool Oven Exhaust Vent
3WPW10176670 Whirlpool Blower
3WPW10016550 Whirlpool Blower Cooling Fan
4WP9760588 Whirlpool Transformer
68302390 Whirlpool Support Bracket
7Transformer, Control
84455178 Whirlpool Oven Top Elbow
94455177 Whirlpool Oven Bottom Elbow
11WP8203546 Whirlpool Terminal Block
12Screw
134448547 Whirlpool Oven Vent Control
14W10755214 Whirlpool Side Complete
14W10790240 Whirlpool Side Assembly Complete
15Back, Control
164450549 Whirlpool Oven Top Cover
18Cover, Top Front
19WP4451985 Whirlpool Noise Filter Board
