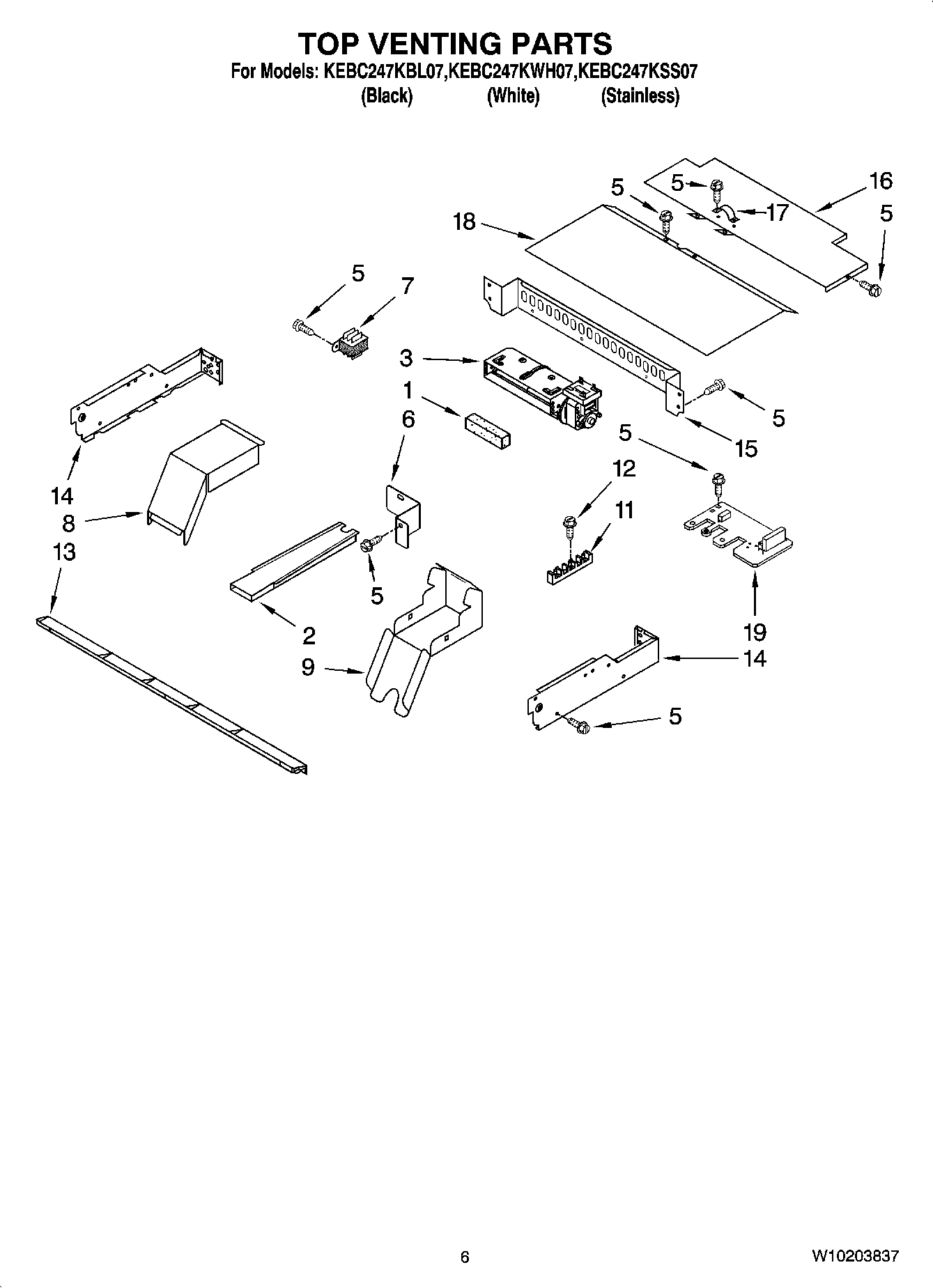

KEBC247KSS07 05 – TOP VENTING PARTS, OPTIONAL PARTS

Products

Position	Product
	WIRING HARNESS PA
	242831 Whirlpool Oven Wire
	WP261869 Whirlpool Microwave Paint
	Wire (14 Ga. 150 c Blue)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 200 c Brown)
	WPL 591014
	4451761 Whirlpool Oven Support Bracket
	WPL ARI82275A4
	261900 Whirlpool Microwave Spray
	8301909 Whirlpool Oven Wire Harness
	W10179652 Whirlpool Wire Harness
	ADHESIVE
	SPLICING WIRES–25FT. LENGTH
	16515 Whirlpool Clip
	4452400 Whirlpool Microwave Wire Harness
	Conduit, Double
	Wire, 25` Roll (Black 14 Ga.)
	Wire, 25` Roll (Red 14 Ga.)
	4448664 Whirlpool Oven Mounting Bracket
	4450800 Whirlpool Oven Screw
	WP4449809 Whirlpool Screw
	285006 Whirlpool Spray
	72032 Whirlpool Touch Up Paint Black
	WP482338 Whirlpool Refrigerator Adhesive
	WP112432 Whirlpool Nut Assembly
	350930 Whirlpool White Spray Paint
	4455191 Whirlpool Oven Mounting Plate
	WP4448950 Whirlpool Screw
	72017 Whirlpool Appliance Touch-Up Paint White
	8528351 Whirlpool Clip
1	W10491987 Whirlpool Foam Seal
2	4451759 Whirlpool Oven Exhaust Vent
3	WPW10016550 Whirlpool Blower Cooling Fan
3	WPW10176670 Whirlpool Blower
6	8302390 Whirlpool Support Bracket
7	Transformer
8	4455178 Whirlpool Oven Top Elbow
9	4455177 Whirlpool Oven Bottom Elbow
11	WP8203546 Whirlpool Terminal Block
12	Screw
13	4448547 Whirlpool Oven Vent Control
14	W10790240 Whirlpool Side Assembly Complete
14	W10755214 Whirlpool Side Complete
15	Back, Control
16	4450549 Whirlpool Oven Top Cover
18	Cover, Top Front
19	WP4451985 Whirlpool Noise Filter Board
