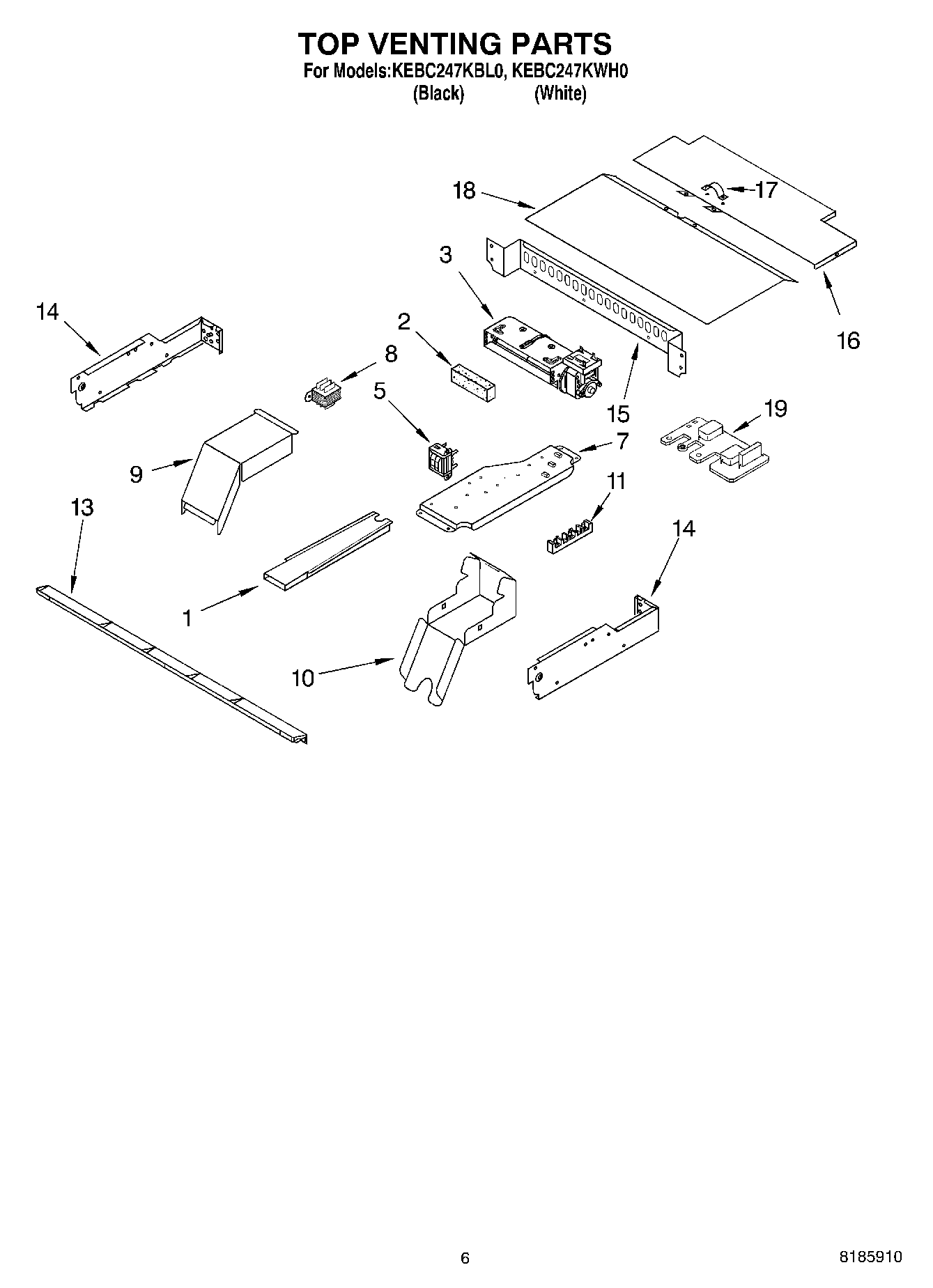

KEBC247KWH0 05 – TOP VENTING

KEBC247KWH0 05 – TOP VENTING

Written by

in

KEBC247KWH0 05 – TOP VENTING

Products

PositionProduct
14451759 Whirlpool Oven Exhaust Vent
2W10491987 Whirlpool Foam Seal
3WPW10016550 Whirlpool Blower Cooling Fan
3Blower
3WP4455352 Whirlpool Mounting Bracket
5WP9760588 Whirlpool Transformer
7Plate, Mounting
8Transformer, Control
94455178 Whirlpool Oven Top Elbow
104455177 Whirlpool Oven Bottom Elbow
11Screw
11WP8203546 Whirlpool Terminal Block
134448547 Whirlpool Oven Vent Control
13WP4450038 Whirlpool Screw
14W10755214 Whirlpool Side Complete
14W10790240 Whirlpool Side Assembly Complete
14WP4449154 Whirlpool Screw
15Back, Control
164450549 Whirlpool Oven Top Cover
18Cover, Top Front
18Spacer, Foam
19Wire (14 Ga. 200 c Brown)
1918 Ga. 80~c Rating (Red)
19WP4449809 Whirlpool Screw
19Wire (12 Ga. 150 c Black)
191
19WPL 591014
194451761 Whirlpool Oven Support Bracket
19WPL 4455726
19Wire, 25“ Roll (White 14 GA.)
19WP4451985 Whirlpool Noise Filter Board
19Harness, Wire (Latch)
19261900 Whirlpool Microwave Spray
1972017 Whirlpool Appliance Touch-Up Paint White
19Wire (14 Ga. 150 c Brown)
19WP112432 Whirlpool Nut Assembly
19Conduit, Double
194450800 Whirlpool Oven Screw
194455191 Whirlpool Oven Mounting Plate
19WP4448950 Whirlpool Screw
19814381 Whirlpool Pin
19350930 Whirlpool White Spray Paint
19WP482338 Whirlpool Refrigerator Adhesive
1972032 Whirlpool Touch Up Paint Black
19285006 Whirlpool Spray
1916515 Whirlpool Clip
19Spacer, Harness
19Wire (14 Ga. 150 c Yellow)
19Wire (14 Ga. 150 c Orange)
19Wire (14 Ga. 150 c Green)
19Wire, 25` Roll (Black 14 Ga.)
19Wire, 25` Roll (Red 14 Ga.)
194448664 Whirlpool Oven Mounting Bracket
19Wire (14 Ga. 150 c Blue)
19WP261869 Whirlpool Microwave Paint
19242831 Whirlpool Oven Wire
19WPW10339879 Whirlpool Wire Tie
