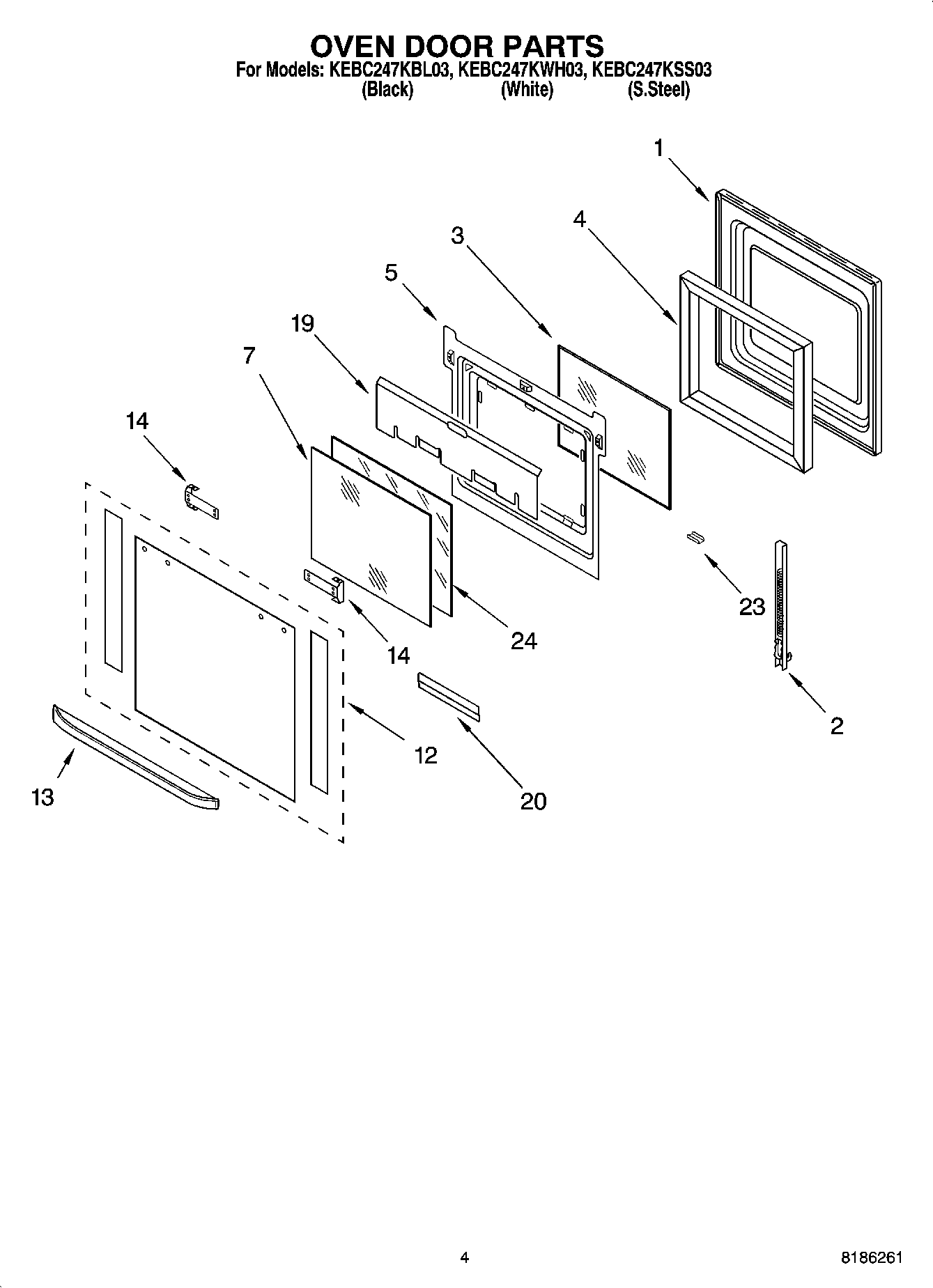

KEBC247KWH03 03 – OVEN DOOR PARTS

Products

Position	Product
1	WP8303698 Whirlpool Door Liner
2	9760570 Whirlpool Door Hinge
2	9760569 Whirlpool Door Hinge
2	WP9760572 Whirlpool Door Hinge
2	WP9760571 Whirlpool Door Hinge
2	WP4449743 Whirlpool Screw
3	WP4449247 Whirlpool Inner Door Glass
4	W11688413 Whirlpool Insulation
5	4457130 Whirlpool Oven Retainer
7	Glass, Inner
12	Door Glass, Assy (Black Model)
12	Door Glass, Assy (White Model)
12	Door Glass, Assy (S.Steel)
13	Door Handle (White)
13	Door Handle (S.Steel)
13	Door Handle (Black)
14	WPW10132940 Whirlpool Dishwasher Screw
14	4455803 Whirlpool Oven Bracket
14	Bracket, Handle (L.Hand)
19	Shield, Heat
20	Retainer, Glass
20	WP4449809 Whirlpool Screw
23	Clip, Retainer (White Model)
23	Clip, Retainer (Black Model)
24	Glass, Inner
