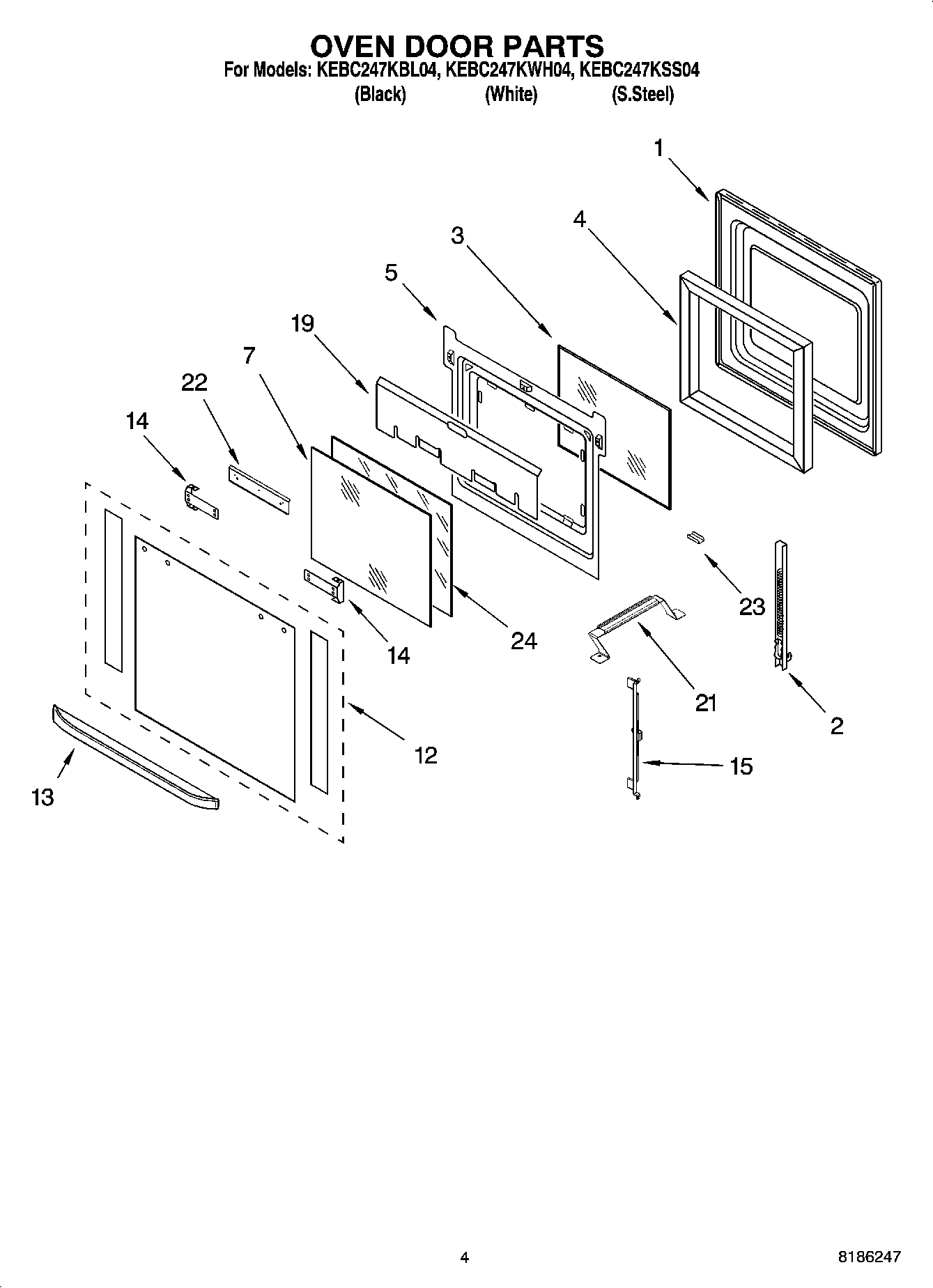

KEBC247KWH04 03 – OVEN DOOR PARTS

Products

Position	Product
1	WP8303698 Whirlpool Door Liner
2	9760570 Whirlpool Door Hinge
2	WP9760572 Whirlpool Door Hinge
2	WP9760571 Whirlpool Door Hinge
2	9760569 Whirlpool Door Hinge
2	WP4449743 Whirlpool Screw
3	WP4449247 Whirlpool Inner Door Glass
4	W11688413 Whirlpool Insulation
5	4457130 Whirlpool Oven Retainer
7	WP9759223 Whirlpool Door Glass
12	Door Glass, Assy (S.Steel)
12	Door Glass, Assy (White Model)
12	Door Glass, Assy (Black Model)
13	Door Handle (Black)
13	Door Handle (White)
13	Door Handle (S.Steel)
14	Bracket, Handle (L.Hand)
14	WPW10132940 Whirlpool Dishwasher Screw
14	4455803 Whirlpool Oven Bracket
15	WP9759229 Whirlpool Mounting Bracket
19	4457101 Whirlpool Oven Shield
19	WP4449809 Whirlpool Screw
21	Bracket (3rd Glsss)
22	4457112 Whirlpool Oven Heat Shield
23	Clip, Retainer (White Model)
23	Clip, Retainer (Black Model)
24	WP9759226 Whirlpool Door Glass
