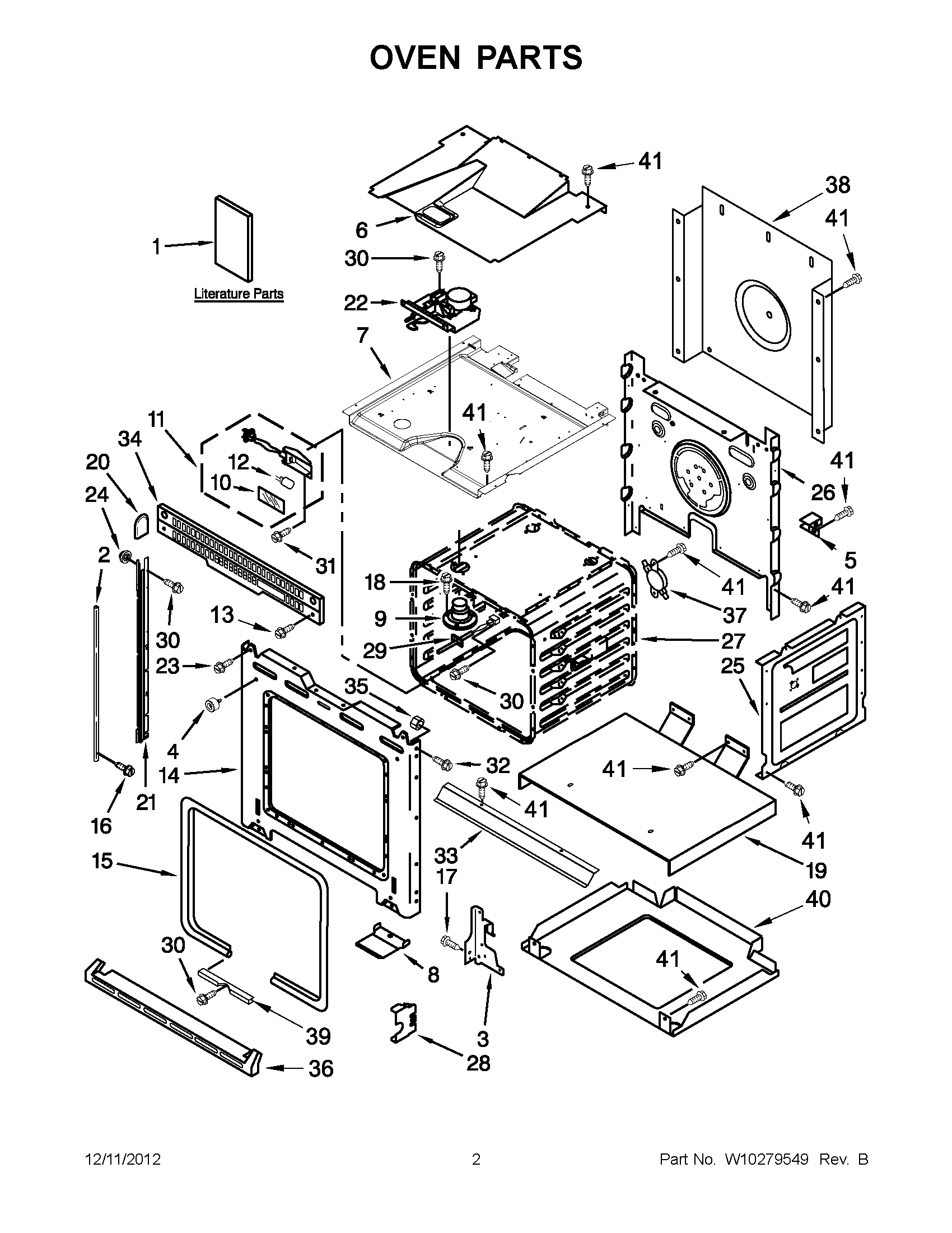

KEBC247VBL02 01 – OVEN PARTS

Products

Position	Product
NI	WP4449314 Whirlpool Insulation
NI	WP4450363 Whirlpool Insulation
NI	CABINET (NOT A SERVICEABLE PART)
1	SAFER COOKING TIPS (ENGLISH
1	Installation Instructions
1	Owners Manual (English)
1	Owners Manual (French)
1	Tech Sheet
1	Easy Set Guide
1	Safer Cooking Tips (French)
2	WPW10144986 Whirlpool Trim Assembly
2	Trim, Side Left (White)
2	Trim, Side Right (White)
2	WP4455426 Whirlpool Trim
2	WPW10144985 Whirlpool Trim
2	Trim, Side (LH Black)
3	WP4455605 Whirlpool Left Hand Hinge
3	WP4455606 Whirlpool Right Hand Hinge
4	W10105790 Whirlpool Bumper
5	WPL 4449845
6	8302347 Whirlpool Vent Panel
7	4455863 Whirlpool Oven Top Assembly
8	W10145009 Whirlpool Vent Deflector
8	4455807 Whirlpool Oven Vent Deflector
9	W10861715 Whirlpool Vent Tube
10	W10169756 Whirlpool Light Lens
11	WPW10307114 Whirlpool Light
12	BULB-LIGHT
13	WP3400832 Whirlpool Screw
14	9760754 Whirlpool Oven Front Frame
15	WP4455380 Whirlpool Door Gasket
16	WP8281236 Whirlpool Screw
17	WP4449743 Whirlpool Screw
18	SCREW
19	4451476 Whirlpool Support
20	Cap, Spacer
21	814373 Whirlpool Oven Rail Mount
21	814374 Whirlpool Oven Rail Mount
22	WPW10195934 Whirlpool Door Latch
23	Screw
24	WP4448444 Whirlpool Grommet
25	W10782197 Whirlpool Side Panel
26	4452232 Whirlpool Oven Rear Cover
28	4452152 Whirlpool Oven Mounting Bracket
29	WPW10131825 Whirlpool Oven Temperature Sensor
30	WP4449154 Whirlpool Screw
31	4449748 Whirlpool Oven Screw
32	WP4450038 Whirlpool Screw
33	Deflector, Vent
34	W10358914 Whirlpool Oven Vent
35	WP4450118 Whirlpool Nut
36	Assembly, Vent Bottom Trim (Stainless)
36	Trim, Bottom (Black Model)
36	Trim, Bottom (White Model)
37	WP9759242 Whirlpool Thermostat
38	WP4451747 Whirlpool Rear Cover
39	WP4448933 Whirlpool Retainer
40	4450525 Whirlpool Oven Bottom Assembly
41	WP4449809 Whirlpool Screw
