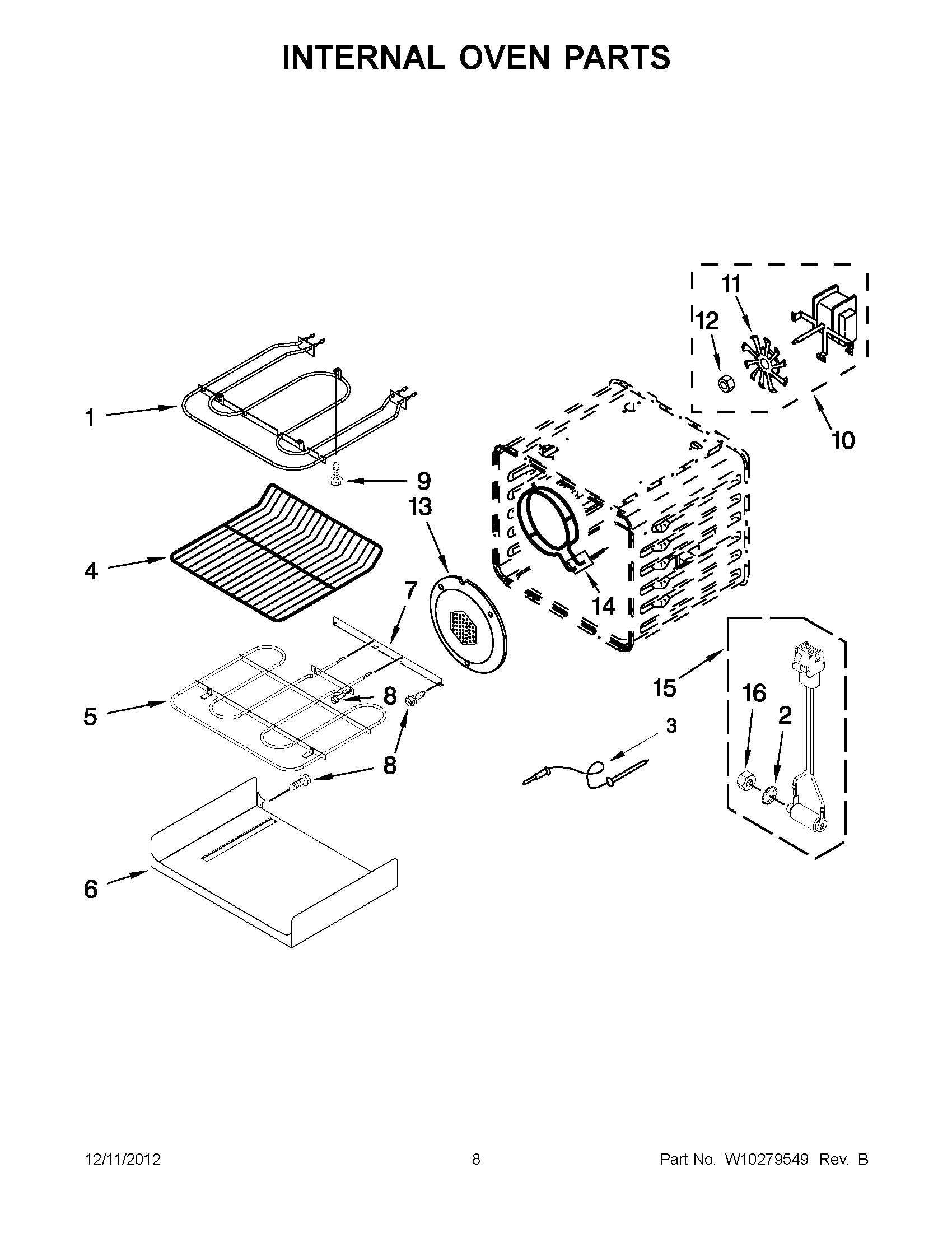

KEBC247VBL02 04 – INTERNAL OVEN PARTS

Products

Position	Product
1	WPW10207400 Whirlpool Broil Element
2	WP9755547 Whirlpool Lockwasher
3	WP9755542 Whirlpool Oven Meat Probe
4	4448716 Whirlpool Oven Rack 24"
5	ELMNT-BAKE
6	4455035 Whirlpool Bake Tray
7	4450039 Whirlpool Oven Access Cover
8	WP4449809 Whirlpool Screw
9	WP4449154 Whirlpool Screw
10	W10794022 Whirlpool Oven Cooktop Fan Motor
11	W10758272 Whirlpool Convection Fan
12	WPW10116349 Whirlpool Nut
13	WPW10160821 Whirlpool Fan Cover
14	WP9760769 Whirlpool Element Assembly
15	8186589 Whirlpool Jack Probe
16	WP9755546 Whirlpool Locknut
