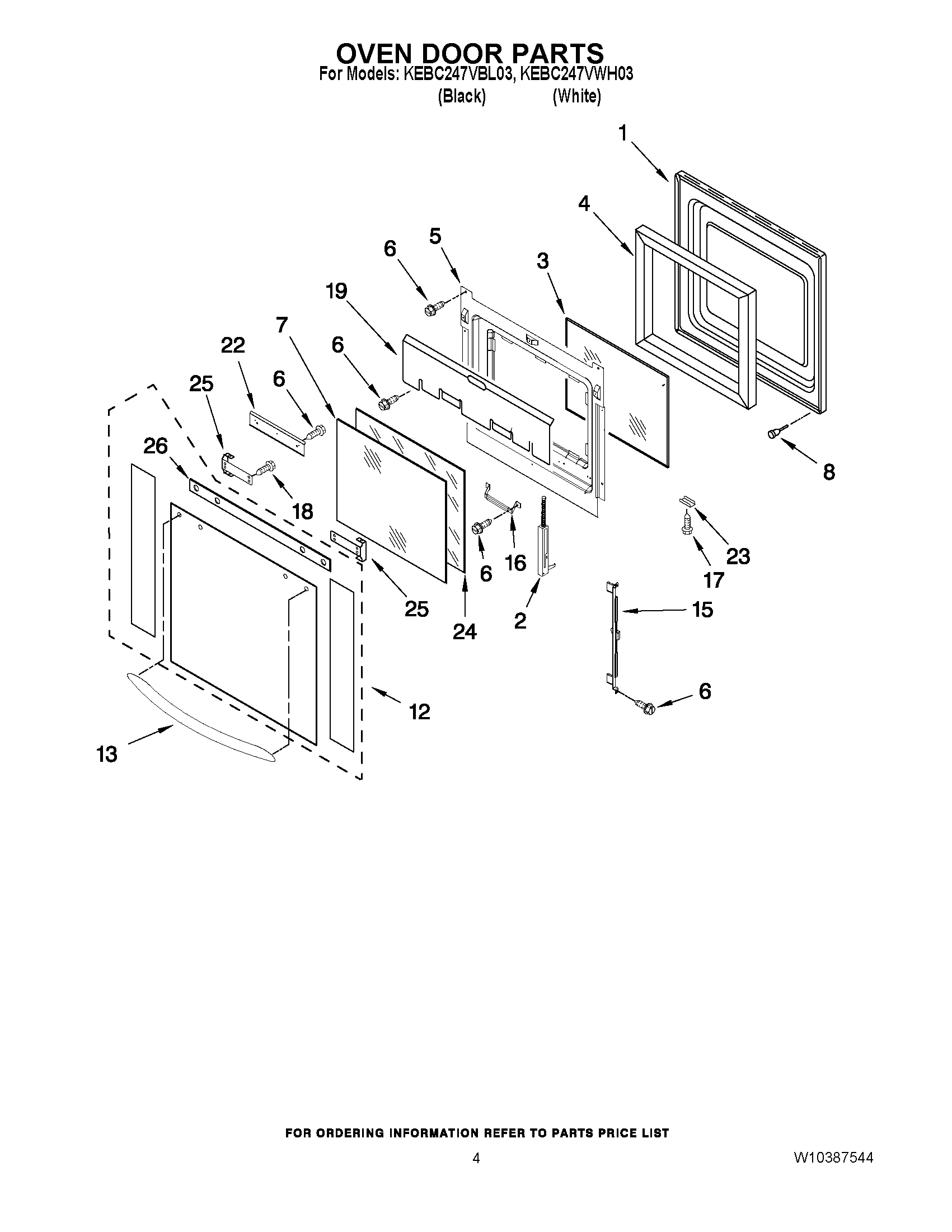

KEBC247VBL03 03 – OVEN DOOR PARTS

KEBC247VBL03 03 – OVEN DOOR PARTS

Written by

in

KEBC247VBL03 03 – OVEN DOOR PARTS

Products

PositionProduct
1WP8303698 Whirlpool Door Liner
29760569 Whirlpool Door Hinge
29760570 Whirlpool Door Hinge
3WP4449247 Whirlpool Inner Door Glass
4W11688413 Whirlpool Insulation
54457130 Whirlpool Oven Retainer
6WP4449809 Whirlpool Screw
7WP9759223 Whirlpool Door Glass
84448520 Whirlpool Oven Bumper
12Door Glass, Assy (White Model)
12Door Glass, Assy (Black Model)
13Door Handle (White)
13Door Handle (Black)
15WP9759229 Whirlpool Mounting Bracket
16Bracket (3rd Glsss)
17WP3400832 Whirlpool Screw
18WPW10132940 Whirlpool Dishwasher Screw
194457101 Whirlpool Oven Shield
224457112 Whirlpool Oven Heat Shield
23RETAINER, CLIP (WHITE)
23RETAINER, CLIP (BLACK)
24WP9759226 Whirlpool Door Glass
25Bracket, Handle (L.Hand)
254455803 Whirlpool Oven Bracket
26Seal, Door
