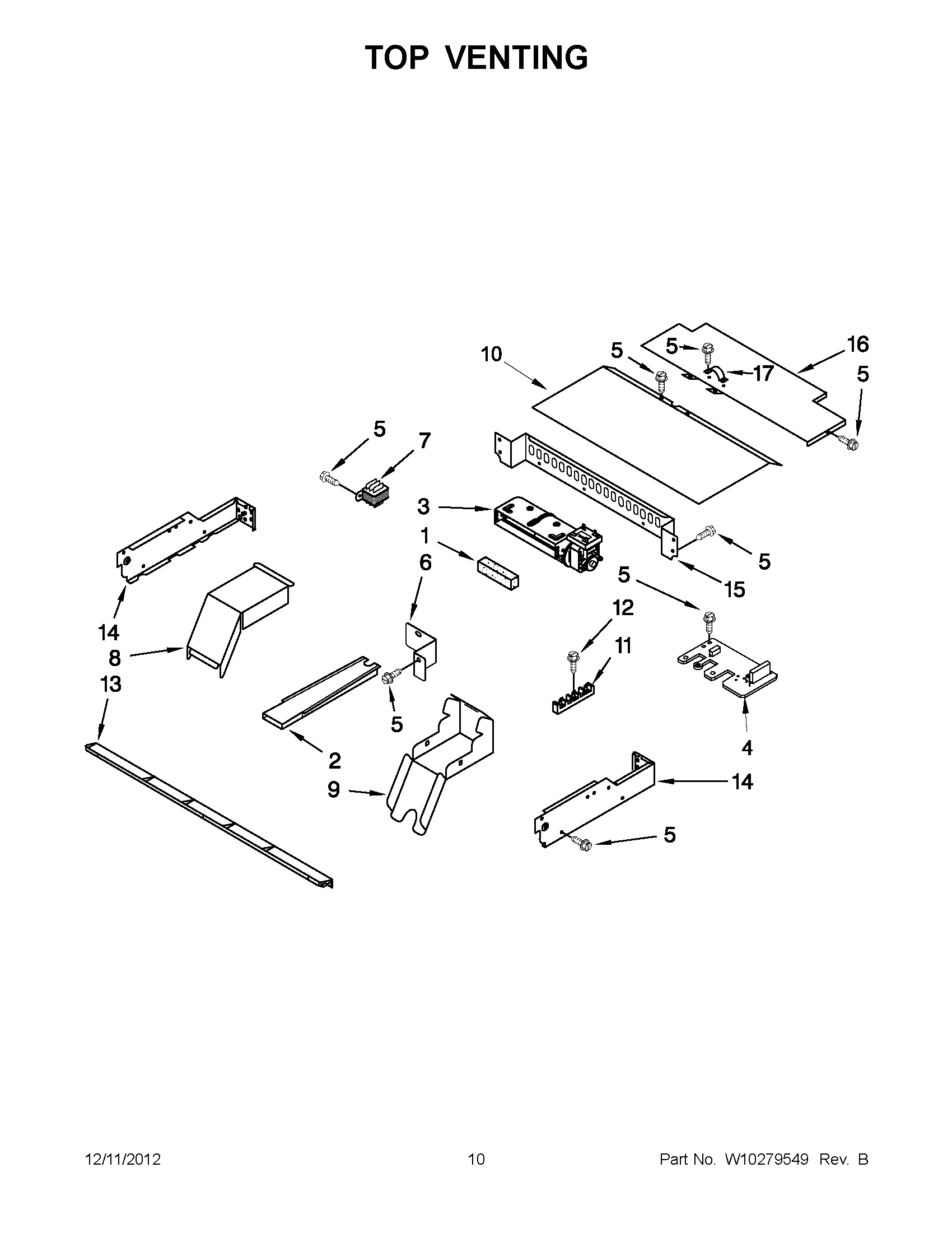

KEBC247VSS02 05 – TOP VENTING

Products

Position	Product
1	W10491987 Whirlpool Foam Seal
2	4451759 Whirlpool Oven Exhaust Vent
3	WPW10176670 Whirlpool Blower
3	WPW10016550 Whirlpool Blower Cooling Fan
4	WP4451985 Whirlpool Noise Filter Board
5	WP4449809 Whirlpool Screw
6	8302390 Whirlpool Support Bracket
7	Transformer
8	4455178 Whirlpool Oven Top Elbow
9	4455177 Whirlpool Oven Bottom Elbow
10	Cover, Top Front
11	BLOCK, TERMINAL
12	Screw
13	4448547 Whirlpool Oven Vent Control
14	W10755214 Whirlpool Side Complete
14	W10790240 Whirlpool Side Assembly Complete
15	Back, Control
16	4450549 Whirlpool Oven Top Cover
17	4448664 Whirlpool Oven Mounting Bracket
