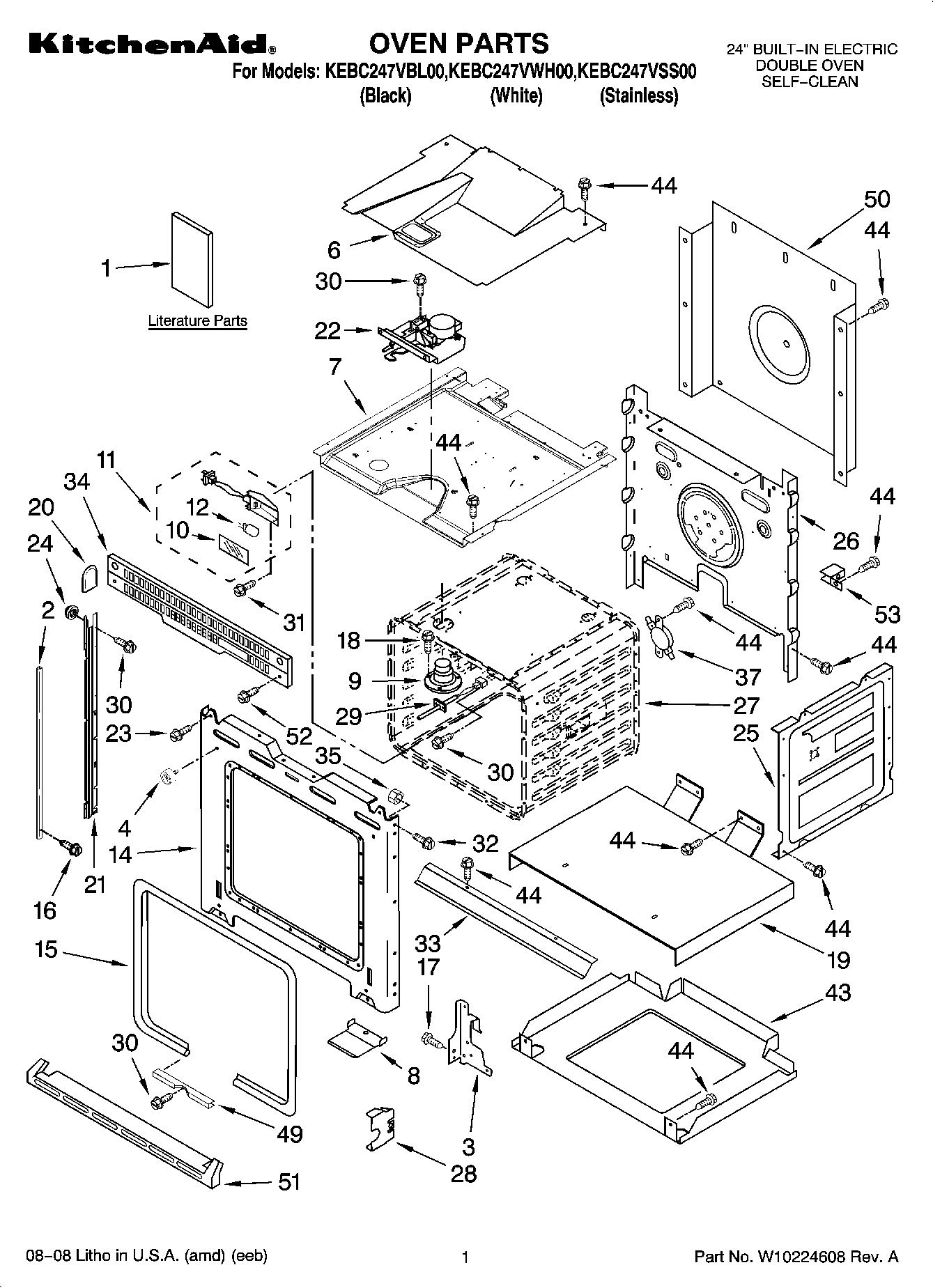

KEBC247VWH00 01 – OVEN PARTS

Products

Position	Product
	WP4450363 Whirlpool Insulation
	WPL ARI82344A2
	WP4449314 Whirlpool Insulation
	WPL ARI82343A3
1	Installation Instructions (Bottom Trim)
1	Installation Instructions
1	Tech Sheet
1	Owners Manual (English)
1	Owners Manual (French)
1	SAFER COOKING TIPS (ENGLISH
1	Easy Set Guide
1	Safer Cooking Tips (French)
2	Trim, Side (LH Black)
2	Trim, Side Right (White)
2	Trim, Side Left (White)
2	WPW10144985 Whirlpool Trim
2	WPW10144986 Whirlpool Trim Assembly
2	WP4455426 Whirlpool Trim
3	WP4455606 Whirlpool Right Hand Hinge
3	WP4455605 Whirlpool Left Hand Hinge
4	W10105790 Whirlpool Bumper
6	8302347 Whirlpool Vent Panel
7	4455863 Whirlpool Oven Top Assembly
8	W10145009 Whirlpool Vent Deflector
8	4455807 Whirlpool Oven Vent Deflector
9	W10861715 Whirlpool Vent Tube
10	W10169756 Whirlpool Light Lens
11	WPW10307114 Whirlpool Light
12	BULB-LIGHT
14	9760754 Whirlpool Oven Front Frame
15	WP4455380 Whirlpool Door Gasket
16	WP8281236 Whirlpool Screw
17	WP4449743 Whirlpool Screw
18	SCREW
19	4451476 Whirlpool Support
20	Cap, Spacer
21	814374 Whirlpool Oven Rail Mount
21	814373 Whirlpool Oven Rail Mount
22	WP9760889 Whirlpool Door Latch
23	Screw
24	WP4448444 Whirlpool Grommet
25	W10782197 Whirlpool Side Panel
26	4452232 Whirlpool Oven Rear Cover
27	Liner, Oven (Not serviceable)
28	4452152 Whirlpool Oven Mounting Bracket
29	WPW10131825 Whirlpool Oven Temperature Sensor
30	WP4449154 Whirlpool Screw
31	4449748 Whirlpool Oven Screw
32	WP4450038 Whirlpool Screw
33	Deflector, Vent
34	W10358914 Whirlpool Oven Vent
35	WP4450118 Whirlpool Nut
37	WP9759242 Whirlpool Thermostat
43	4450525 Whirlpool Oven Bottom Assembly
44	WP4449809 Whirlpool Screw
49	WP4448933 Whirlpool Retainer
50	WP4451747 Whirlpool Rear Cover
51	Assembly, Vent Bottom Trim (Stainless)
51	Trim, Bottom (White Model)
51	Trim, Bottom (Black Model)
52	WP3400832 Whirlpool Screw
53	WPL 4449845
