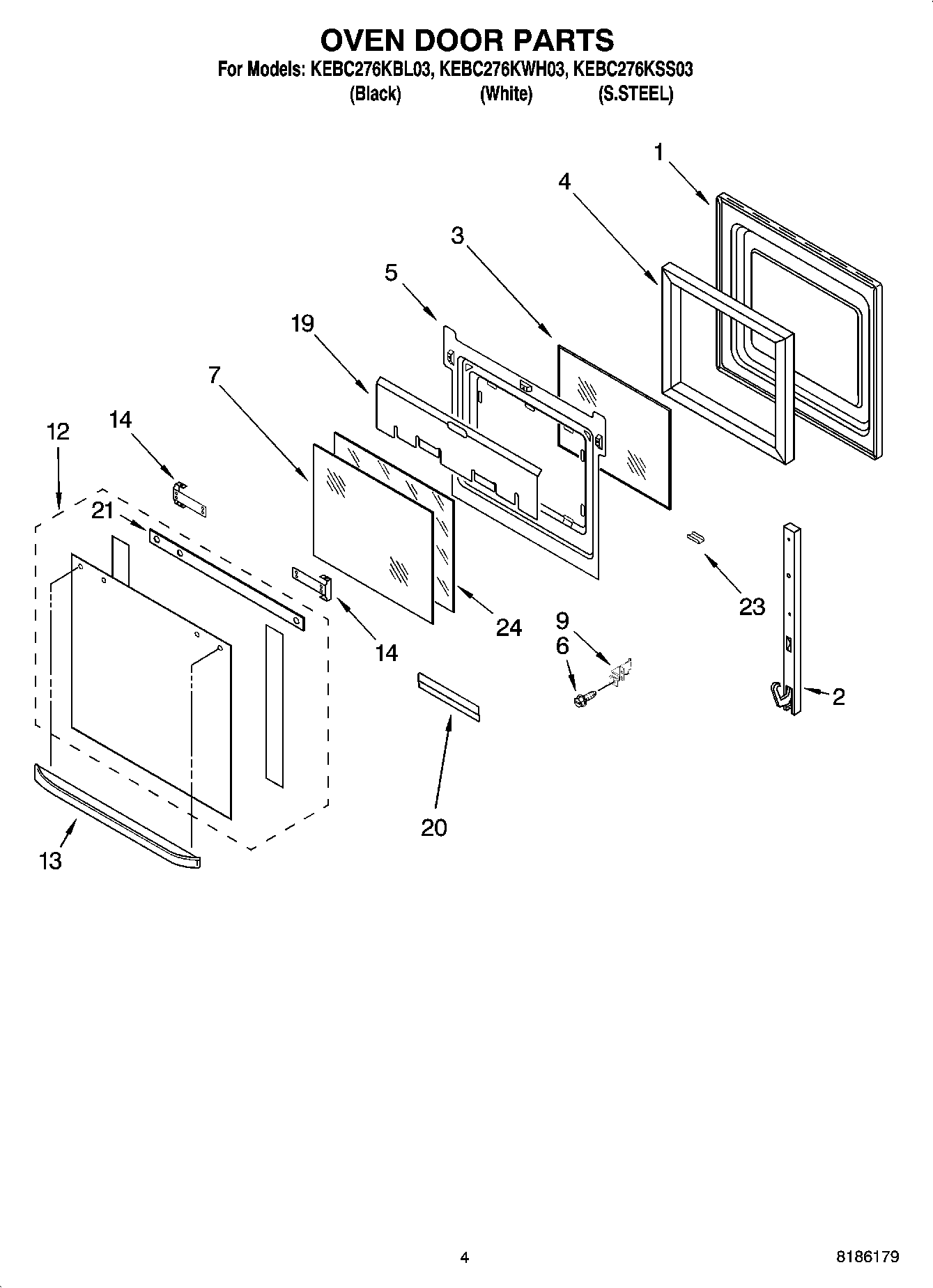

KEBC276KBL03 03 – OVEN DOOR PARTS

Products

Position	Product
	NOTE: The screws and nuts required to attach a part are listed immediately following that part.
1	Door Liner
2	WP9760571 Whirlpool Door Hinge
2	HINGE-DOOR
2	HINGE-DOOR LH/SS DOOR SPRING
2	WP9760572 Whirlpool Door Hinge
2	WP4449743 Whirlpool Screw
3	WP4449253 Whirlpool Glass Window
4	Insulation, Sides
5	Retainer, Glass
7	WP4449257 Whirlpool Door Glass
9	Retainer, Glass
12	Glass, Outer (White)
12	Glass, Outer (Black)
12	WP4452315 Whirlpool Door Glass
13	Handle (S.Steel)
13	Handle, Door (Black)
13	Handle, Door (White)
14	Bracket, Handle (L.Hand)
14	WPW10132940 Whirlpool Dishwasher Screw
14	4455803 Whirlpool Oven Bracket
19	Shield, Heat
20	Retainer, Glass
20	WP4449809 Whirlpool Screw
21	Seal, Top
23	Clip, Retainer (Black Model)
23	Clip, Retainer (White Model)
23	Retainer, Glass-Clip (Stainless Steel)
24	Glass. Inner
