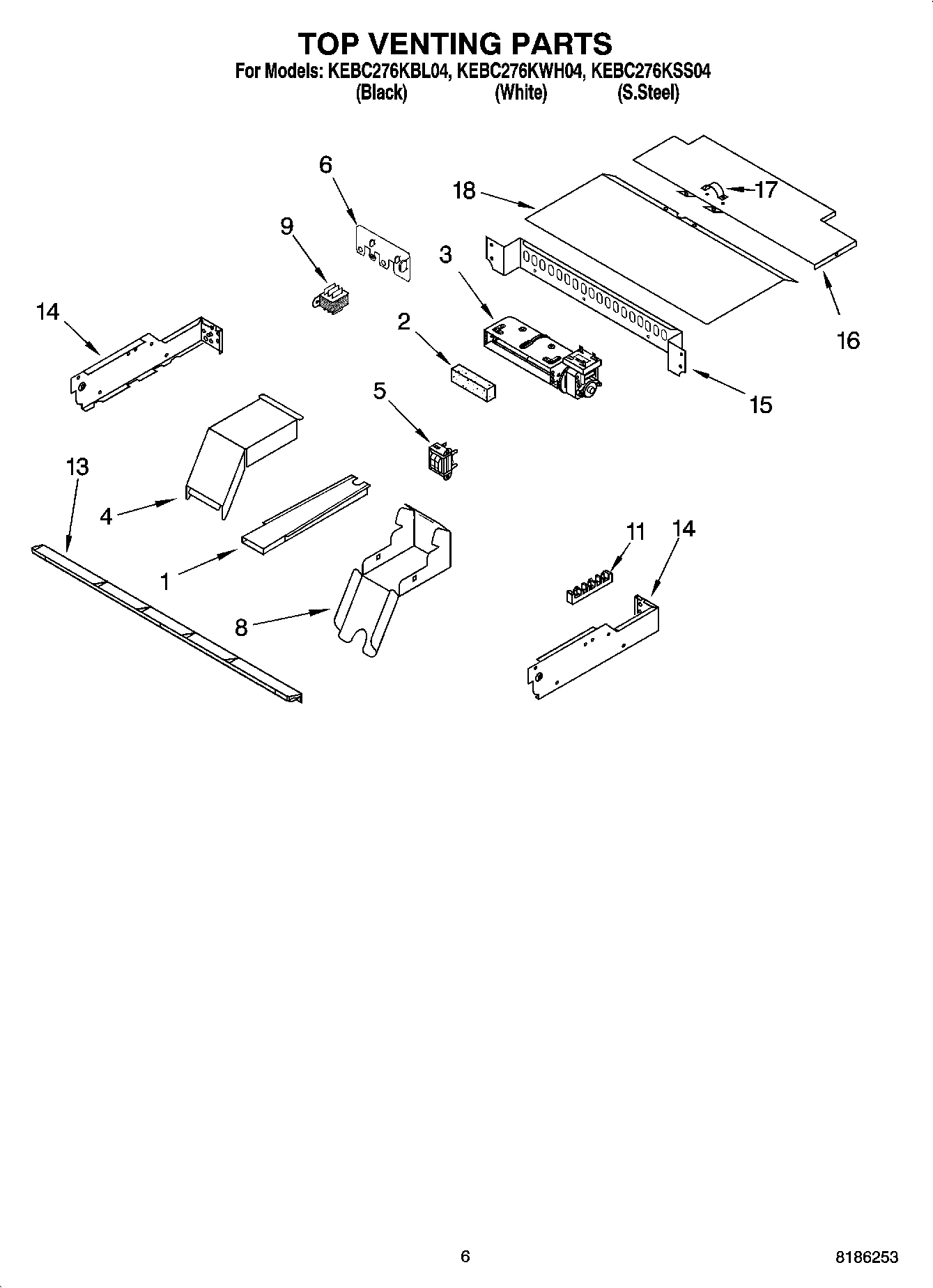

KEBC276KBL04 05 – TOP VENTING PARTS, OPTIONAL PARTS

KEBC276KBL04 05 – TOP VENTING PARTS, OPTIONAL PARTS

Written by

in

KEBC276KBL04 05 – TOP VENTING PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI82374A7
18 Ga. 80~c Rating (Red)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
WP261869 Whirlpool Microwave Paint
Wire (14 Ga. 200 c Brown)
1
WPL ARI82373A5
WPL ARI82372A3
WPL 8301873
8301909 Whirlpool Oven Wire Harness
WPL ARI82375A6
261900 Whirlpool Microwave Spray
4451761 Whirlpool Oven Support Bracket
WPL 591014
242831 Whirlpool Oven Wire
Spacer, Harness
Conduit, Double
4450800 Whirlpool Oven Screw
350930 Whirlpool White Spray Paint
4448664 Whirlpool Oven Mounting Bracket
72017 Whirlpool Appliance Touch-Up Paint White
WP4449809 Whirlpool Screw
Wire, 25“ Roll (White 14 GA.)
WP112432 Whirlpool Nut Assembly
Wire, 25` Roll (Red 14 Ga.)
WPW10339879 Whirlpool Wire Tie
285006 Whirlpool Spray
72032 Whirlpool Touch Up Paint Black
WP4448950 Whirlpool Screw
Wire, 25` Roll (Black 14 Ga.)
814381 Whirlpool Pin
WP482338 Whirlpool Refrigerator Adhesive
14451759 Whirlpool Oven Exhaust Vent
2W10491987 Whirlpool Foam Seal
3WPW10176670 Whirlpool Blower
3WPW10016550 Whirlpool Blower Cooling Fan
34455191 Whirlpool Oven Mounting Plate
44455178 Whirlpool Oven Top Elbow
5WP9760588 Whirlpool Transformer
6WP4451985 Whirlpool Noise Filter Board
84455177 Whirlpool Oven Bottom Elbow
9Transformer, Control
11WP8203546 Whirlpool Terminal Block
11Screw
13Vent, (Control Panel)
14WP4449154 Whirlpool Screw
14W10790240 Whirlpool Side Assembly Complete
14W10755214 Whirlpool Side Complete
15Back, Control
16Cover, Top Rear
18Cover, Top Front
