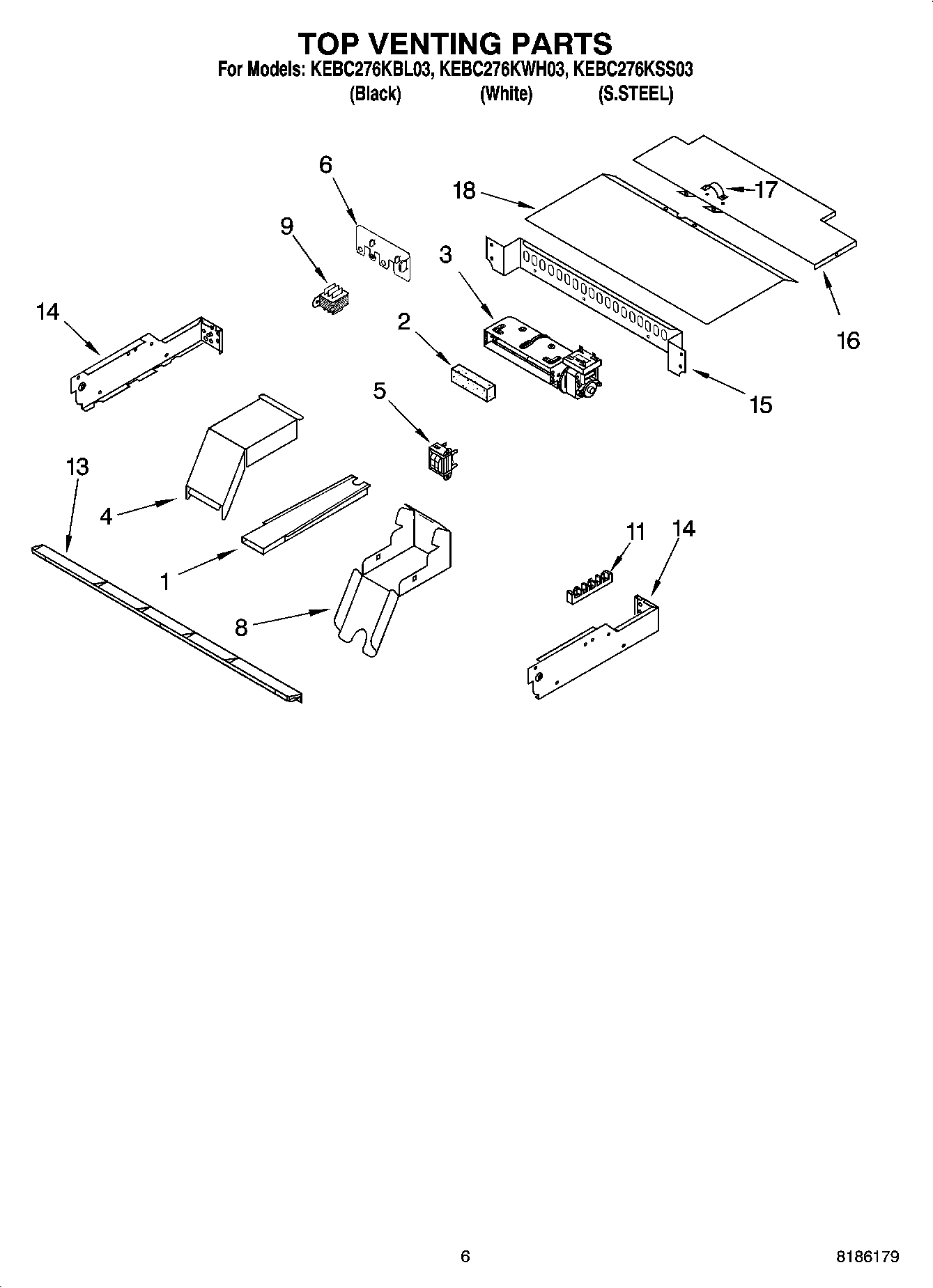

KEBC276KSS03 05 – TOP VENTING PARTS, OPTIONAL PARTS

KEBC276KSS03 05 – TOP VENTING PARTS, OPTIONAL PARTS

Written by

in

KEBC276KSS03 05 – TOP VENTING PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI82391A9
18 Ga. 80~c Rating (Red)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
WP261869 Whirlpool Microwave Paint
Wire (14 Ga. 200 c Brown)
1
WPL 591014
WPL ARI82390A8
WPL ARI82389A8
WPL ARI82388A4
WPL 8301873
8301909 Whirlpool Oven Wire Harness
261900 Whirlpool Microwave Spray
4451761 Whirlpool Oven Support Bracket
WPL ARI82392A8
242831 Whirlpool Oven Wire
Spacer, Harness
WPW10339879 Whirlpool Wire Tie
4450800 Whirlpool Oven Screw
WP4449809 Whirlpool Screw
350930 Whirlpool White Spray Paint
72017 Whirlpool Appliance Touch-Up Paint White
4448664 Whirlpool Oven Mounting Bracket
Wire, 25“ Roll (White 14 GA.)
Wire, 25` Roll (Red 14 Ga.)
Wire, 25` Roll (Black 14 Ga.)
WP112432 Whirlpool Nut Assembly
285006 Whirlpool Spray
72032 Whirlpool Touch Up Paint Black
WP482338 Whirlpool Refrigerator Adhesive
Conduit, Double
WP4448950 Whirlpool Screw
814381 Whirlpool Pin
14451759 Whirlpool Oven Exhaust Vent
2W10491987 Whirlpool Foam Seal
3Blower
3WPW10016550 Whirlpool Blower Cooling Fan
34455191 Whirlpool Oven Mounting Plate
44455178 Whirlpool Oven Top Elbow
5WP9760588 Whirlpool Transformer
6WP4451985 Whirlpool Noise Filter Board
84455177 Whirlpool Oven Bottom Elbow
9Transformer, Control
11Screw
11WP8203546 Whirlpool Terminal Block
13Vent, (Control Panel)
14WP4449154 Whirlpool Screw
14W10755214 Whirlpool Side Complete
14W10790240 Whirlpool Side Assembly Complete
15Back, Control
16Cover, Top Rear
18Cover, Top Front
