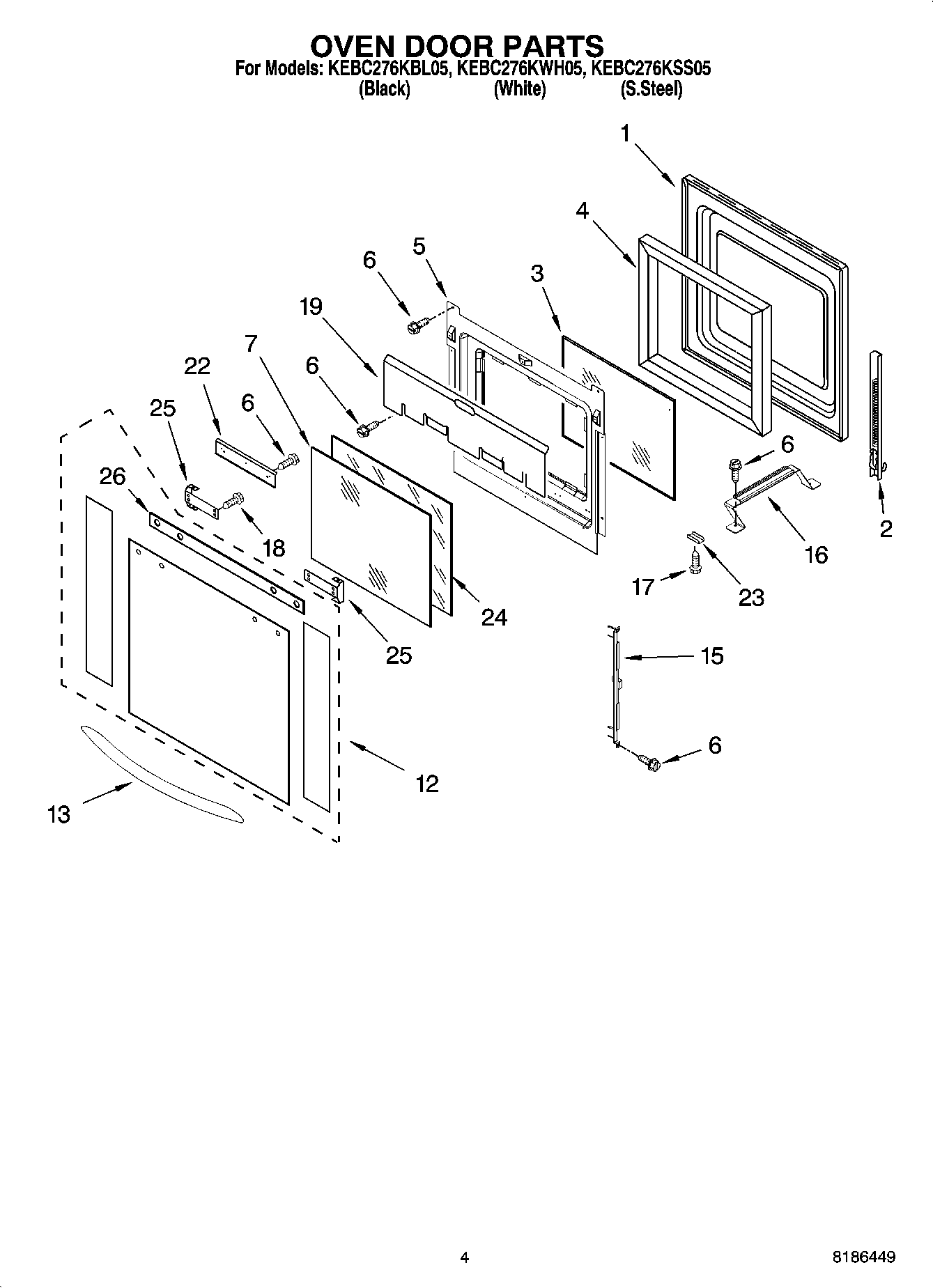

KEBC276KSS05 03 – OVEN DOOR PARTS

Products

Position	Product
1	Door Liner
2	WP9760572 Whirlpool Door Hinge
2	WP9760576 Whirlpool Door Hinge (Left)
2	HINGE-DOOR
2	WP9760571 Whirlpool Door Hinge
3	WP4449253 Whirlpool Glass Window
4	Insulation, Sides
5	Retainer, Glass
6	WP4449809 Whirlpool Screw
7	Glass, Inner
12	Glass, Outer (White)
12	Glass, Outer (Black)
12	WP4452315 Whirlpool Door Glass
13	Handle, Door (White)
13	Handle, Door (Black)
13	Handle (S.Steel)
15	WP9759229 Whirlpool Mounting Bracket
16	Bracket (3rd Glsss)
17	WP3400832 Whirlpool Screw
18	WPW10132940 Whirlpool Dishwasher Screw
19	Shield, Heat
22	Shield, Heat (Bottom)
23	Clip, Retainer (White Model)
23	Retainer, Glass-Clip (Stainless Steel)
23	Clip, Retainer (Black Model)
24	WP9759227 Whirlpool Glass Door
25	Bracket, Handle (L.Hand)
25	4455803 Whirlpool Oven Bracket
26	Seal, Top
