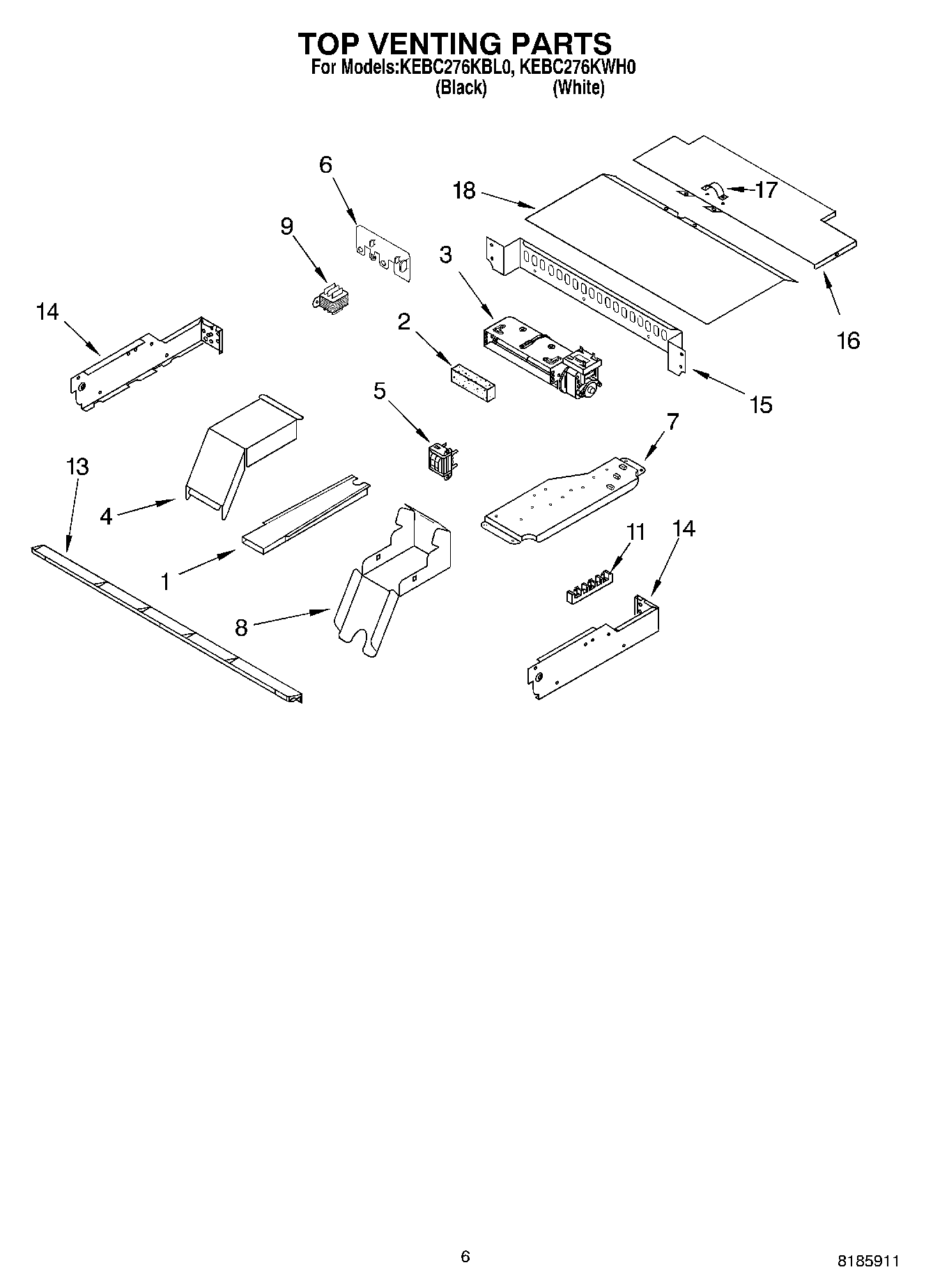

KEBC276KWH0 05 – TOP VENTING

KEBC276KWH0 05 – TOP VENTING

Written by

in

KEBC276KWH0 05 – TOP VENTING

Products

PositionProduct
14451759 Whirlpool Oven Exhaust Vent
2W10491987 Whirlpool Foam Seal
34455191 Whirlpool Oven Mounting Plate
3WP4455352 Whirlpool Mounting Bracket
3Blower
3WPW10016550 Whirlpool Blower Cooling Fan
44455178 Whirlpool Oven Top Elbow
5WP9760588 Whirlpool Transformer
6WP4451985 Whirlpool Noise Filter Board
7Plate, Mounting
84455177 Whirlpool Oven Bottom Elbow
9Transformer, Control
11Screw
11WP8203546 Whirlpool Terminal Block
13Vent, (Control Panel)
14WP4449154 Whirlpool Screw
14W10755214 Whirlpool Side Complete
14W10790240 Whirlpool Side Assembly Complete
15Back, Control
16Cover, Top Rear
18Wire (12 Ga. 150 c Black)
1818 Ga. 80~c Rating (Red)
18261900 Whirlpool Microwave Spray
18Harness, Wire (
18Harness, Wire (Latch)
18Wire (14 Ga. 200 c Brown)
181
18WPL 591014
18Wire, 25` Roll (Red 14 Ga.)
184451761 Whirlpool Oven Support Bracket
18Cover, Top Front
18Wire (14 Ga. 150 c Yellow)
18285006 Whirlpool Spray
18WPW10339879 Whirlpool Wire Tie
184450800 Whirlpool Oven Screw
184448664 Whirlpool Oven Mounting Bracket
18Wire, 25“ Roll (White 14 GA.)
18Wire, 25` Roll (Black 14 Ga.)
18WP112432 Whirlpool Nut Assembly
18WP4449809 Whirlpool Screw
1872017 Whirlpool Appliance Touch-Up Paint White
1872032 Whirlpool Touch Up Paint Black
18WP482338 Whirlpool Refrigerator Adhesive
18814381 Whirlpool Pin
18Wire (14 Ga. 150 c Orange)
18Wire (14 Ga. 150 c Green)
18Wire (14 Ga. 150 c Brown)
18Wire (14 Ga. 150 c Blue)
18WP261869 Whirlpool Microwave Paint
18242831 Whirlpool Oven Wire
18Spacer, Harness
18Conduit, Double
18WP4448950 Whirlpool Screw
18350930 Whirlpool White Spray Paint
