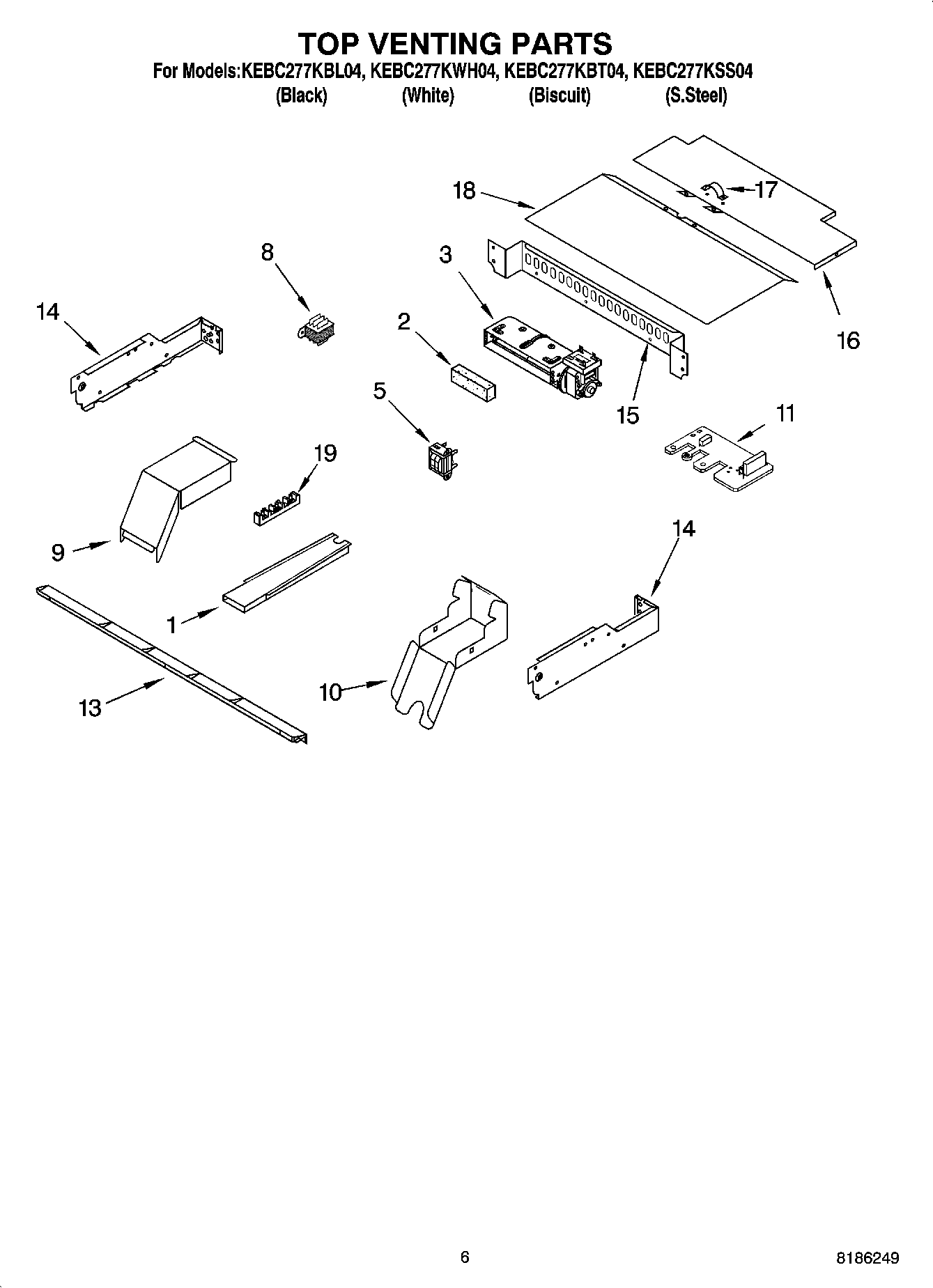

KEBC277KBL04 05 – TOP VENTING PARTS, MISCELLANEOUS PARTS

Products

PositionProduct
WPL ARI82464A1
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
WP261869 Whirlpool Microwave Paint
242831 Whirlpool Oven Wire
18 Ga. 80~c Rating (Red)
Wire (14 Ga. 200 c Brown)
1
WPL ARI82463A7
WPL ARI82462A4
WPL 8301872
8301909 Whirlpool Oven Wire Harness
WPL ARI82465A8
261900 Whirlpool Microwave Spray
4451761 Whirlpool Oven Support Bracket
WPL 591014
Spacer, Harness
16515 Whirlpool Clip
WPW10339879 Whirlpool Wire Tie
4450800 Whirlpool Oven Screw
350930 Whirlpool White Spray Paint
4448664 Whirlpool Oven Mounting Bracket
72017 Whirlpool Appliance Touch-Up Paint White
Wire, 25` Roll (Black 14 Ga.)
Wire, 25“ Roll (White 14 GA.)
Wire, 25` Roll (Red 14 Ga.)
285006 Whirlpool Spray
72032 Whirlpool Touch Up Paint Black
Conduit, Double
WP482338 Whirlpool Refrigerator Adhesive
WP4448950 Whirlpool Screw
814381 Whirlpool Pin
14451759 Whirlpool Oven Exhaust Vent
2W10491987 Whirlpool Foam Seal
3WPW10176670 Whirlpool Blower
34455191 Whirlpool Oven Mounting Plate
3WPW10016550 Whirlpool Blower Cooling Fan
5WP9760588 Whirlpool Transformer
8Transformer, Control
94455178 Whirlpool Oven Top Elbow
104455177 Whirlpool Oven Bottom Elbow
11WP4451985 Whirlpool Noise Filter Board
13Vent, (Control Panel)
14WP4449154 Whirlpool Screw
14W10755214 Whirlpool Side Complete
14W10790240 Whirlpool Side Assembly Complete
15Back, Control
16Cover, Top Rear
17WP112432 Whirlpool Nut Assembly
18WP4449809 Whirlpool Screw
18Cover, Top Front
19WP8203546 Whirlpool Terminal Block
19Screw
