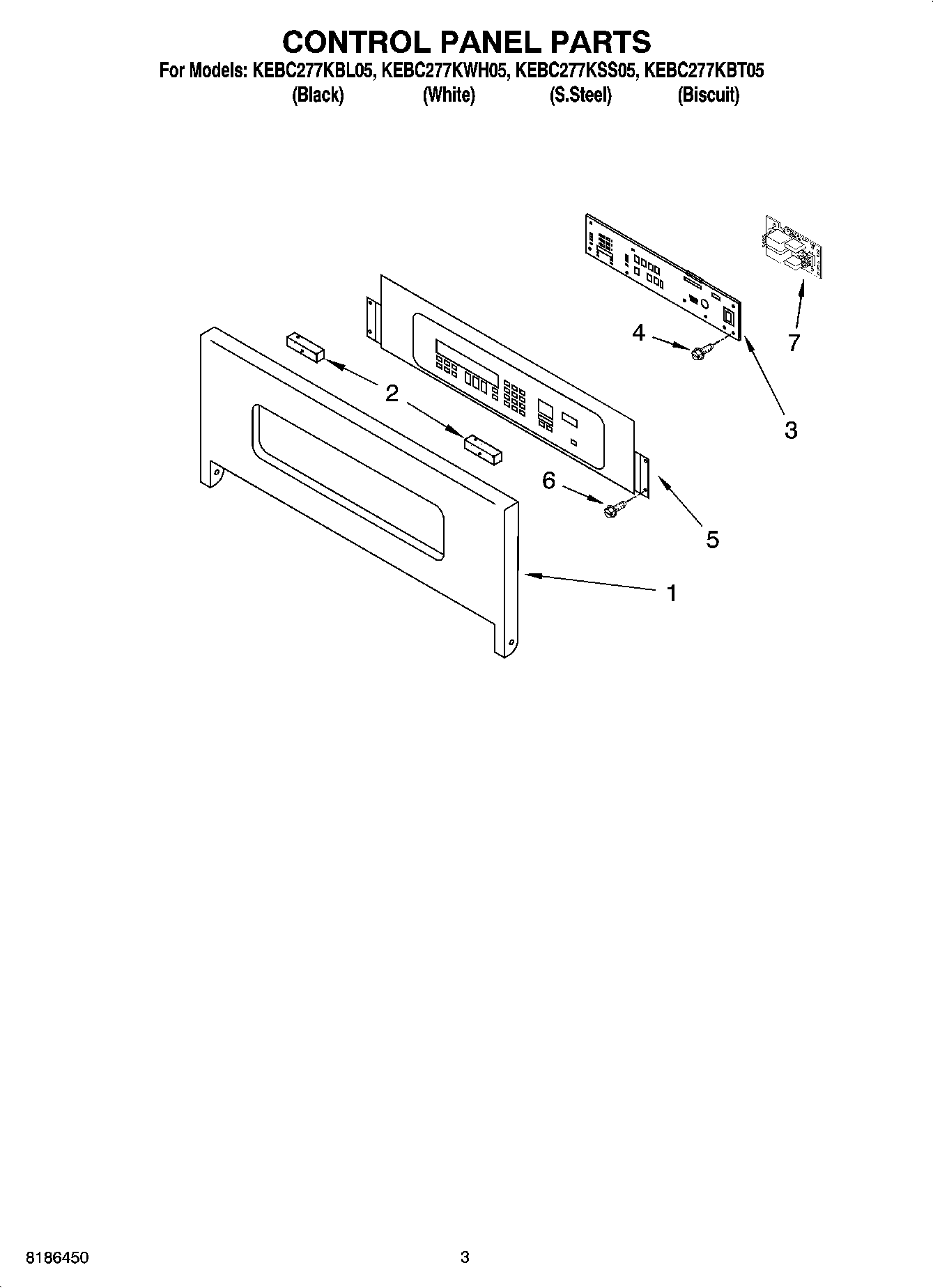

KEBC277KBL05 02 – CONTROL PANEL PARTSadmin2025-04-26T09:50:37+00:00KEBC277KBL05 02 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 1 | Panel, Control |
| 1 | Panel, Control (Biscuit) |
| 1 | Panel, Control (White) |
| 1 | Panel, Control (Black) |
| 2 | Spacer, Foam |
| 3 | Assy, Control |
| 4 | WP4449745 Whirlpool Screw |
| 5 | Switch, Membrane (Biscuit) |
| 5 | Switch, Membrane (Black) |
| 5 | Switch, Membrane (White) |
| 5 | Switch, Membrane (S.Steel) |
| 6 | WP3400832 Whirlpool Screw |
| 7 | Latch, Sister Board |
