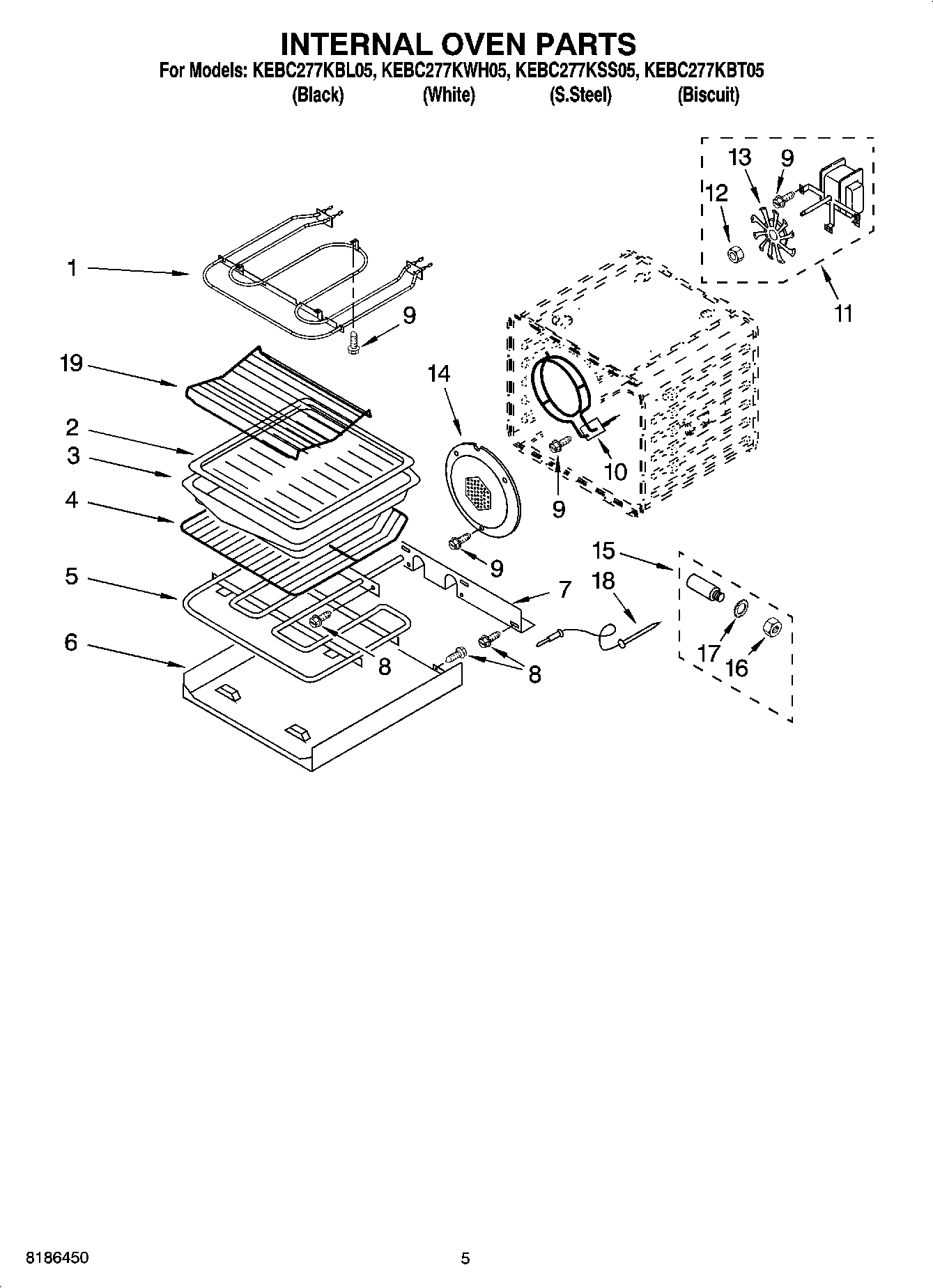

KEBC277KBL05 04 – INTERNAL OVEN PARTS

Products

Position	Product
1	WPW10207400 Whirlpool Broil Element
2	WP3195996 Whirlpool Pan Grid
3	W10737569 Whirlpool Broil Pan
4	Rack, Oven
5	4451175 Whirlpool Bake Element
6	Tray, Hidden Bake
7	4450039 Whirlpool Oven Access Cover
8	WP4449809 Whirlpool Screw
9	WP4449154 Whirlpool Screw
10	WP9760769 Whirlpool Element Assembly
11	Motor Convection
12	Nut
13	WP4452226 Whirlpool Convection Fan
14	WPW10160821 Whirlpool Fan Cover
15	8186589 Whirlpool Jack Probe
16	WP9755546 Whirlpool Locknut
17	WP9755547 Whirlpool Lockwasher
18	WP9755542 Whirlpool Oven Meat Probe
19	Rack, Roasting
