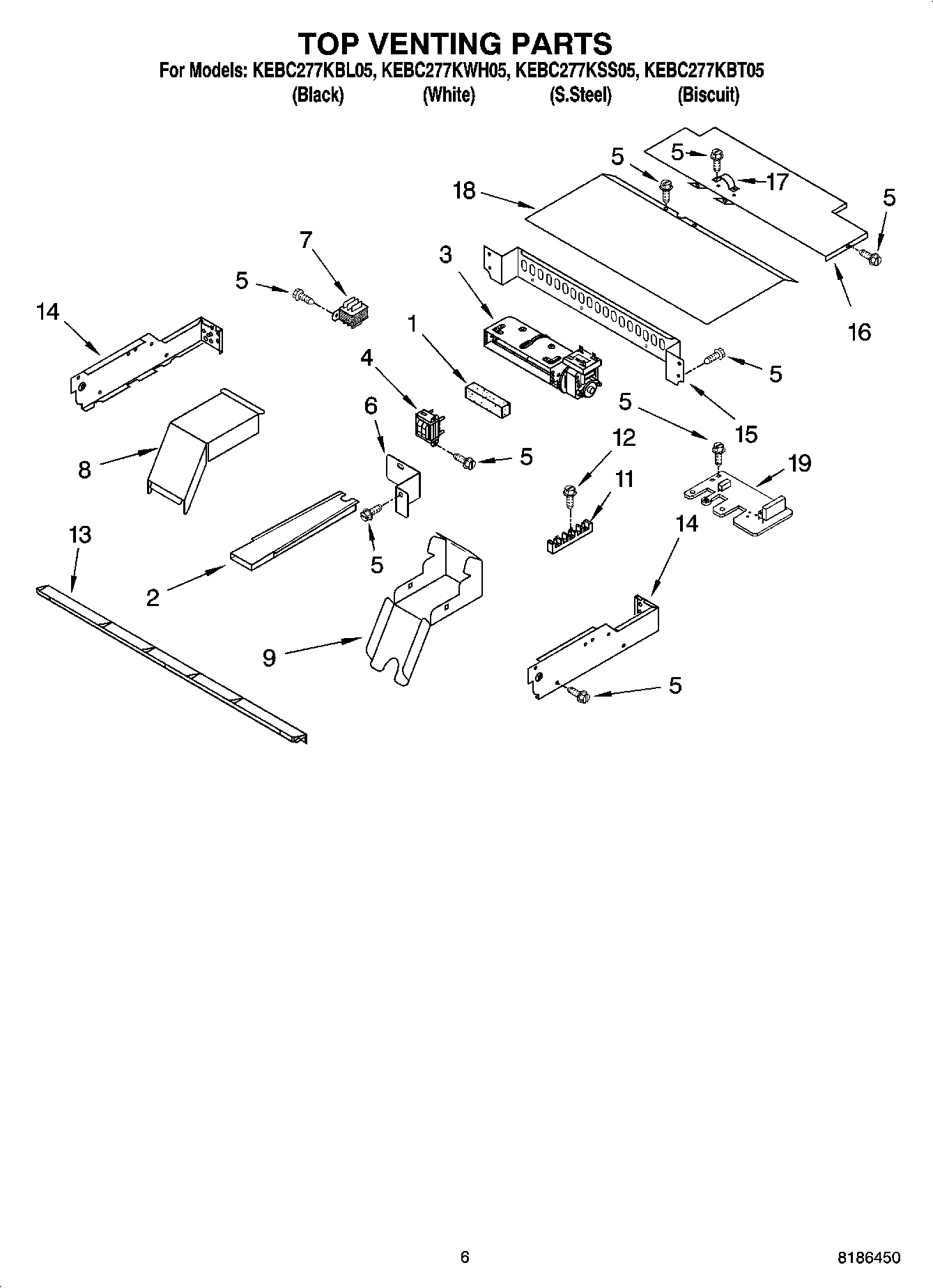

KEBC277KBL05 05 – TOP VENTING PARTS, OPTIONAL PARTS

KEBC277KBL05 05 – TOP VENTING PARTS, OPTIONAL PARTS

Written by

in

KEBC277KBL05 05 – TOP VENTING PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI82470A9
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
WPL 9759300
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
WPL 591014
4451761 Whirlpool Oven Support Bracket
261900 Whirlpool Microwave Spray
WPL ARI82469A7
WPL ARI82468A9
WPL 9759302
WPL 9759304
WPL 9759301
WPL 8301872
8301909 Whirlpool Oven Wire Harness
WPL ARI82471A5
WP261869 Whirlpool Microwave Paint
242831 Whirlpool Oven Wire
Spacer, Harness
4450800 Whirlpool Oven Screw
285006 Whirlpool Spray
4448664 Whirlpool Oven Mounting Bracket
Wire, 25` Roll (Red 14 Ga.)
Wire, 25` Roll (Black 14 Ga.)
WP112432 Whirlpool Nut Assembly
72032 Whirlpool Touch Up Paint Black
WP4449809 Whirlpool Screw
WP482338 Whirlpool Refrigerator Adhesive
72017 Whirlpool Appliance Touch-Up Paint White
16515 Whirlpool Clip
4452400 Whirlpool Microwave Wire Harness
Conduit, Double
350930 Whirlpool White Spray Paint
WP4448950 Whirlpool Screw
814381 Whirlpool Pin
WPW10339879 Whirlpool Wire Tie
1W10491987 Whirlpool Foam Seal
24451759 Whirlpool Oven Exhaust Vent
3WPW10176670 Whirlpool Blower
3WPW10016550 Whirlpool Blower Cooling Fan
4WP9760588 Whirlpool Transformer
68302390 Whirlpool Support Bracket
7Transformer, Control
84455178 Whirlpool Oven Top Elbow
94455177 Whirlpool Oven Bottom Elbow
11WP8203546 Whirlpool Terminal Block
12Screw
13Vent, (Control Panel)
14W10790240 Whirlpool Side Assembly Complete
14W10755214 Whirlpool Side Complete
15Back, Control
16Cover, Top Rear
18Cover, Top Front
19WP4451985 Whirlpool Noise Filter Board
