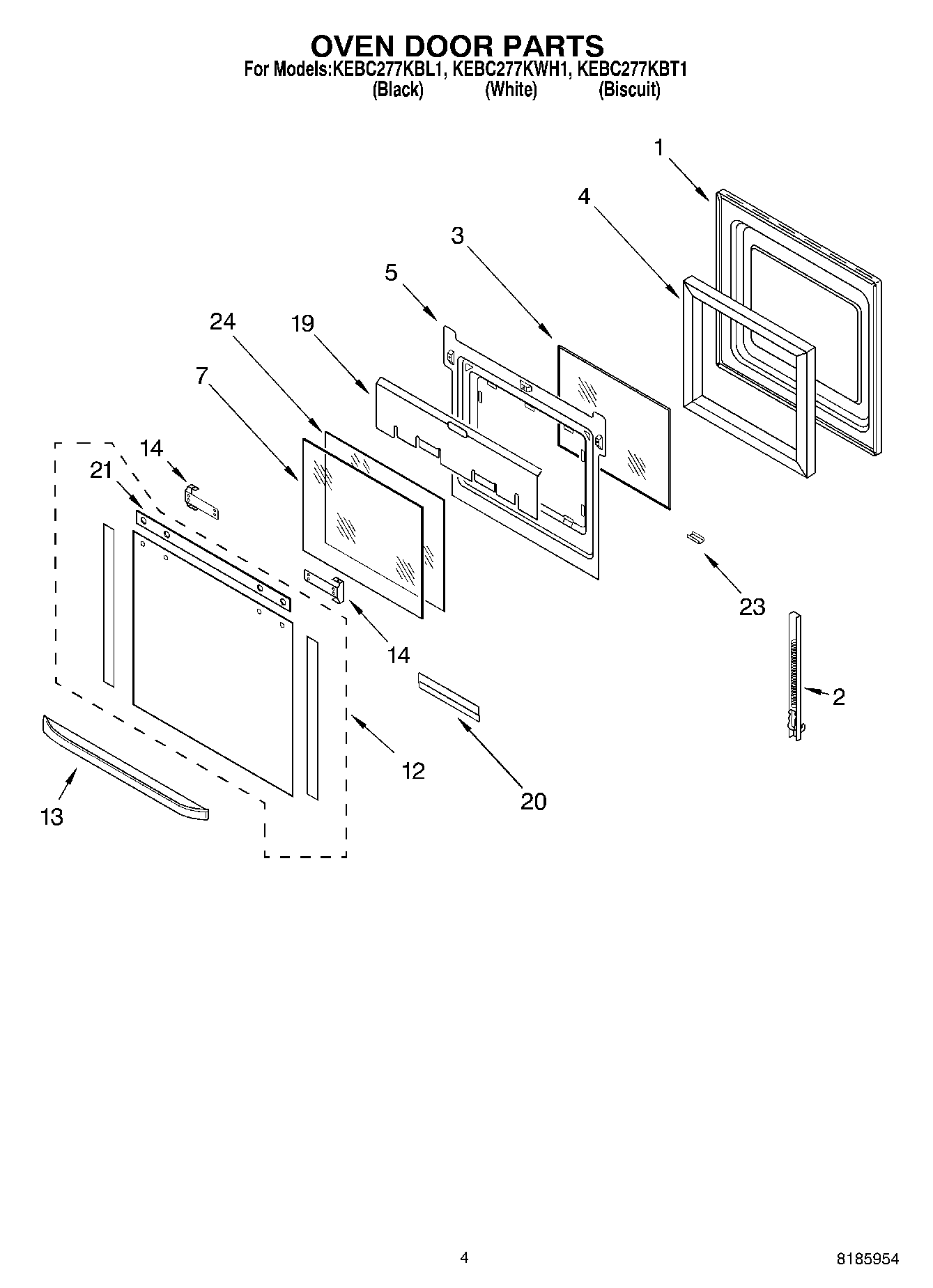

KEBC277KBL1 03 – OVEN DOOR

KEBC277KBL1 03 – OVEN DOOR

Written by

in

KEBC277KBL1 03 – OVEN DOOR

Products

PositionProduct
1Door Liner
2WP9760571 Whirlpool Door Hinge
2WP4449743 Whirlpool Screw
2WP9760572 Whirlpool Door Hinge
3WP4449253 Whirlpool Glass Window
4Insulation, Sides
5Retainer, Glass
7WP4449257 Whirlpool Door Glass
12Door Glass, Assy (Biscuit)
12Glass, Outer (White)
12Glass, Outer (Black)
13Handle, Door (Black)
13Handle, Door (White)
13Handle, Door (Biscuit)
14Screw
144455803 Whirlpool Oven Bracket
14Bracket, Handle (L.Hand)
19Shield, Heat
20WP4449809 Whirlpool Screw
20Retainer, Glass
21Seal, Top
23Clip, Retainer (White Model)
23Clip, Retainer (Black Model)
23WP3400832 Whirlpool Screw
23RETAINER,GLASS CLIP (BISCUIT)
24Glass, Inner
