KEBC277KBT1 03 – OVEN DOOR

KEBC277KBT1 03 – OVEN DOOR

Written by

in

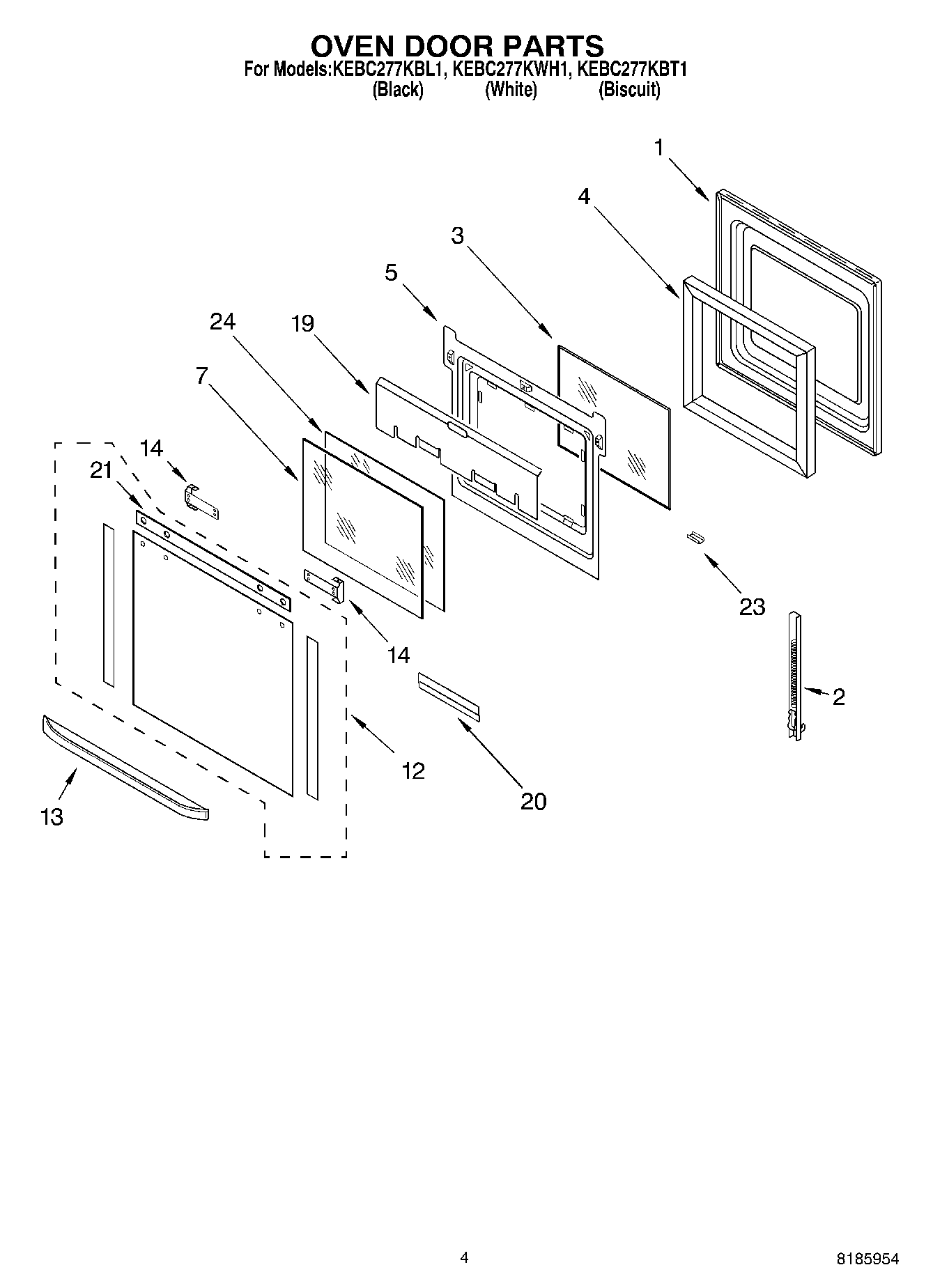

KEBC277KBT1 03 – OVEN DOOR

Products

Position	Product
1	Door Liner
2	WP9760571 Whirlpool Door Hinge
2	WP4449743 Whirlpool Screw
2	WP9760572 Whirlpool Door Hinge
3	WP4449253 Whirlpool Glass Window
4	Insulation, Sides
5	Retainer, Glass
7	WP4449257 Whirlpool Door Glass
12	Door Glass, Assy (Biscuit)
12	Glass, Outer (White)
12	Glass, Outer (Black)
13	Handle, Door (Black)
13	Handle, Door (White)
13	Handle, Door (Biscuit)
14	Screw
14	4455803 Whirlpool Oven Bracket
14	Bracket, Handle (L.Hand)
19	Shield, Heat
20	WP4449809 Whirlpool Screw
20	Retainer, Glass
21	Seal, Top
23	Clip, Retainer (White Model)
23	Clip, Retainer (Black Model)
23	WP3400832 Whirlpool Screw
23	RETAINER,GLASS CLIP (BISCUIT)
24	Glass, Inner
