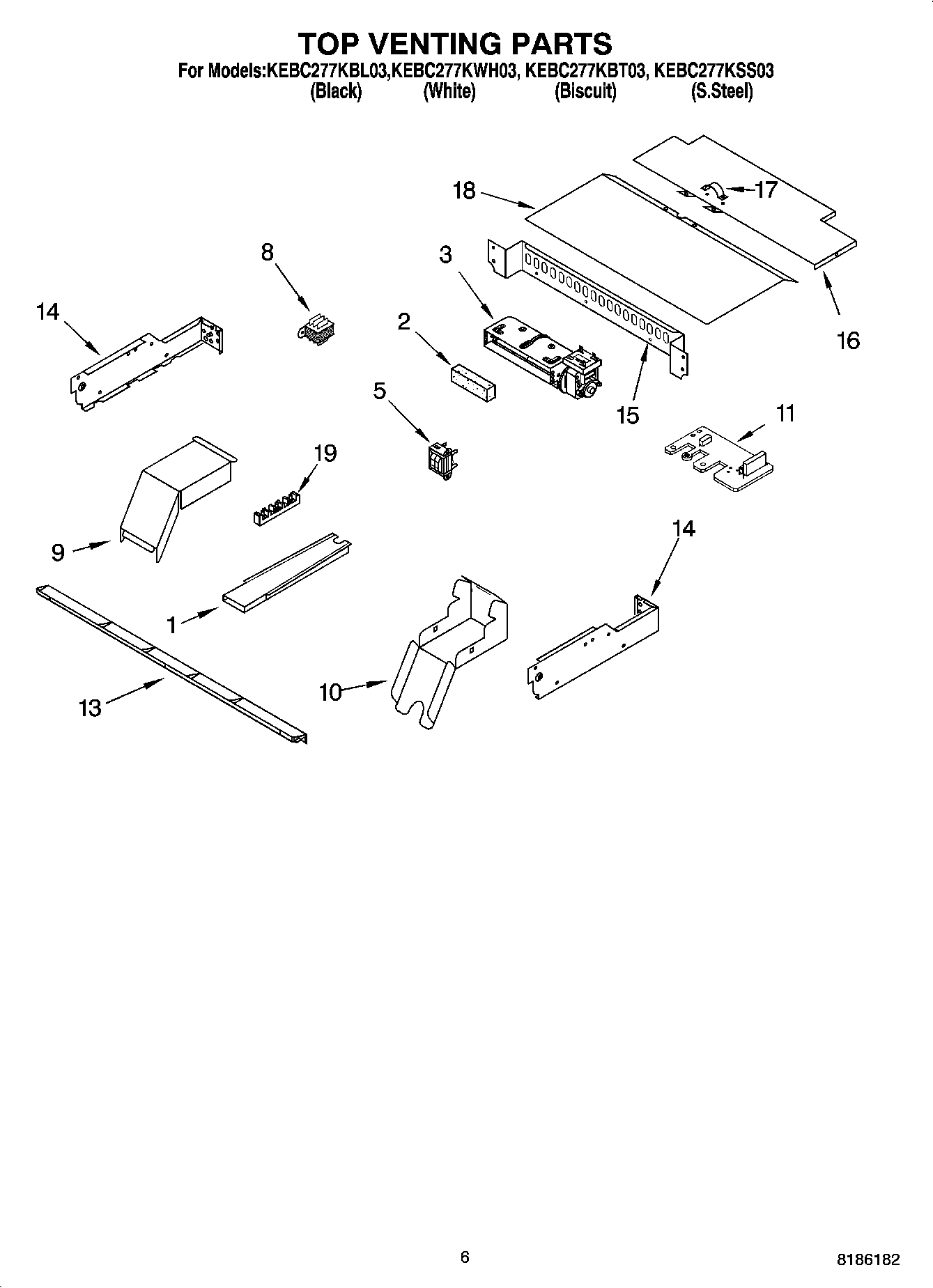

KEBC277KSS03 05 – TOP VENTING PARTS, MISCELLANEOUS PARTS

KEBC277KSS03 05 – TOP VENTING PARTS, MISCELLANEOUS PARTS

Written by

in

KEBC277KSS03 05 – TOP VENTING PARTS, MISCELLANEOUS PARTS

Products

PositionProduct
WPL ARI82515A9
18 Ga. 80~c Rating (Red)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
WP261869 Whirlpool Microwave Paint
Wire (14 Ga. 200 c Brown)
1
WPL 591014
WPL ARI82514A5
WPL ARI82513A3
WPL ARI82512A6
WPL 8301872
8301909 Whirlpool Oven Wire Harness
WPL ARI82516A5
261900 Whirlpool Microwave Spray
4451761 Whirlpool Oven Support Bracket
242831 Whirlpool Oven Wire
Spacer, Harness
16515 Whirlpool Clip
285006 Whirlpool Spray
WPW10339879 Whirlpool Wire Tie
350930 Whirlpool White Spray Paint
4450800 Whirlpool Oven Screw
72017 Whirlpool Appliance Touch-Up Paint White
Wire, 25` Roll (Black 14 Ga.)
Wire, 25` Roll (Red 14 Ga.)
4448664 Whirlpool Oven Mounting Bracket
Wire, 25“ Roll (White 14 GA.)
72032 Whirlpool Touch Up Paint Black
WP482338 Whirlpool Refrigerator Adhesive
Conduit, Double
814381 Whirlpool Pin
WP4448950 Whirlpool Screw
14451759 Whirlpool Oven Exhaust Vent
2W10491987 Whirlpool Foam Seal
3Blower
34455191 Whirlpool Oven Mounting Plate
3WPW10016550 Whirlpool Blower Cooling Fan
3WP4455352 Whirlpool Mounting Bracket
5WP9760588 Whirlpool Transformer
8Transformer, Control
94455178 Whirlpool Oven Top Elbow
104455177 Whirlpool Oven Bottom Elbow
11WP4451985 Whirlpool Noise Filter Board
13Vent, (Control Panel)
14WP4449154 Whirlpool Screw
14W10755214 Whirlpool Side Complete
14W10790240 Whirlpool Side Assembly Complete
15Back, Control
16Cover, Top Rear
17WP112432 Whirlpool Nut Assembly
18WP4449809 Whirlpool Screw
18Cover, Top Front
19WP8203546 Whirlpool Terminal Block
19Screw
