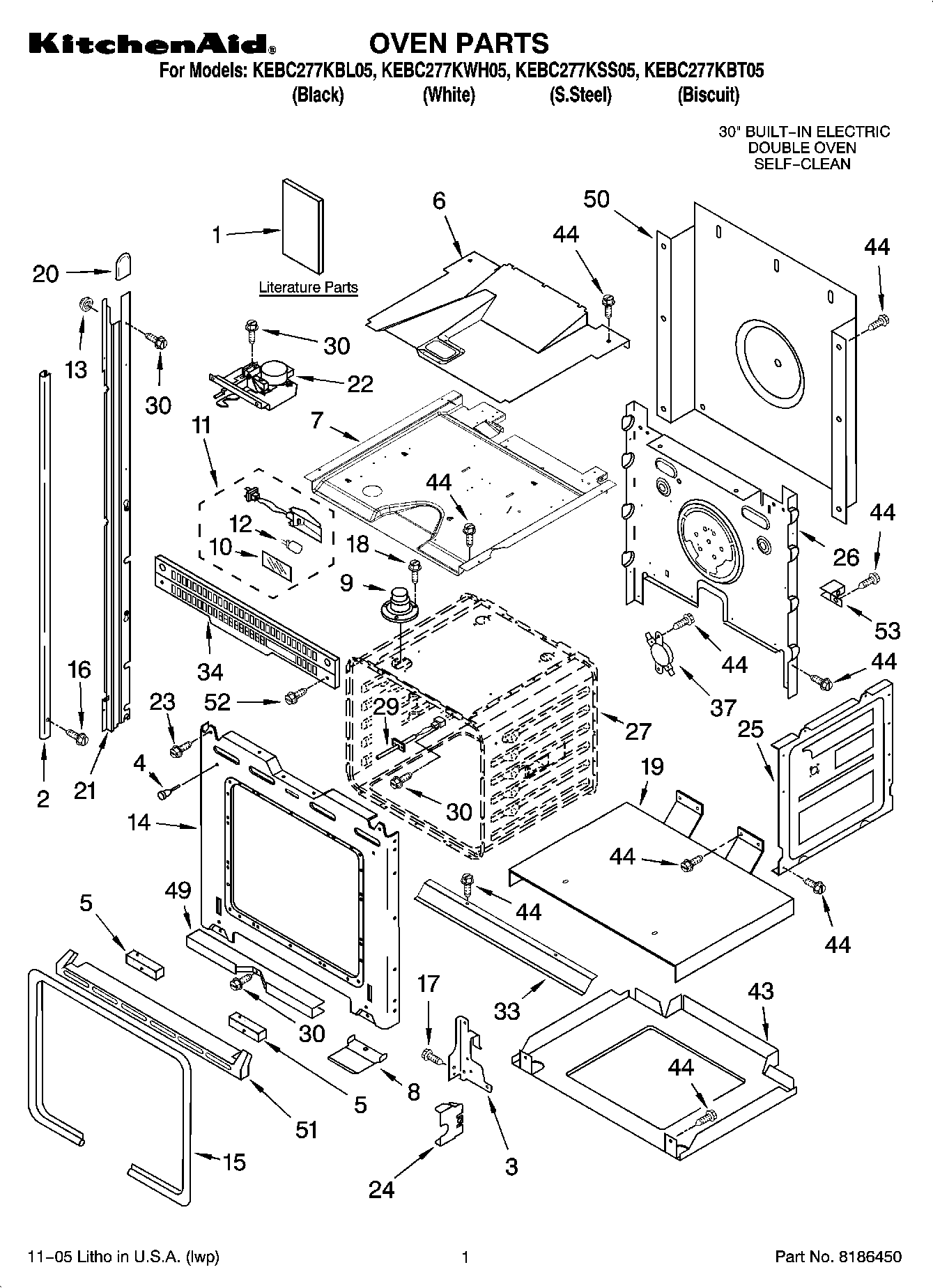

KEBC277KSS05 01 – OVEN PARTS

KEBC277KSS05 01 – OVEN PARTS

Written by

in

KEBC277KSS05 01 – OVEN PARTS

Products

PositionProduct
1Safe Cooking Tips
1Tech Sheet
1Installation Instructions
1Installation Instructions (Bottom Trim)
1Owners Manual
1Easy Set Guide
1Safe Cooking Tips (French)
2Trim, Side (Stainless Steel)
2Trim, Side (Stainless Steel)
2WP4455426 Whirlpool Trim
2Trim, Side Left (White)
2Trim, Side Right (White)
2Trim, Side (LH Black)
2Trim, Side (LH Biscuit)
2Trim, Side (RH Biscuit)
3WP4455606 Whirlpool Right Hand Hinge
3WP4455605 Whirlpool Left Hand Hinge
44448520 Whirlpool Oven Bumper
5Spacer, Foam
6Divider, Vent
7Top, Chassis
84455807 Whirlpool Oven Vent Deflector
9W10861715 Whirlpool Vent Tube
10Lens, Light
11WP4448972 Whirlpool Oven Light
12WP4452164 Whirlpool 12V 5W Halogen Light Bulb
13WP4448444 Whirlpool Grommet
14Frame, Front
15WP4455381 Whirlpool Door Gasket
16WP8281236 Whirlpool Screw
17WP4449743 Whirlpool Screw
18SCREW
19Support, Insulation
20Cap, Spacer
21814373 Whirlpool Oven Rail Mount
21814374 Whirlpool Oven Rail Mount
22WP9760889 Whirlpool Door Latch
23Screw
244452152 Whirlpool Oven Mounting Bracket
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (Not serviceable)
29WPW10131825 Whirlpool Oven Temperature Sensor
30WP4449154 Whirlpool Screw
33Deflector, Vent
34Vent, Center
37WP9759242 Whirlpool Thermostat
43Base, Chassis
44WP4449809 Whirlpool Screw
49WP4448933 Whirlpool Retainer
50WP4451747 Whirlpool Rear Cover
51Trim, Bottom (White)
51Trim, Bottom (Black)
51WPL 4455146
51WPL 4455446
52WP3400832 Whirlpool Screw
53WPL 4449315
53WPL 4449845
53WPL 4450364
53FOLLOWING PARTS NOT ILLUSTRATED INSU
