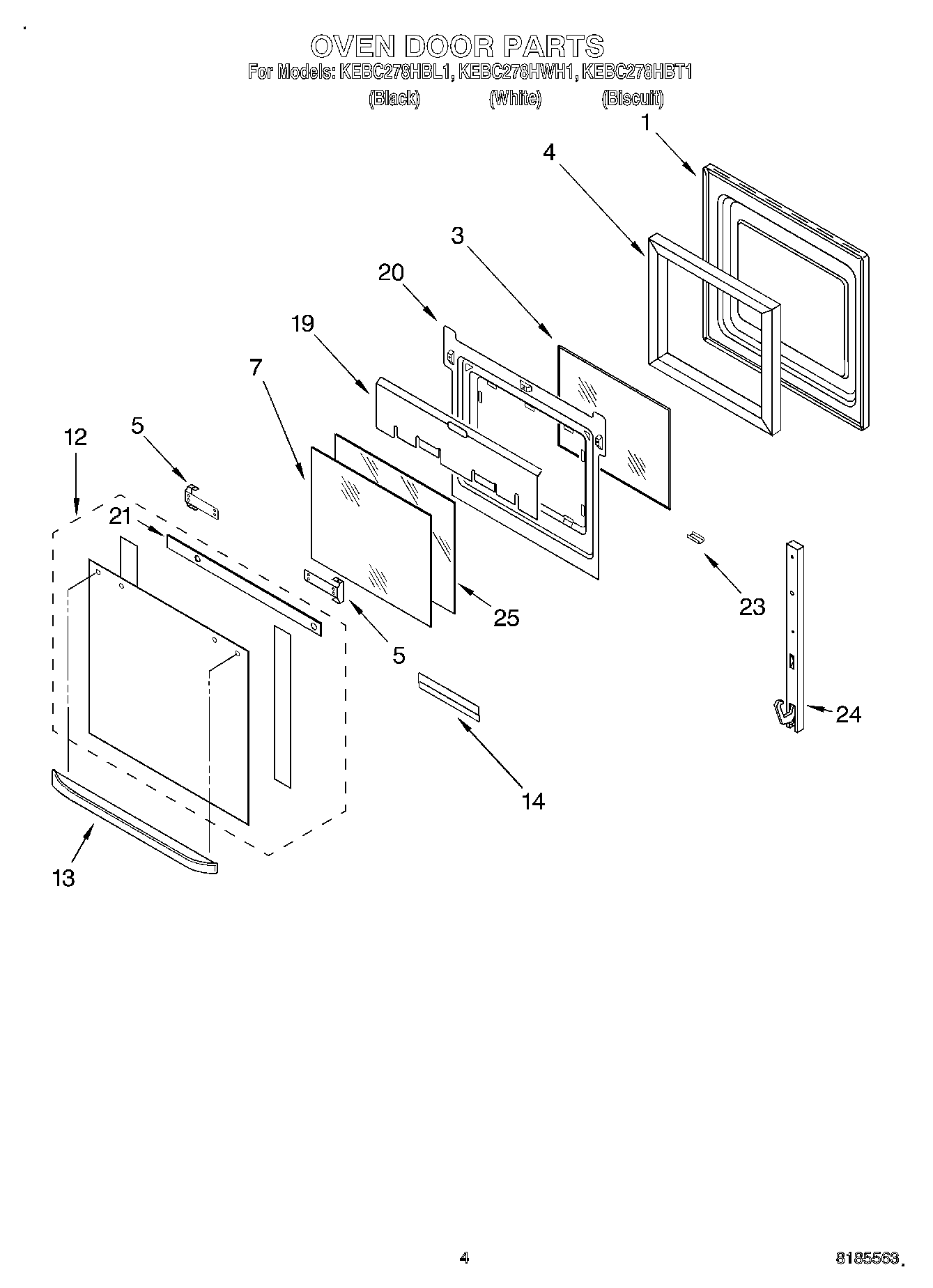

KEBC278HBL1 03 – OVEN DOOR

Products

Position	Product
1	Door Liner
3	WP4449253 Whirlpool Glass Window
4	Insulation, Sides
5	Screw
5	4455803 Whirlpool Oven Bracket
5	Bracket, Handle Stainless Steel Model (Left Hand)
7	WP4449257 Whirlpool Door Glass
12	Door Glass, Assy (Biscuit)
12	Glass, Outer (White)
12	Glass, Outer (Black)
13	Handle, Door (Biscuit)
13	Handle, Door (White)
13	Handle, Door (Black)
14	Retainer, Glass
19	Shield, Heat
20	Retainer, Glass
20	WP4449809 Whirlpool Screw
21	Seal, Top
23	RETAINER,GLASS CLIP (BISCUIT)
23	Clip, Retainer (White Model)
23	Clip, Retainer (Black Model)
24	WP4449743 Whirlpool Screw
24	WP4455525 Whirlpool Oven Door Hinge
25	Glass, Inner
