KEBC278HBT1 02 – CONTROL PANEL

KEBC278HBT1 02 – CONTROL PANEL

Written by

in

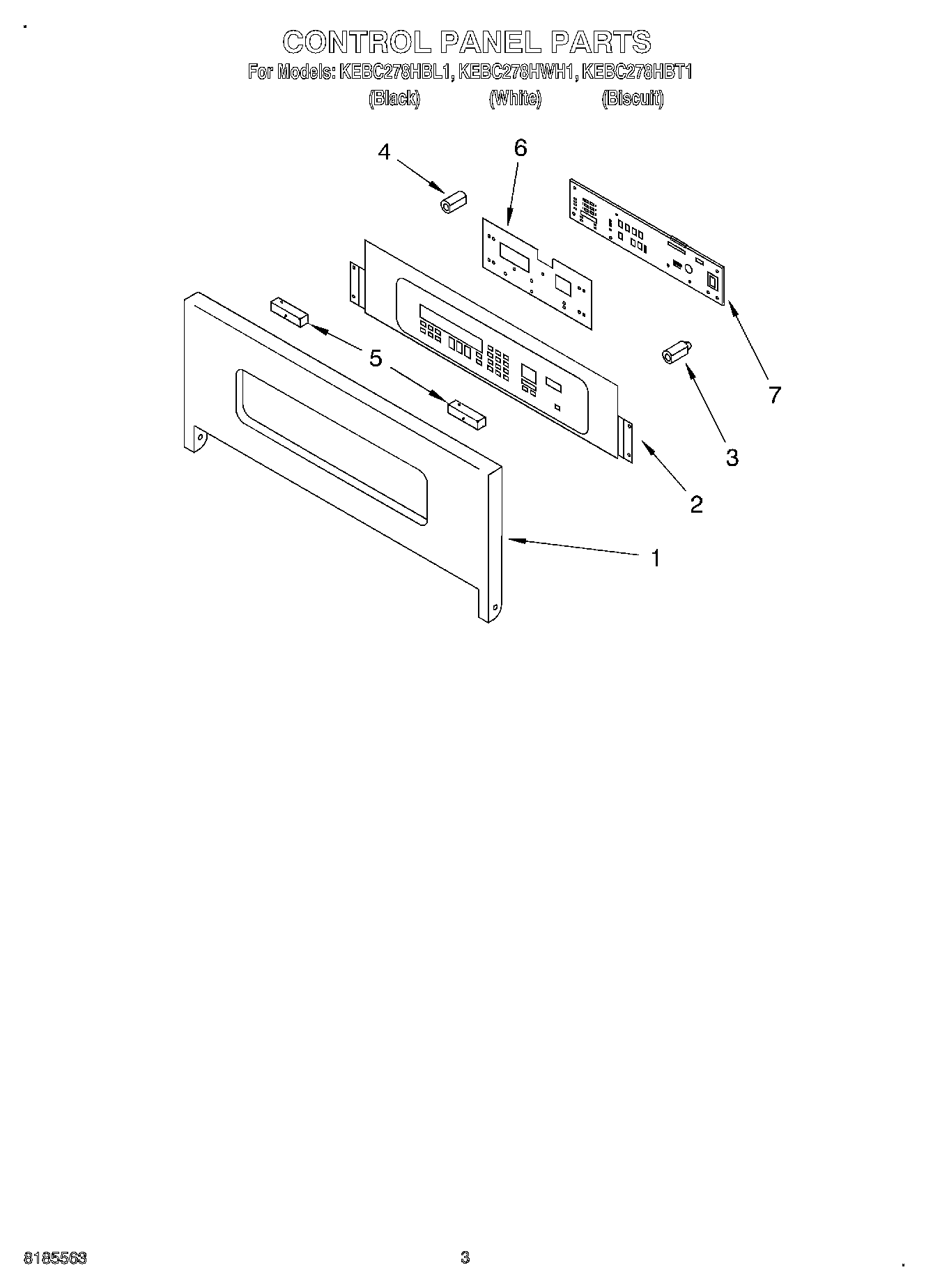

KEBC278HBT1 02 – CONTROL PANEL

Products

PositionProduct
1Panel, Control (Biscuit)
1Panel, Control (Black)
1Panel, Control (White)
2Switch, Membrane (White)
2Switch, Membrane (Black)
2Switch, Membrane (Biscuit)
3Insulation, Board
4WP3400832 Whirlpool Screw
4Insulation, Board Support
5Spacer, Foam
6Insulator, Dialectric
7Screw
7Microcomputer
