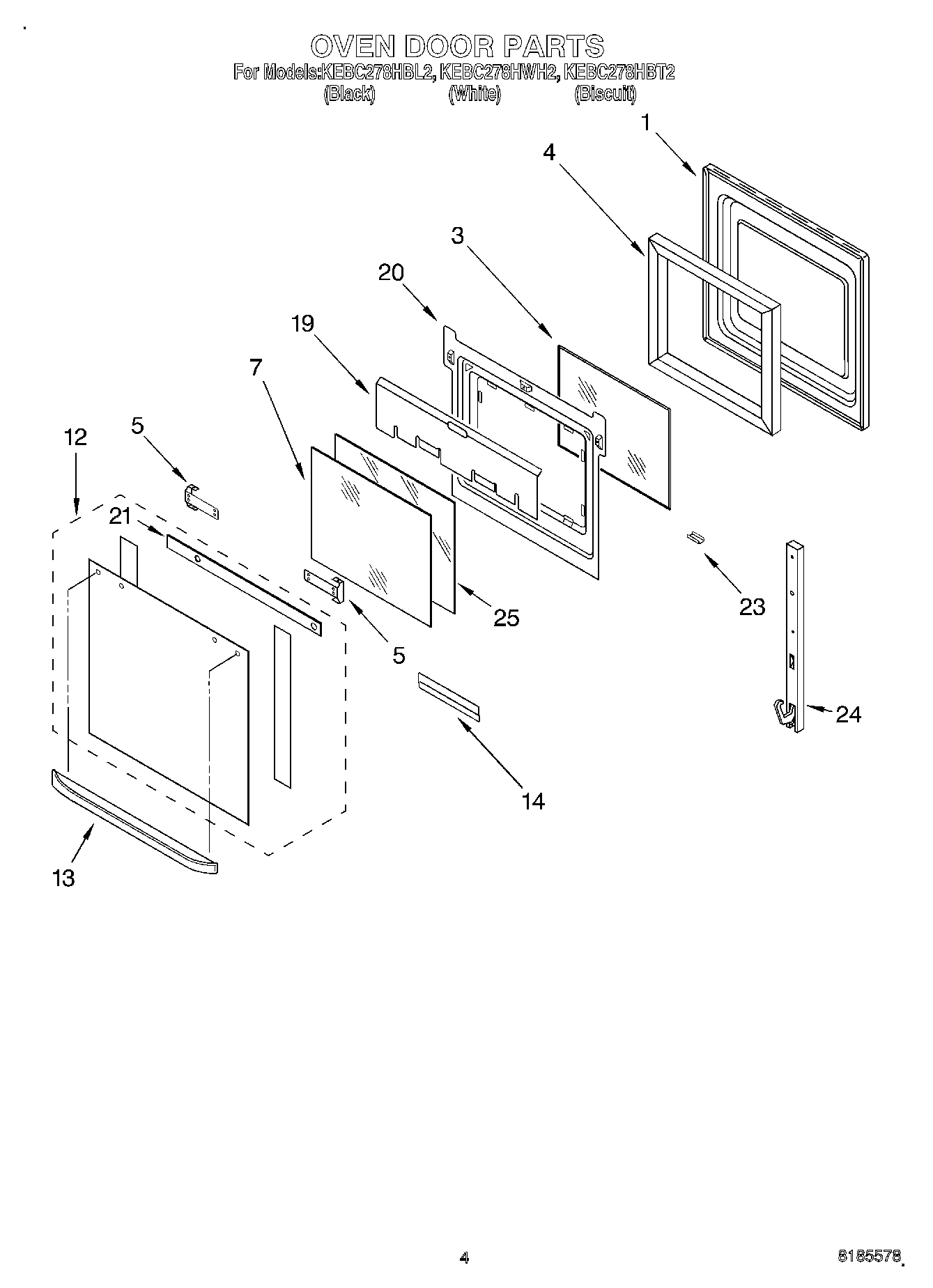

KEBC278HBT2 03 – OVEN DOOR

KEBC278HBT2 03 – OVEN DOOR

Written by

in

KEBC278HBT2 03 – OVEN DOOR

Products

PositionProduct
1Door Liner
3WP4449253 Whirlpool Glass Window
4Insulation, Sides
5Bracket, Handle (L.Hand)
5WPW10132940 Whirlpool Dishwasher Screw
54455803 Whirlpool Oven Bracket
7WP4449257 Whirlpool Door Glass
12Door Glass, Assy (Biscuit)
12Glass, Outer (Black)
12Glass, Outer (White)
13Handle, Door (Biscuit)
13Handle, Door (White)
13Handle, Door (Black)
14Retainer, Glass
19Shield, Heat
20WP4449809 Whirlpool Screw
20Retainer, Glass
21Seal, Top
23RETAINER,GLASS CLIP (BISCUIT)
23Clip, Retainer (White Model)
23Clip, Retainer (Black Model)
24WP4449743 Whirlpool Screw
24WP4455525 Whirlpool Oven Door Hinge
25Glass, Inner
