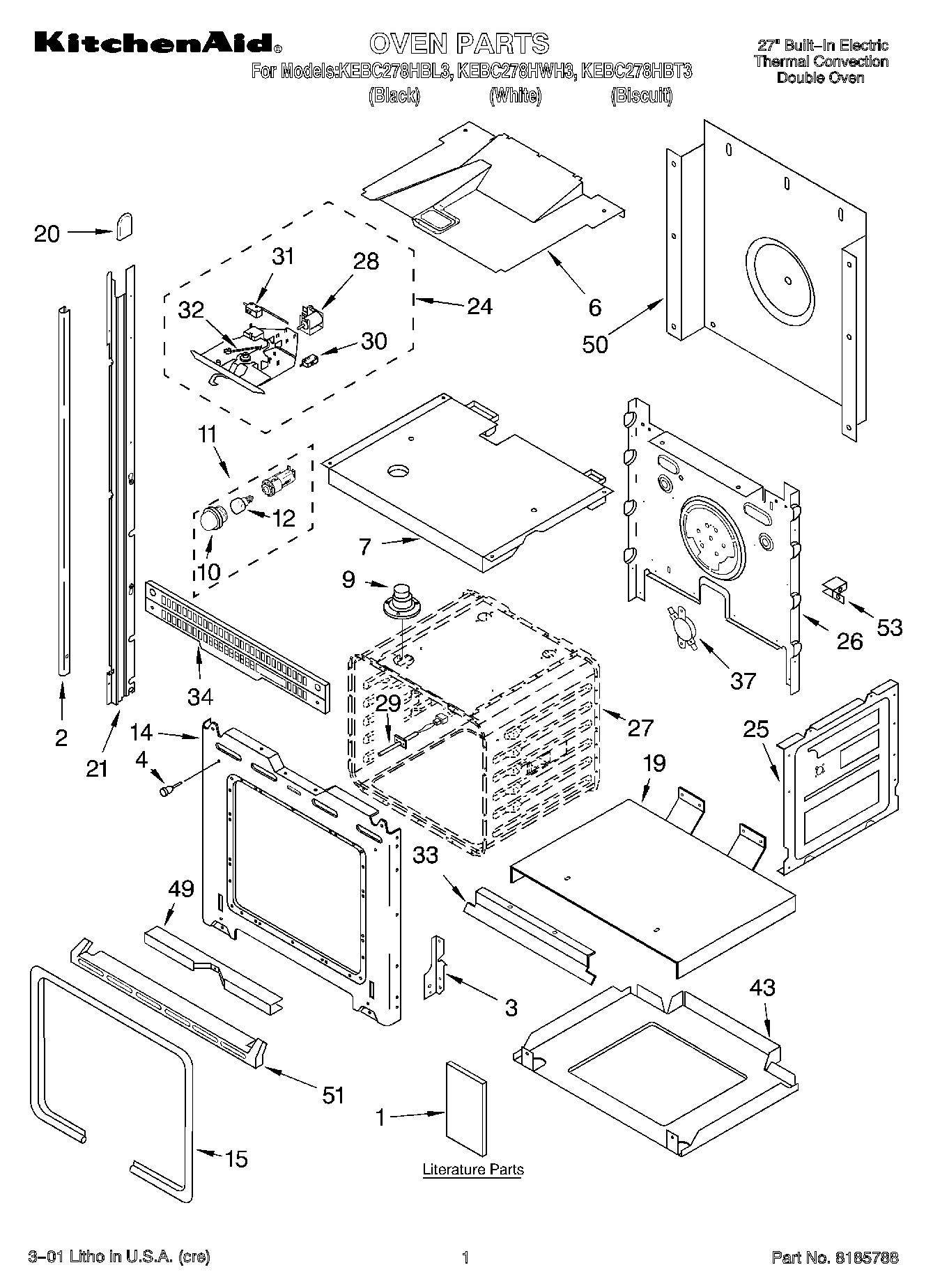

KEBC278HBT3 01 – OVEN, LITERATURE

Products

Position	Product
1	Safer Cooking Tips
1	Literature Parts (Cookbook (T/C Oven))
1	Literature Parts (Use & Care Guide)
1	Literature Parts (Tech Sheet (Oven))
1	Literature Parts (Installation Instructions)
1	Literature Parts (Easy Set Guide)
2	Trim, Side Left (White)
2	WP4455426 Whirlpool Trim
2	Trim, Side Right (White)
2	Trim, Side (RH Biscuit)
2	Trim, Side (LH Biscuit)
2	Trim, Side (White)
2	WP8281236 Whirlpool Screw
2	Trim, Side (LH Black)
3	Reciever, Hinge (Left Hand)
3	Reciever, Hinge (Right Hand)
4	4448520 Whirlpool Oven Bumper
6	Divider, Vent
7	Top, Chassis
9	SCREW
9	W10861715 Whirlpool Vent Tube
10	Lens, Light
11	4449748 Whirlpool Oven Screw
11	WP4448972 Whirlpool Oven Light
12	WP4173175 Whirlpool Light Bulb
14	Frame, Front
14	Screw
14	WP4450118 Whirlpool Nut
15	WP4455381 Whirlpool Door Gasket
19	Support, Insulation
20	Cap, Spacer
21	814374 Whirlpool Oven Rail Mount
21	814373 Whirlpool Oven Rail Mount
21	WP4448444 Whirlpool Grommet
24	Latch Assembly
25	W10782197 Whirlpool Side Panel
26	Back, Chassis
27	Liner, Oven (Not serviceable)
28	Solenoid
29	WPW10131825 Whirlpool Oven Temperature Sensor
30	Microswitch N.C.
31	Microswitch
32	Spring, Latch
33	Deflector, Vent
34	Vent, Center
37	WP9759242 Whirlpool Thermostat
43	Base, Chassis
49	WP4448933 Whirlpool Retainer
49	WP4449154 Whirlpool Screw
50	WP4451747 Whirlpool Rear Cover
51	WPL 4455446
51	Trim, Bottom (White)
51	Trim, Bottom (Black)
51	WP3400832 Whirlpool Screw
51	4452152 Whirlpool Oven Mounting Bracket
53	WP4449809 Whirlpool Screw
53	WPL 4450364
53	WPL 4449315
53	WPL 4449845
