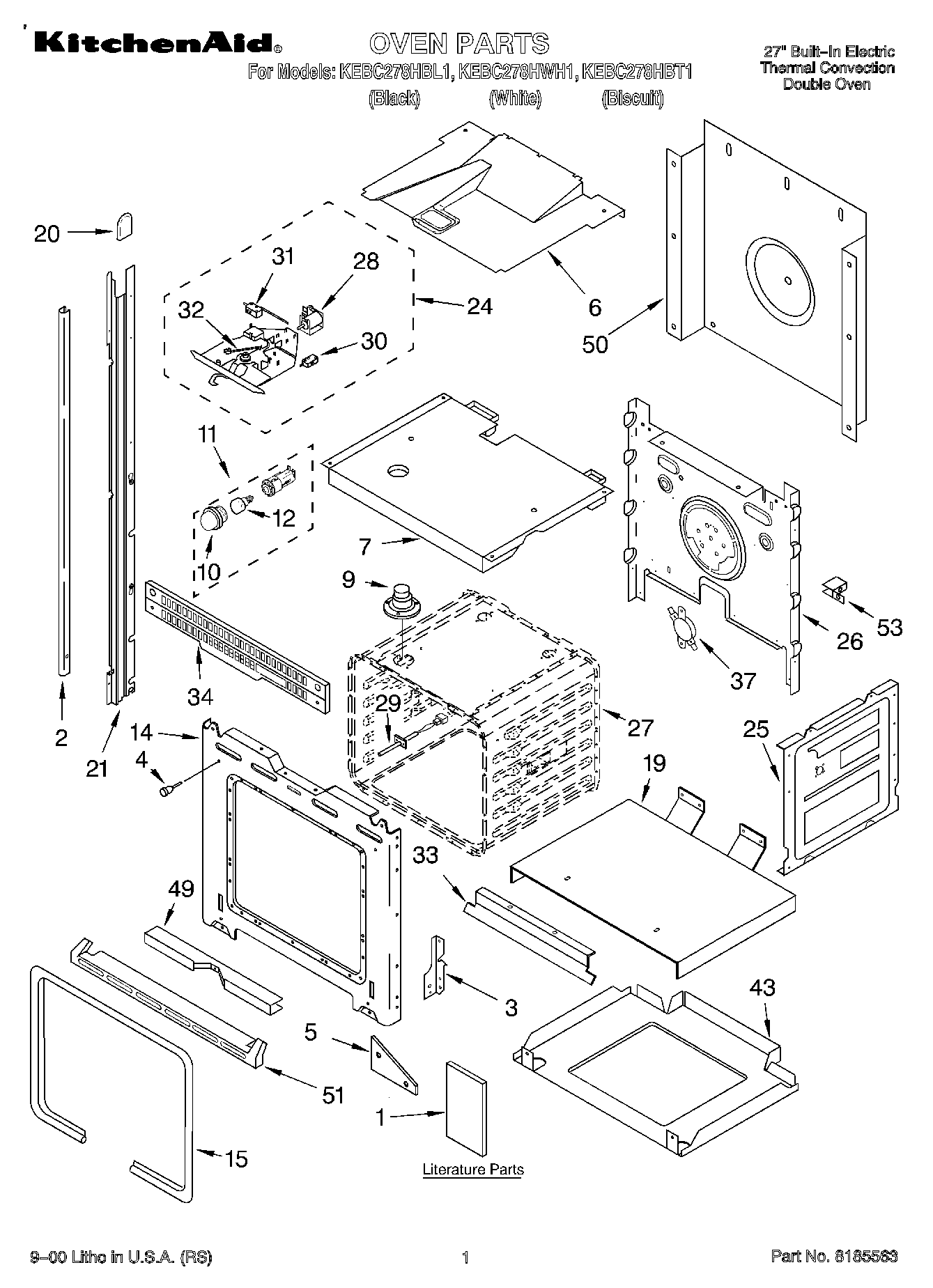

KEBC278HWH1 01 – OVEN, LITERATURE

Products

Position	Product
1	Safer Cooking Tips
1	Literature Parts (Easy Set Guide)
1	Literature Parts (Installation Instructions)
1	Literature Parts (Tech Sheet (Oven))
1	Literature Parts (Use & Care Guide)
1	Literature Parts (Cookbook (T/C Oven))
2	Trim, Side Right (White)
2	Trim, Side (LH Black)
2	Trim, Side (LH Biscuit)
2	Trim, Side (RH Biscuit)
2	Trim, Side Left (White)
2	WP8281236 Whirlpool Screw
2	WP4455426 Whirlpool Trim
2	Trim, Side (White)
3	Reciever, Hinge (Left Hand)
3	Reciever, Hinge (Right Hand)
4	4448520 Whirlpool Oven Bumper
5	WP4455509 Whirlpool Support Bracket
6	Divider, Vent
7	Top, Chassis
9	W10861715 Whirlpool Vent Tube
10	Lens, Light
11	WP4448972 Whirlpool Oven Light
12	WP4173175 Whirlpool Light Bulb
14	Frame, Front
14	WP4450118 Whirlpool Nut
14	Screw
15	WP4455381 Whirlpool Door Gasket
19	Support, Insulation
20	Cap, Spacer
21	814374 Whirlpool Oven Rail Mount
21	814373 Whirlpool Oven Rail Mount
21	WP4448444 Whirlpool Grommet
24	Latch Assembly
25	Side, Chassis (R.H. & L.H.)
26	Back, Chassis
27	Liner, Oven (Not a Serviceable Part)
28	Solenoid
29	WPW10131825 Whirlpool Oven Temperature Sensor
30	Microswitch N.C.
31	Microswitch
32	Spring, Latch
33	Deflector, Vent
34	Vent, Center
37	WP9759242 Whirlpool Thermostat
43	Base, Chassis
49	WP4448933 Whirlpool Retainer
49	WP4449154 Whirlpool Screw
50	WP4451747 Whirlpool Rear Cover
51	4452152 Whirlpool Oven Mounting Bracket
51	Trim, Bottom (White)
51	Trim, Bottom (Black)
51	WP3400832 Whirlpool Screw
51	WPL 4455446
53	WPL 4449845
53	WP4449809 Whirlpool Screw
53	WPL 4449315
53	WPL 4450364
