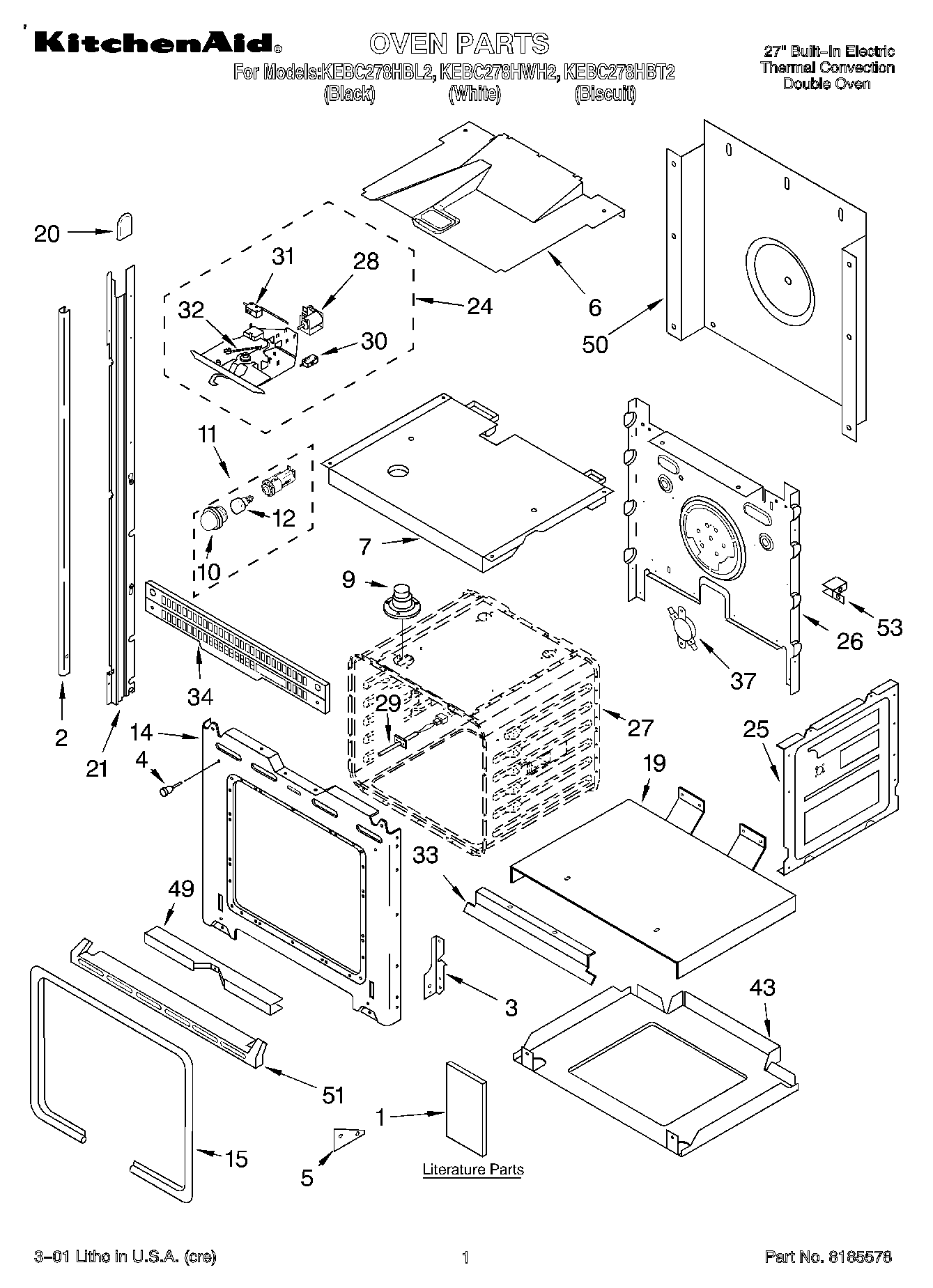

KEBC278HWH2 01 – OVEN, LITERATURE

Products

PositionProduct
1Safer Cooking Tips
1Literature Parts (Easy Set Guide)
1Literature Parts (Installation Instructions)
1Literature Parts (Tech Sheet (Oven))
1Literature Parts (Cookbook (T/C Oven))
1Literature Parts (Use & Care Guide)
2Trim, Side (RH Biscuit)
2Trim, Side Right (White)
2WP4455426 Whirlpool Trim
2Trim, Side Left (White)
2Trim, Side (LH Biscuit)
2Trim, Side (White)
2WP8281236 Whirlpool Screw
2Trim, Side (LH Black)
3Reciever, Hinge (Left Hand)
3Reciever, Hinge (Right Hand)
44448520 Whirlpool Oven Bumper
5WP4455509 Whirlpool Support Bracket
6Divider, Vent
7Top, Chassis
9W10861715 Whirlpool Vent Tube
9SCREW
10Lens, Light
11WP4448972 Whirlpool Oven Light
114449748 Whirlpool Oven Screw
12WP4173175 Whirlpool Light Bulb
14Screw
14Frame, Front
14WP4450118 Whirlpool Nut
15WP4455381 Whirlpool Door Gasket
19Support, Insulation
20Cap, Spacer
21814374 Whirlpool Oven Rail Mount
21814373 Whirlpool Oven Rail Mount
21WP4448444 Whirlpool Grommet
24Latch Assembly
25Side, Chassis (R.H. & L.H.)
26Back, Chassis
27Liner, Oven (Not a Serviceable Part)
28Solenoid
29WPW10131825 Whirlpool Oven Temperature Sensor
30Microswitch N.C.
31Microswitch
32Spring, Latch
33Deflector, Vent
34Vent, Center
37WP9759242 Whirlpool Thermostat
43Base, Chassis
49WP4448933 Whirlpool Retainer
49WP4449154 Whirlpool Screw
50WP4451747 Whirlpool Rear Cover
51WPL 4455446
514452152 Whirlpool Oven Mounting Bracket
51WP3400832 Whirlpool Screw
51Trim, Bottom (Black)
51Trim, Bottom (White)
53WPL 4449845
53WPL 4450364
53WP4449809 Whirlpool Screw
53WPL 4449315
