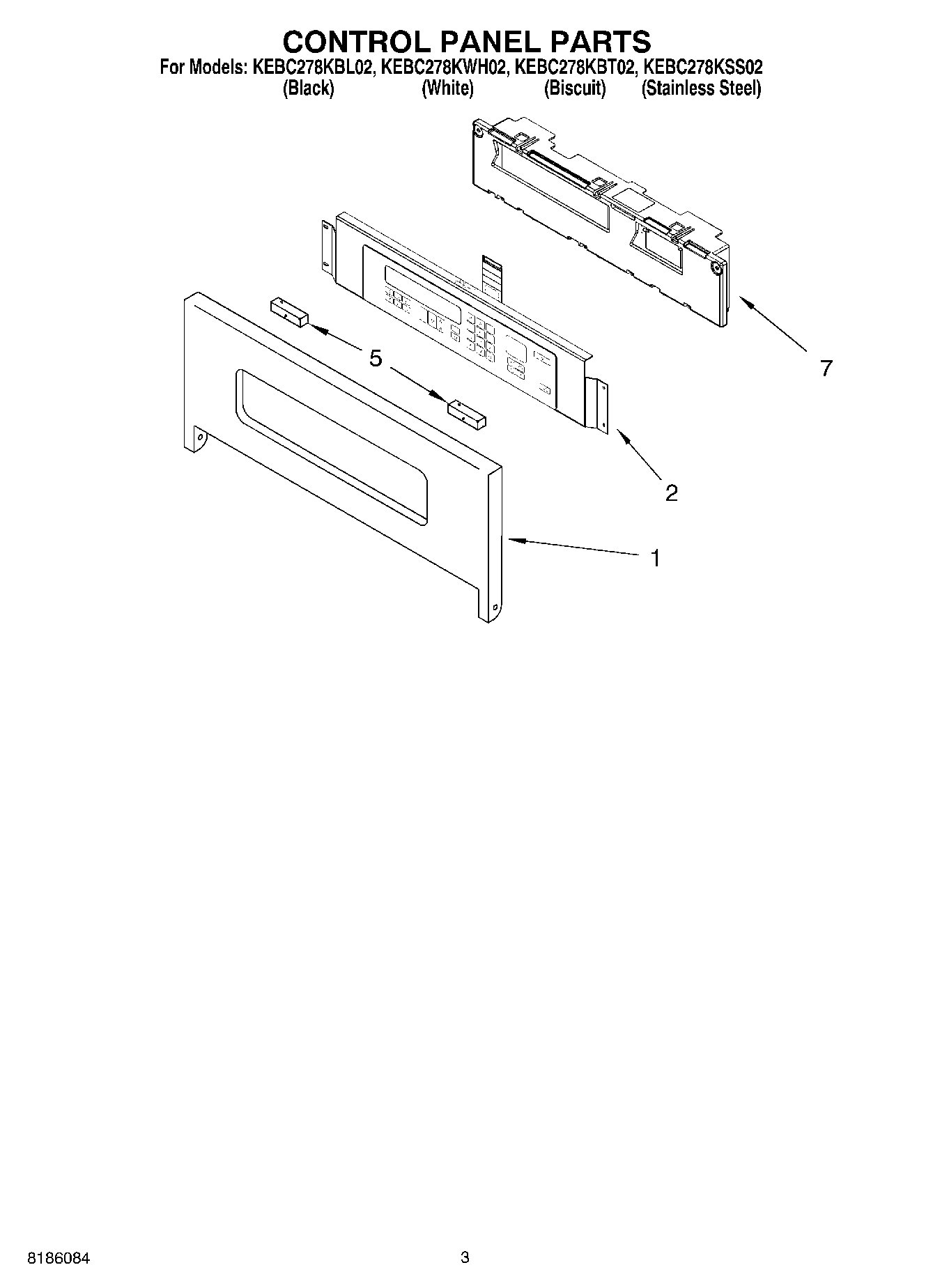

KEBC278KBL02 02 – CONTROL PANEL PARTS

KEBC278KBL02 02 – CONTROL PANEL PARTS

Written by

in

KEBC278KBL02 02 – CONTROL PANEL PARTS

Products

PositionProduct
NOTE: The screws and nuts required to attach a part are listed immediately following that part.
1Panel, Control
1Panel, Control (Biscuit)
1Panel, Control (White)
1Panel, Control (Black)
2Switch, Membrane (Black)
2Switch, Membrane (White)
2Switch, Membrane (Biscuit)
2Switch, Membrane (Stainless Steel)
5Spacer, Foam
7WP4449745 Whirlpool Screw
7Assy, Control
7Latch, Sister Board
