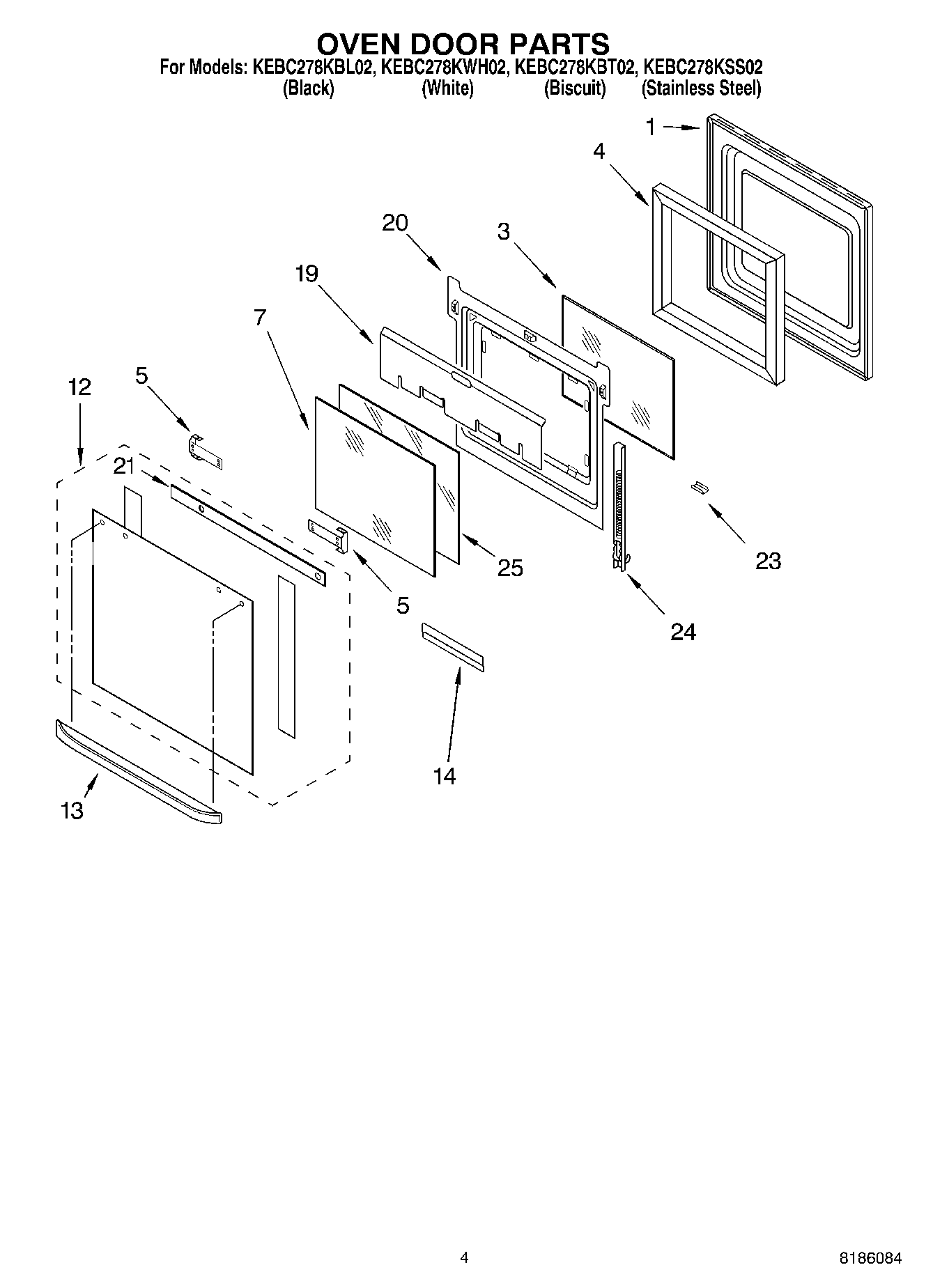

KEBC278KBL02 03 – OVEN DOOR PARTS

Products

Position	Product
	NOTE: The screws and nuts required to attach a part are listed immediately following that part.
1	Door Liner
3	WP4449253 Whirlpool Glass Window
4	Insulation, Sides
5	Bracket, Handle (L.Hand)
5	WPW10132940 Whirlpool Dishwasher Screw
5	Bracket, Handle Stainless Steel Model (Left Hand)
5	4455803 Whirlpool Oven Bracket
7	WP4449257 Whirlpool Door Glass
12	Glass, Outer (White)
12	Glass, Outer (Black)
12	Door Glass, Assy (Biscuit)
12	WP4452315 Whirlpool Door Glass
13	Door Handle (Stainless Steel)
13	Handle, Door (Biscuit)
13	Handle, Door (White)
13	Handle, Door (Black)
14	Retainer, Glass
19	Shield, Heat
20	WP4449809 Whirlpool Screw
20	Retainer, Glass
21	Seal, Top
23	Clip, Retainer (White Model)
23	RETAINER,GLASS CLIP (BISCUIT)
23	Clip, Retainer (Black Model)
23	Retainer, Glass-Clip (Stainless Steel)
24	HINGE-DOOR
24	HINGE-DOOR LH/SS DOOR SPRING
24	WP9760571 Whirlpool Door Hinge
24	WP9760572 Whirlpool Door Hinge
24	WP4449743 Whirlpool Screw
25	Glass. Inner
