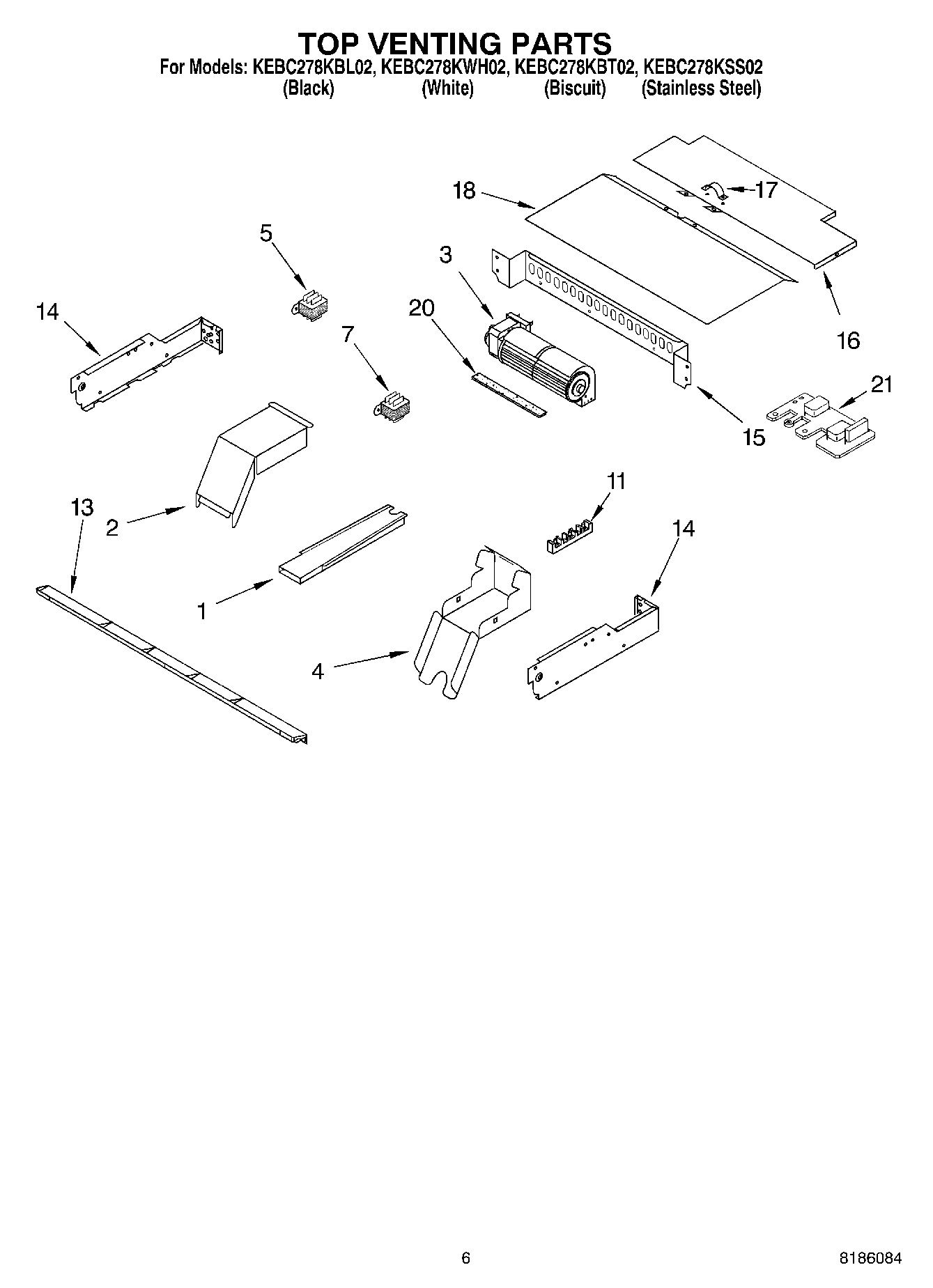

KEBC278KBL02 05 – TOP VENTING PARTS, OPTIONAL PARTS

KEBC278KBL02 05 – TOP VENTING PARTS, OPTIONAL PARTS

Written by

in

KEBC278KBL02 05 – TOP VENTING PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI82585A6
18 Ga. 80~c Rating (Red)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
WP261869 Whirlpool Microwave Paint
242831 Whirlpool Oven Wire
Wire (14 Ga. 200 c Brown)
1
WPL ARI82584A4
WPL ARI82583A1
WPL ARI82582A2
WPL 8301871
8301909 Whirlpool Oven Wire Harness
WPL ARI82586A9
261900 Whirlpool Microwave Spray
4451761 Whirlpool Oven Support Bracket
WPL 591014
Spacer, Harness
4452400 Whirlpool Microwave Wire Harness
285006 Whirlpool Spray
WPW10339879 Whirlpool Wire Tie
WP4449809 Whirlpool Screw
WP112432 Whirlpool Nut Assembly
4450800 Whirlpool Oven Screw
Wire, 25` Roll (Black 14 Ga.)
Wire, 25` Roll (Red 14 Ga.)
Wire, 25“ Roll (White 14 GA.)
4448664 Whirlpool Oven Mounting Bracket
72032 Whirlpool Touch Up Paint Black
WP482338 Whirlpool Refrigerator Adhesive
72017 Whirlpool Appliance Touch-Up Paint White
Conduit, Double
814381 Whirlpool Pin
WP4448950 Whirlpool Screw
350930 Whirlpool White Spray Paint
14451759 Whirlpool Oven Exhaust Vent
24455178 Whirlpool Oven Top Elbow
3Blower
3WPW10016550 Whirlpool Blower Cooling Fan
3WP4455352 Whirlpool Mounting Bracket
44455177 Whirlpool Oven Bottom Elbow
5Transformer, Control
7WP9760588 Whirlpool Transformer
11WP8203546 Whirlpool Terminal Block
11Screw
13WP3400832 Whirlpool Screw
13Vent, (Control Panel)
14WP4449154 Whirlpool Screw
14W10755214 Whirlpool Side Complete
14W10790240 Whirlpool Side Assembly Complete
15Back, Control
16Cover, Top Rear
18Cover, Top Front
20W10491987 Whirlpool Foam Seal
21WP4451985 Whirlpool Noise Filter Board
21Spacer, Foam
214455191 Whirlpool Oven Mounting Plate
