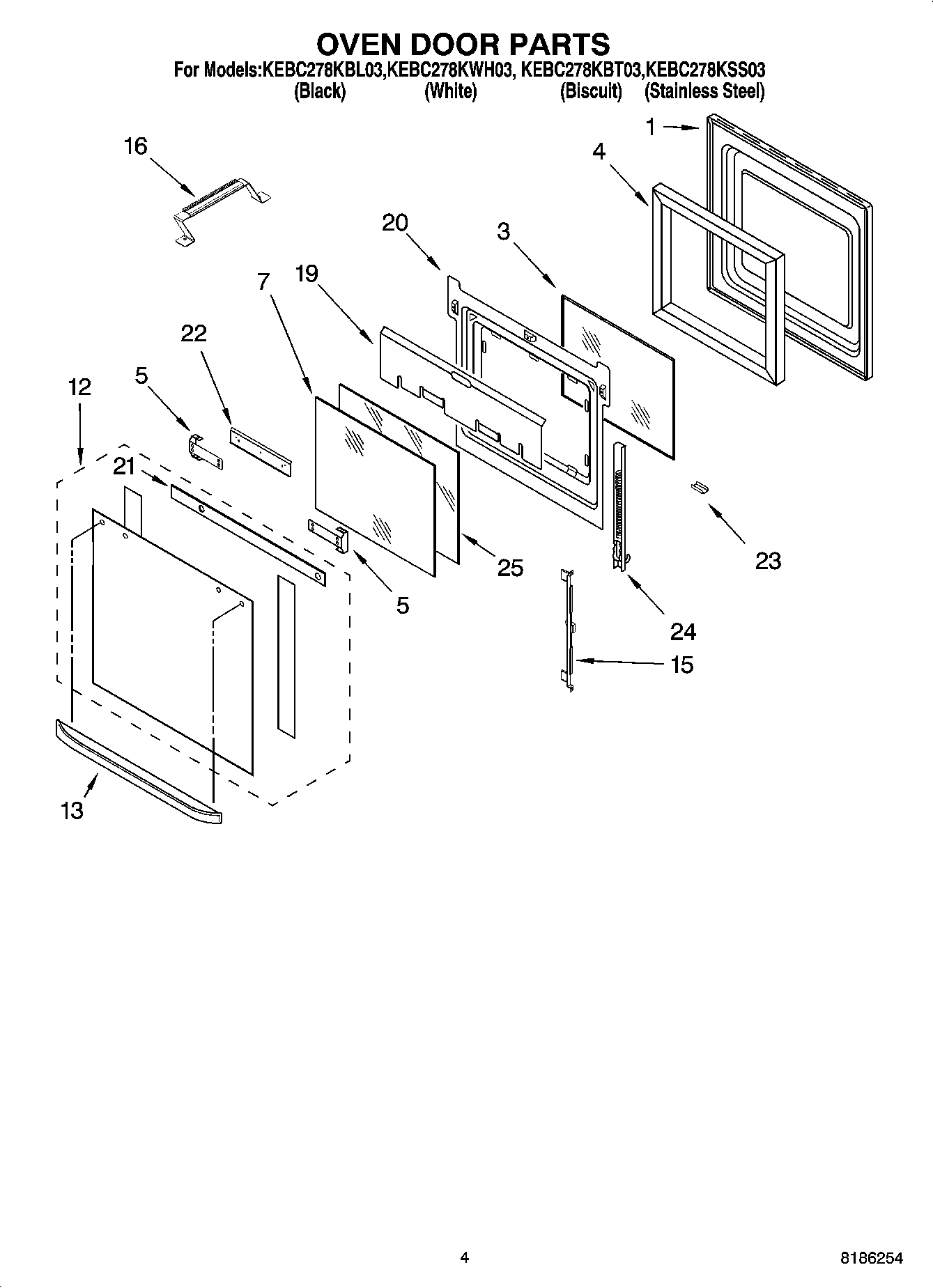

KEBC278KBT03 03 – OVEN DOOR PARTS

Products

Position	Product
1	Door Liner
3	WP4449253 Whirlpool Glass Window
4	Insulation, Sides
5	WPW10132940 Whirlpool Dishwasher Screw
5	4455803 Whirlpool Oven Bracket
5	Bracket, Handle (L.Hand)
7	Glass, Inner
12	Glass, Outer (White)
12	WP4452315 Whirlpool Door Glass
12	Glass, Outer (Black)
12	Door Glass, Assy (Biscuit)
13	Handle, Door (Biscuit)
13	Handle, Door (White)
13	Handle, Door (Black)
13	Door Handle (Stainless Steel)
15	WP9759229 Whirlpool Mounting Bracket
16	Bracket (3rd Glsss)
19	Shield, Heat
20	WP4449809 Whirlpool Screw
20	Retainer, Glass
21	Seal, Top
22	Shield, Heat (Bottom)
23	Retainer, Glass-Clip (Stainless Steel)
23	Clip, Retainer (Black Model)
23	Clip, Retainer (White Model)
23	RETAINER,GLASS CLIP (BISCUIT)
24	HINGE-DOOR
24	WP4449743 Whirlpool Screw
24	WP9760572 Whirlpool Door Hinge
24	WP9760571 Whirlpool Door Hinge
24	HINGE-DOOR LH/SS DOOR SPRING
25	WP9759227 Whirlpool Glass Door
